Doepfer A-126 VC Frequency Shifter (no longer available) - Manual

doepfer System A - 100 VC Frequency Shifter A-126
1
1. Introduction
Module A-126 (VCFS) is a voltage-controlled fre-
quency shifter.
The amount of frequency shift can be varied from
about 50 Hz up to 4 kHz, either manually, or by voltage
control (via an attenuator).
The amount of input signal gain can be controlled
with the Level knob.
The upward- (Up) and downward- (Down) shifted
signals are available at separate outputs, and also at
the Mix output, where a mix of the two frequency-
shifted signals is available, with the balance controlled
by a Mix knob.
The Audio Out socket provides an amplified but not
frequency-shifted version of the original input signal.

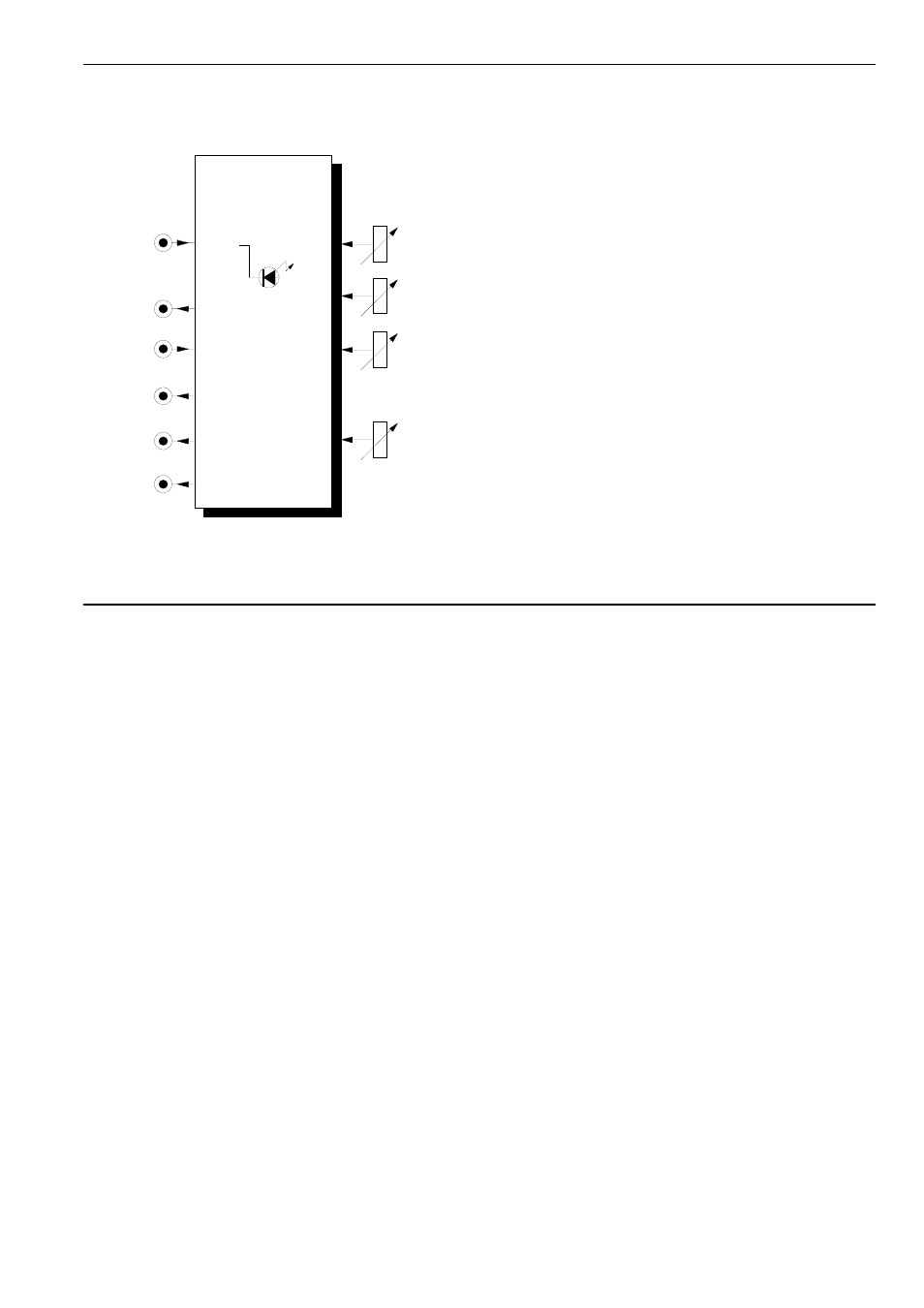

A-126
VC Frequ. Shifter
Level
CV
Mix
Down
Over-
load Shift
Up
CV
Mix
Audio
In
Audio
Out
