A-124, System a - 100, Vcf 5 - overview – Doepfer A-124 Wasp Filter User Manual
Page 2: Vcf 5, Doepfer, Wasp filter (vcf 5), Controls
A-124
Wasp Filter (VCF 5)
System A - 100
doepfer
2

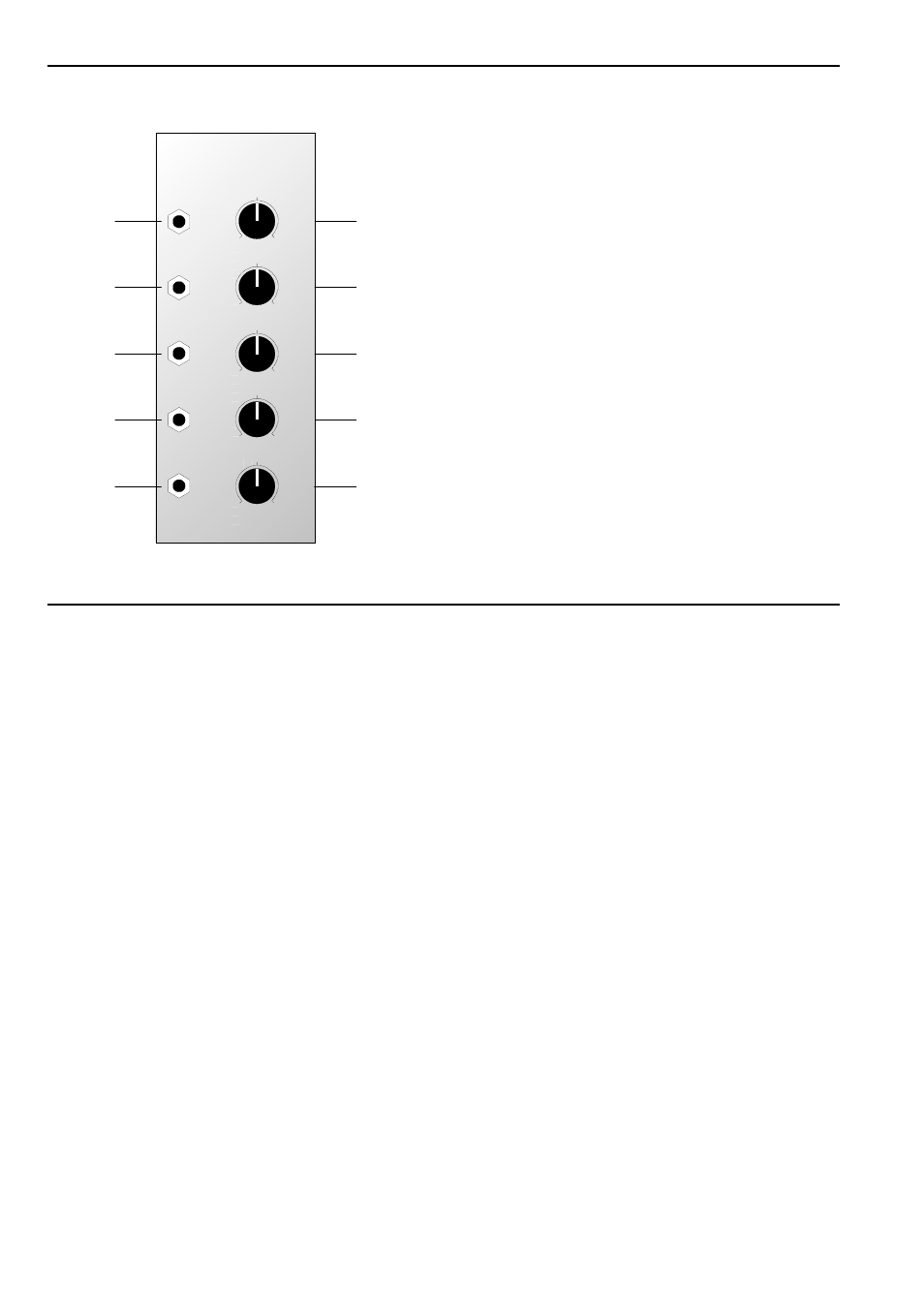

2. VCF 5 - Overview
Controls:
1
Audio Level : Input signal attenuator
2
Frq. :
Cut-off frequency control
3
CV 2 :
Attenuator for filter CV §
4
Res. :
Resonance control
5
Mix :
Control for relative amounts of low
and high pass signal
In / Outputs:
!
Audio In :
Audio input to the filter
"
CV 1 :
Cut-off frequency CV input
§
CV 2 :
ditto, level controlled by 3
$
BP Out :
Band-pass filter output
%
LP/HP Out : Mixed low-pass / high-pass filter out-
put
A-124
VCF 5
CV 1
CV 2
Audio In
Frq.
CV 2
Res.
Mix
Lev.
➀
➁
➂
➃
➄
WASP FILTER
0
10
0
10
0
10
0
10
LP
HP
LP/HP Out
BP Out
