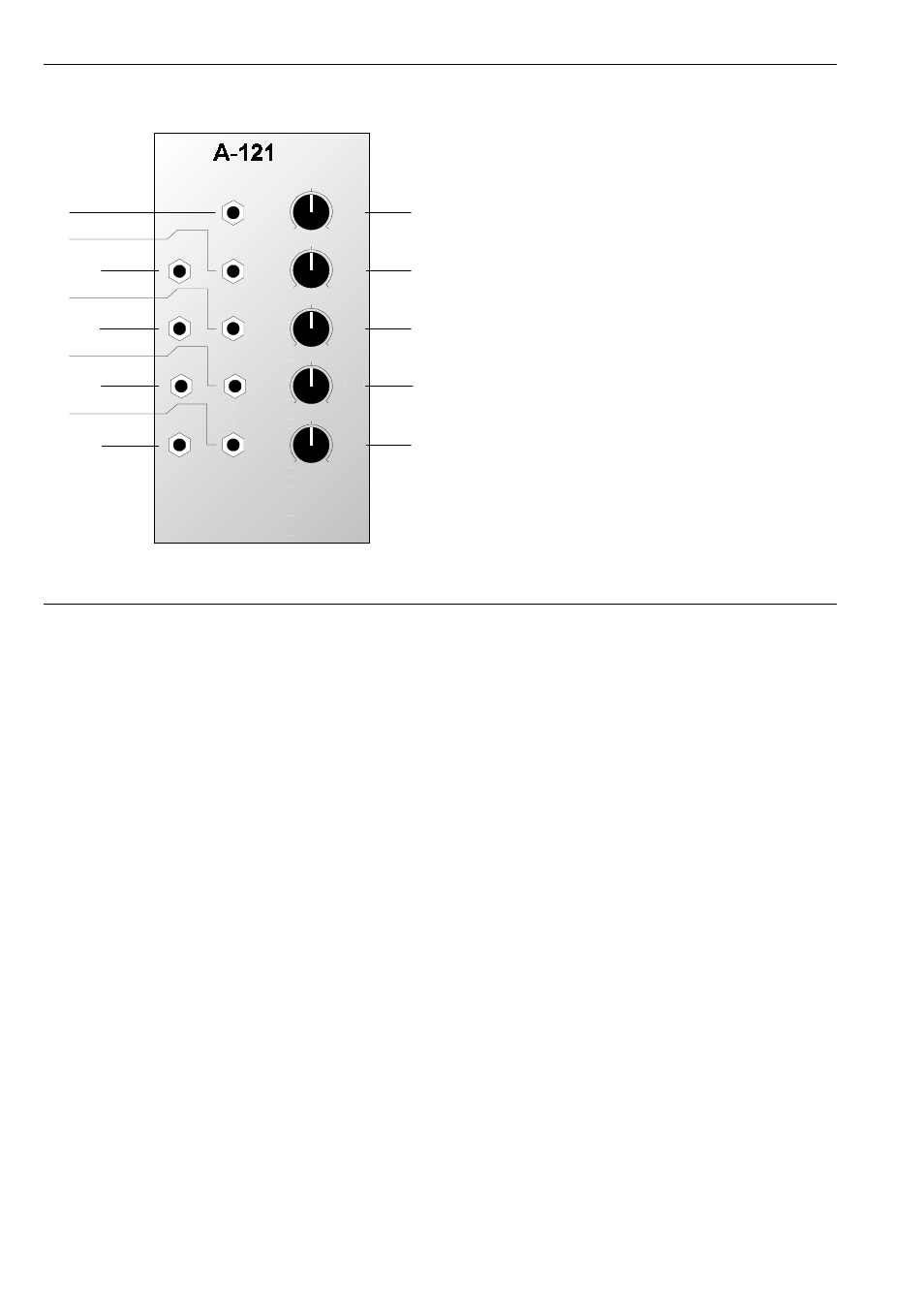

2. VCF 2 - Overview Controls:
1 Audio Level : Input signal attenuator
2 Freq. : Cut-off frequency control
3 FCV 2 : Attenuator for filter CV §
4 Res. : Resonance control
5 QCV 2 : Attenuator for resonance CV %
In / Outputs:
! Audio In : Audio input to the filter
" FCV 1 : Cut-off frequency CV input
§ FCV 2 : ditto, level controlled by 3
$ QCV 1 : Resonance CV input
% QCV 2 : ditto, level controlled by 5
& Low : Low-pass filter output
/ Band : Band-pass filter output
( High : High-pass filter output
) Notch : Notch filter output
