A-121
VCF 2
System A - 100
doepfer
10

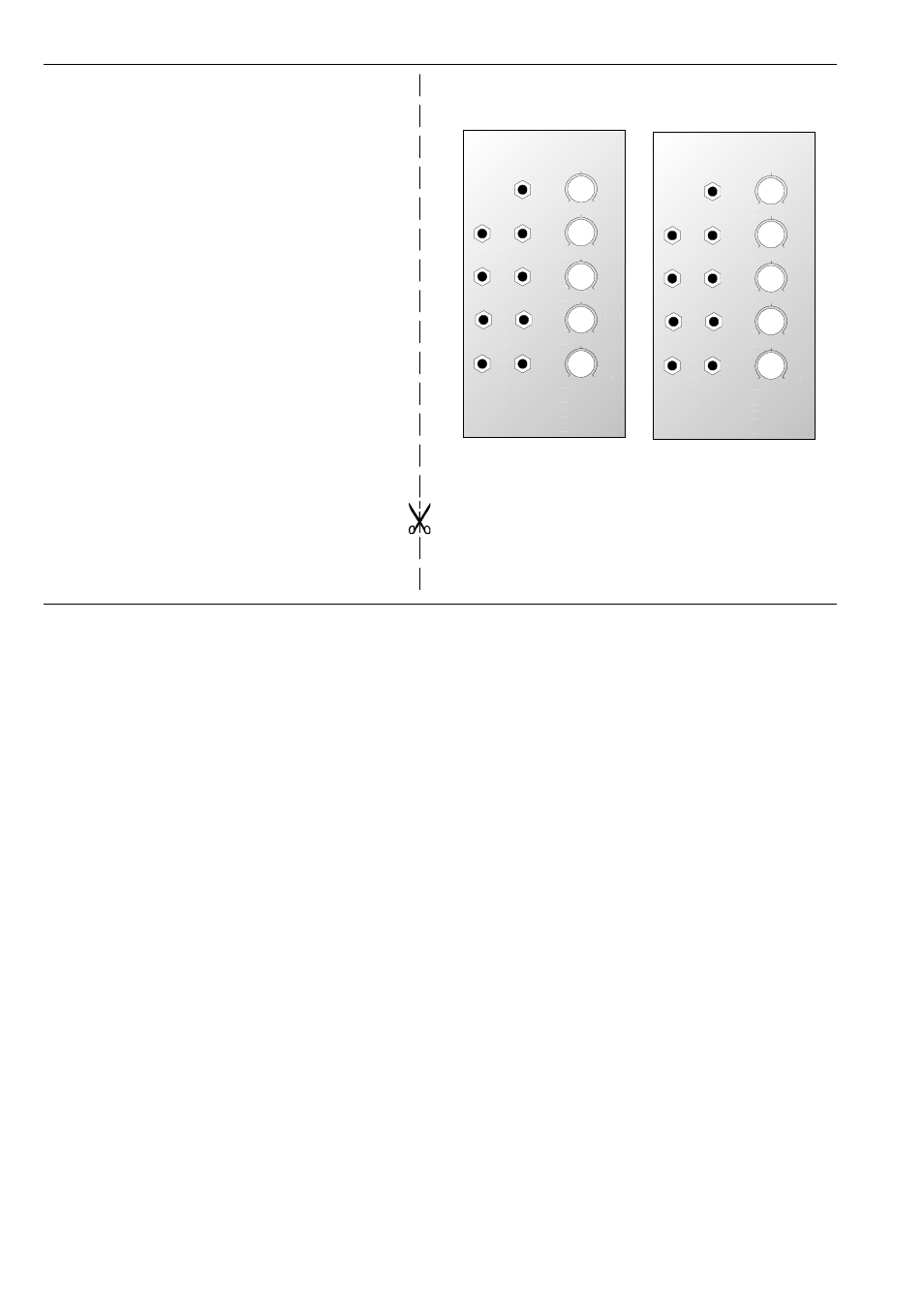

7. Patch-Sheet
The following diagrams of the module can help you
recall your own Patches. They’re designed so that
a complete 19” rack of modules will fit onto an A4
sheet of paper.
Photocopy this page, and cut out the pictures of
this and your other modules. You can then stick
them onto another piece of paper, and create a
diagram of your own system.
Make multiple copies of your composite diagram,
and use them for remembering good patches and
set-ups.
P
• Draw in patchleads with colored
pens.
• Draw or write control settings in the
little white circles.
A-121
VCF 2
FCV 1
FCV 2
QCV 1
Freq.
FCV 2
Res.
QCV 2
Audio In
QCV 2
0
10
0
10
0
10
0
10
MULTIMODE FILTER
0
10
Audio
Level
Low
Band
High
Notch
A-121
VCF 2
FCV 1
FCV 2
QCV 1
Freq.
FCV 2
Res.
QCV 2
Audio In
QCV 2
0
10
0
10
0
10
0
10
MULTIMODE FILTER
0
10
Audio
Level
Low
Band
High
Notch
