3. Controls
1 Display
This is the 2-digit LED display that shows the current
value of the divisor.
In addition the decimal points of the displays are
used to display the current mixture (see fig. 5):
• no decimal point is on: mixture "00"
• right decimal points are on: mixture "01"
• left decimal points are on: mixture "10"
• both decimal points are on: mixture "11"
The mixture selected depends upon the states of the
two gate inputs $ und % (see chapter 4).
2 Up • 3 Down
The Up button 2 resp. the Down button 3 are used to
adjust the divisor (range
01 01 01 01 to 24 24 24 24 ) for the correspon-
ding frequency divider.

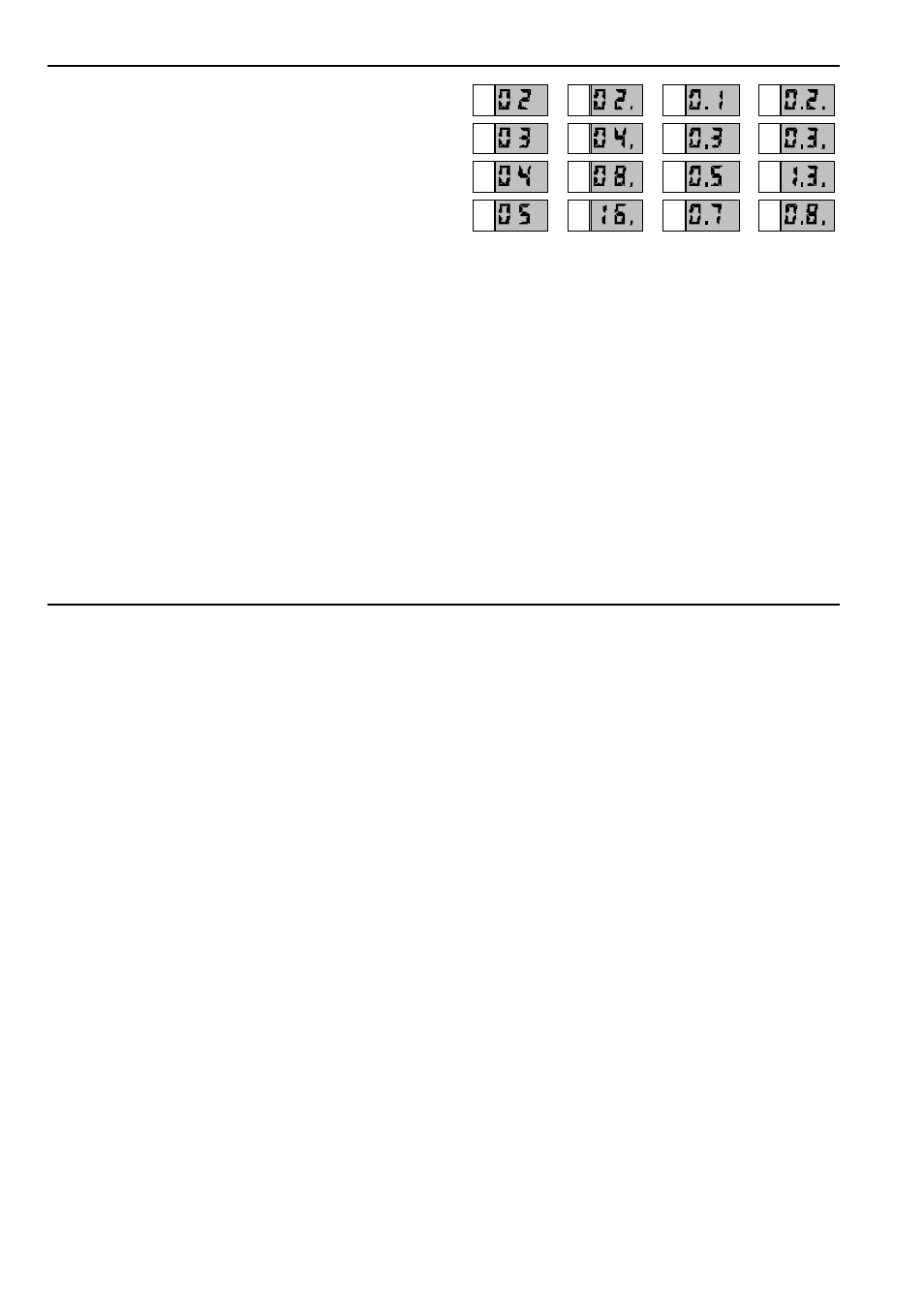

Fig. 5: Display of mixtures by means of decimal
points (from left to right: "00", "01", "10", "11")
H Before you adjust the divisors be sure that
you have selected the right mixture!
The Up/Down buttons of frequency divider 4 are
used for preset selection instead of divisor adjstment
if the preset button 5 is operated simultaneously.
4 Level
The attenuators 4 control the amount of the
respective subharmonic present at the mix output
%
.
