A-103 18dB Low Pass System A - 100 doepfer
2

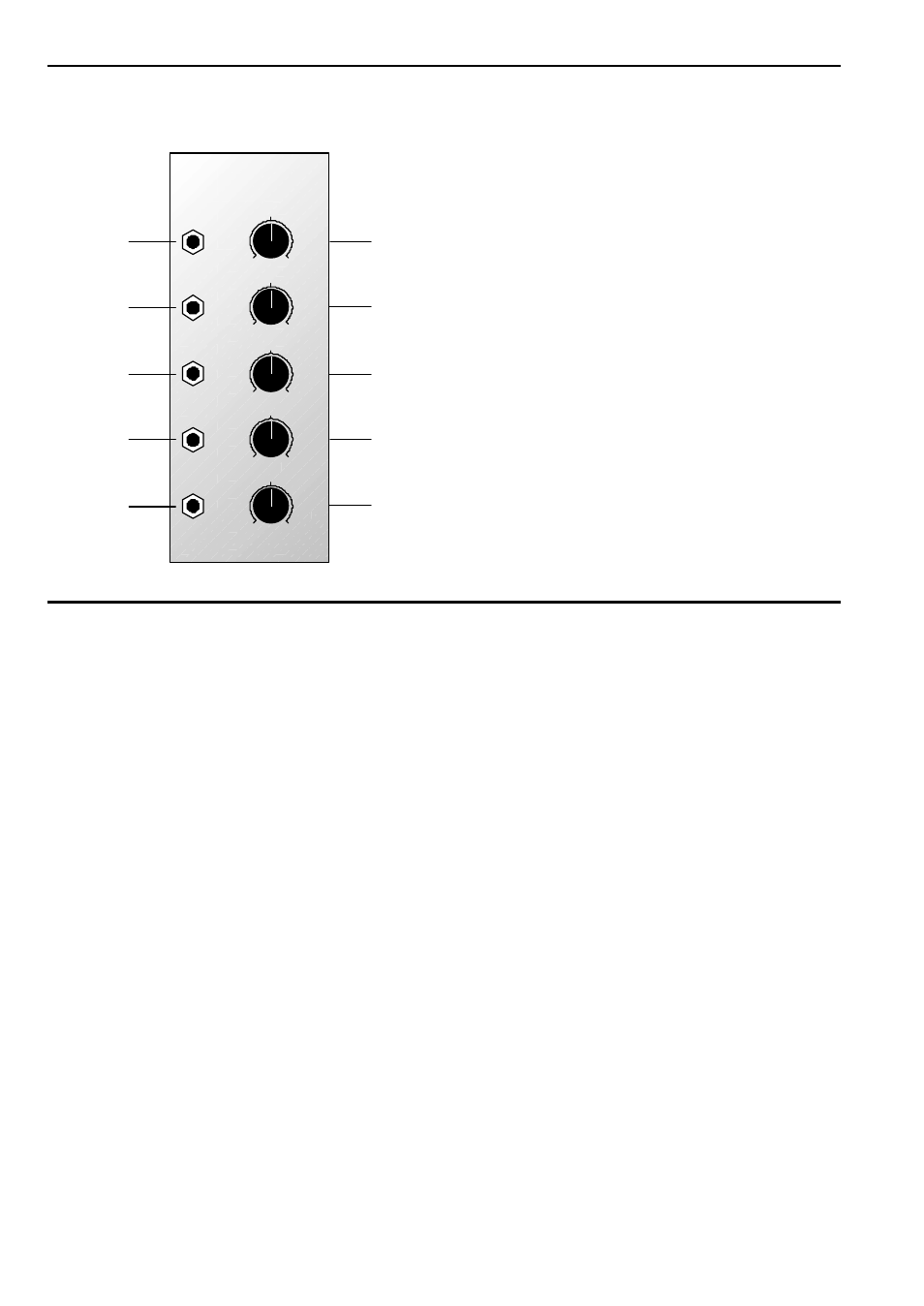

2. VCF 6 - Overview Controls:
1 Freq.: Cut-off frequency control
2 CV 2: Attenuator for CV at input "
3 CV 3: Attenuator for CV at input §
4 Lev.: Attenuator for audio input $
5 Res. : Control for setting the filter’s reso-
nance (emphasis)
In / Outputs:
! CV 1: Control Voltage input
" CV 2: ditto, level controlled by 2
§ CV 3: ditto, level controlled by 3
$ Audio In: Audio input to the filter
% Audio Out: Audio output from the filter
A-103
VCF 6
CV 2
CV 3
Audio In
CV 2
CV 3
Lev.
Res.
Frq.
CV 1
К
Л
М
Н
О
А
Б
В
Г
Д
18 dB LOW PASS
0 10
0 10
0 10
0 10
0 10
Audio Out
