33” Wide Area Mower
1
Description of the Mower
The Troy-Bilt 33” wide cut mower was discontinued in
2005. It has since been completely redesigned and
released as a Cub Cadet for the 2007 season.

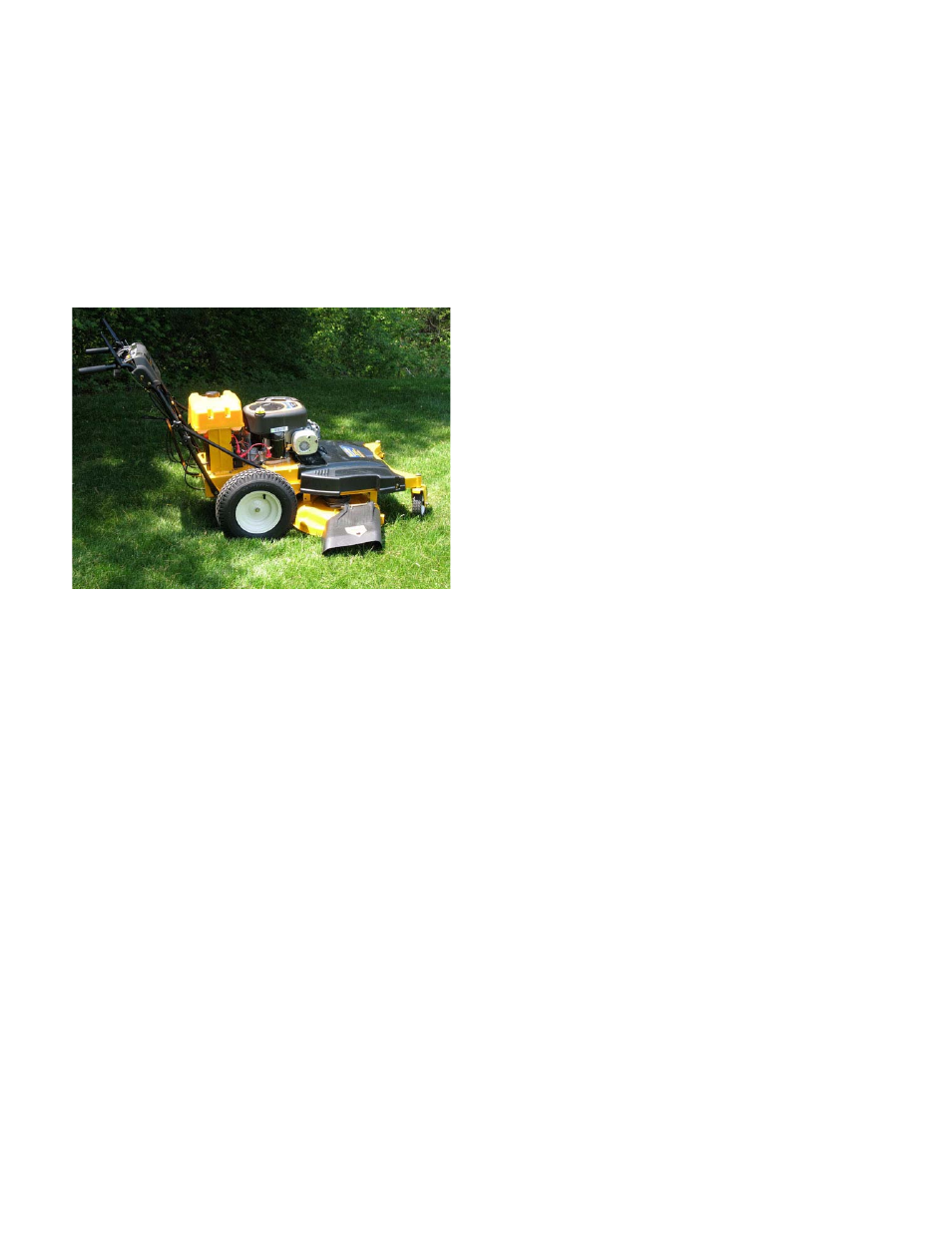

See Figure 1.1.
Some changes and features included on this mower:
• Easier access to the belts.
• Improved blade timing.
• Control rods replaced with cables.
• Controls are more user friendly.
• The mower is 20 lbs lighter.
• Deck Height Control.
• 2 gallon fuel tank.
• 10.5 horse power Briggs engine. (Horse power
as rated by Briggs and Stratton)
• 33” cutting width.
• 4 speed Peerless Transmission.
• Simplified gear selector.
• Single lever deck height adjustments.
• Timed dual blades.
• Front (grease able) caster wheels for better
maneuverability.
Figure 1.1
Disclaimer: The information contained in this Manual is
correct at the time of writing. Both the product and the
information about the product are subject to change
without notice.
Disclaimer: This handbook is intended for use by
trained, professional technicians.
• Common sense in operation and safety is
assumed.
• In no event shall MTD or Cub Cadet be liable for
for poor text interpretation, or poor execution of
the procedures described in the text.
• If the person using this handbook is uncomfort-
able with any procedures they encounter, they
should seek the help of a qualified technician.
Fasteners
• Most of the fasteners used on the mower are
sized in fractional inches. Some are metric. For
this reason, wrench sizes are frequently identi-
fied in the text, and measurements are given in
U.S. and metric scales.
• If a fastener has a locking feature that has worn,
replace the fastener or apply a small amount of
releasable threadlocking compound such as
Loctite® 242 (blue).
• Some fasteners like cotter pins are single-use
items that are not to be reused.
Other fasteners such as lock washers, retaining
rings, and internal cotter pins (hairpin clips) may
be reused if the do not show signs of wear or
damage. This manual leaves that decision to
the judgement of the technician.
CHAPTER 1: INTRODUCTION
