Drive system – Cub Cadet 33" Wide Area User Manual
Page 14
Drive system
11
5.
Remove the two caliper mounting bolts.
See Figure 3.16.
6.
Remove the caliper and outboard brake puck.
7.
Slide the brake disc off the splined shaft to
expose the inboard brake pad for inspection. See
Figure 3.17.
NOTE: A small amount of good quality lithium
grease should be applied to the splines. Take
care not to get any grease on the brake pads or
the friction surfaces of the rotor.
8.
Inspect the brake yoke for signs of corrosion that
may prevent proper movement of pins through
the yoke. See Figure 3.18.
NOTE: The two screws that fasten the brake
yoke have a patch of loctite. Replace them or
apply a small amount of releasable threadlock-
ing compound such as Loctite® 242 (blue)
.

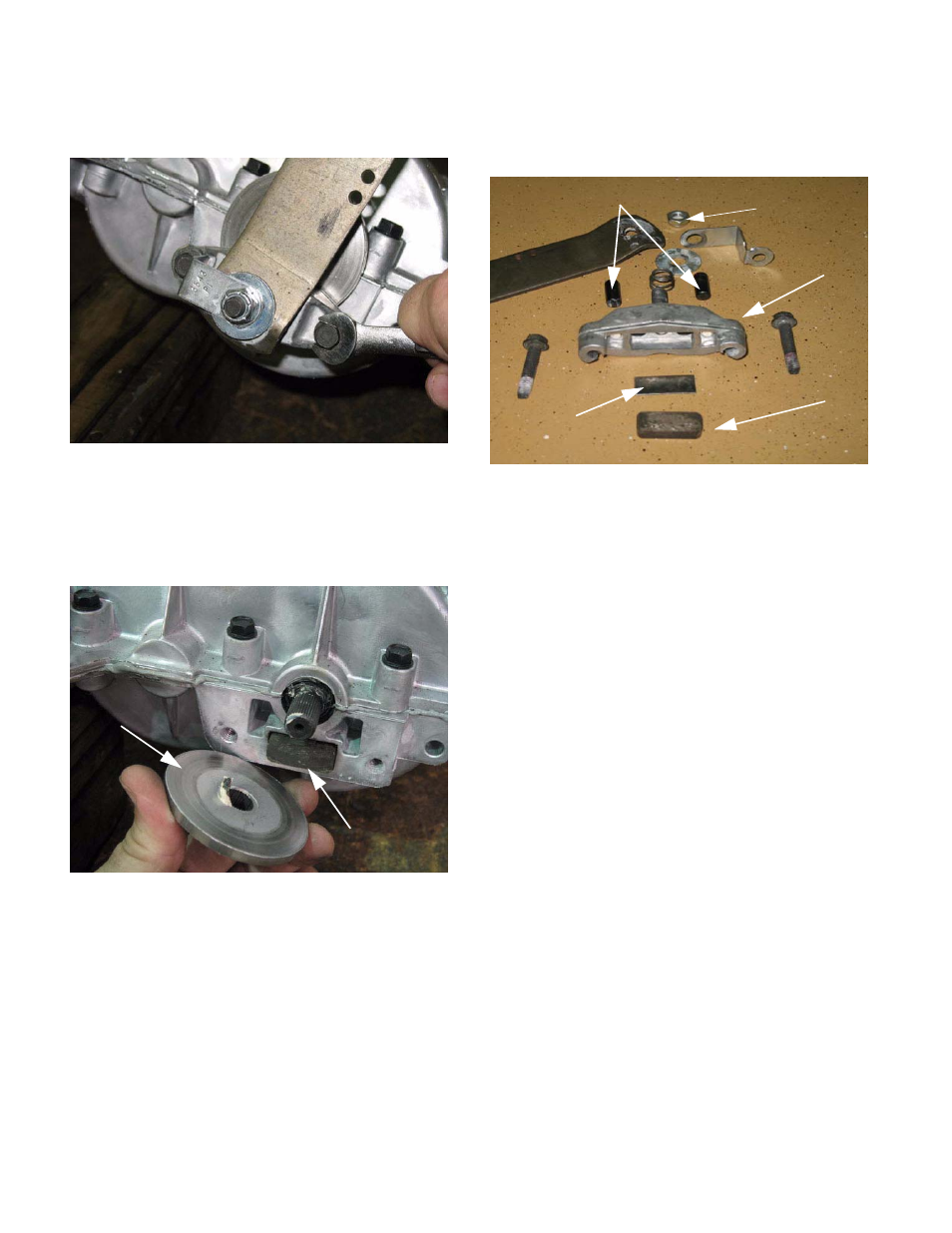

Figure 3.16
Figure 3.17
Brake Disk
Pad
Inboard Brake
Figure 3.18
Actuator Pins
Brake Yoke
Front Brake
Pad
Brake Pad
Plate
Adjustment
Screw
