Brake cables – Cub Cadet 33" Wide Area User Manual
Page 15

Drive system
12
Brake cables
To replace the cables:
NOTE: These cables are not adjustable.
1.
Loosen the lock nuts located on the cable brack-
ets and slide it up the cable. The bracket is
located on the handle bar beneath the dash
panel on both sides of the handle bars.
See Figure 3.19.
2.
Pull down slightly on the cable jacket. This will
allow the cable to slide out of the slotted bracket.
See Figure 3.20.

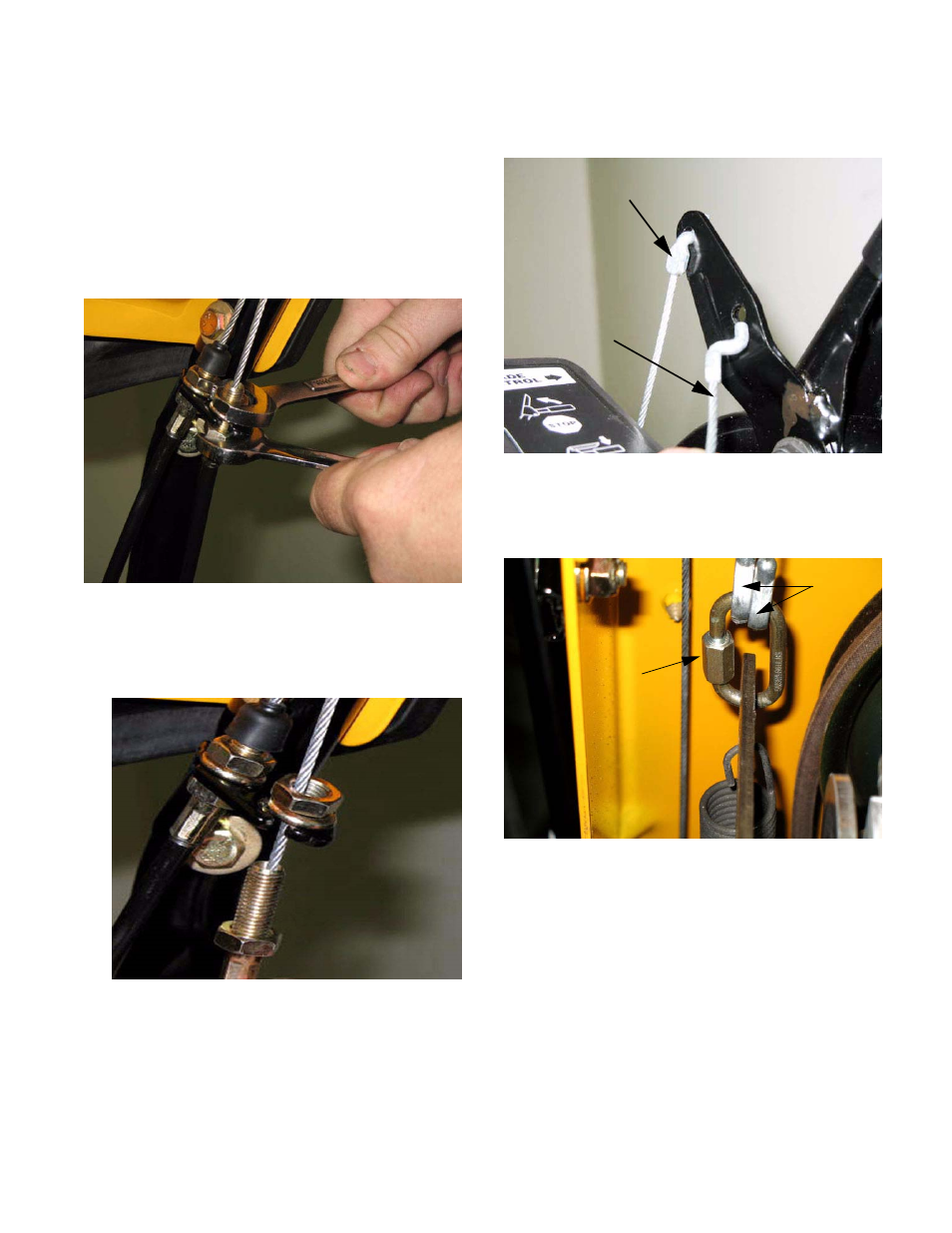

Figure 3.19
Figure 3.20
3.
The cable will now be loose enough to slip the z-
fitting from the handle. See Figure 3.21.
4.
The brake cables are joined together on a loop
link coupler located under the frame on the left
hand side. See Figure 3.22.
Figure 3.21
Brake
Cable
Deck engagement cable
Figure 3.22
Loop Link
Coupler
Brake cable
Eyelets
