16 OFF OFF OFF OFF ON OFF OFF OFF OFF OFF
17 ON OFF OFF OFF ON OFF OFF OFF OFF OFF
18 OFF ON OFF OFF ON OFF OFF OFF OFF OFF
… … … … … … … … … … …
1023 ON ON ON ON ON ON ON ON ON ON

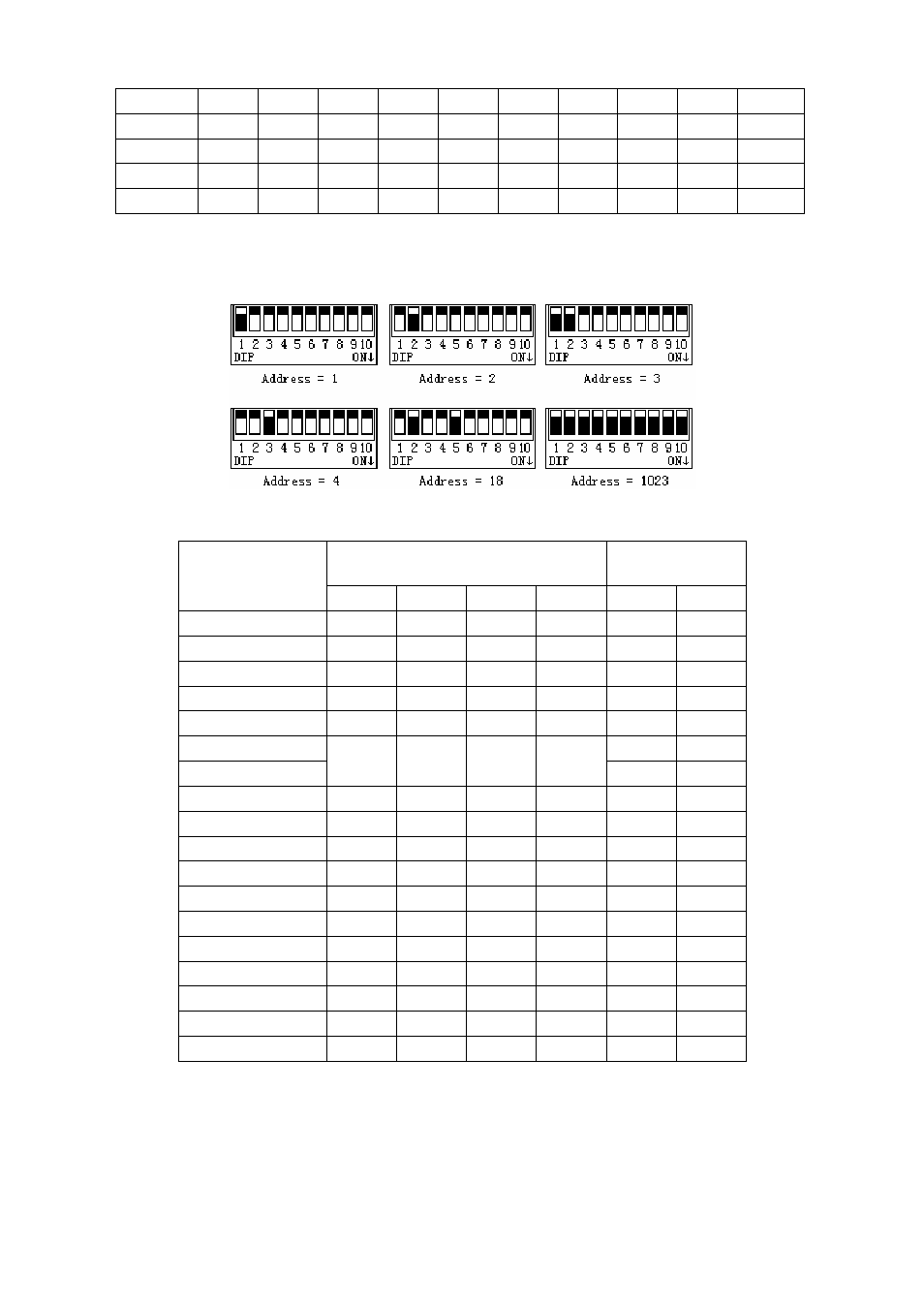

Table 1 Table of Addresses in DIP Switch
Examples：
Selection of Communication
Protocols
Common Baud
Rates Type of Protocols
DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6
SAMSUNG ON OFF OFF OFF OFF ON
B01 ON OFF OFF OFF OFF ON
NEON ON OFF OFF OFF OFF ON
Santachi OFF ON OFF OFF OFF ON
PELCO-D ON ON OFF OFF OFF OFF
PELCO-P/4800 ON OFF
PELCO-P/9600
OFF OFF ON OFF
OFF ON
PANASONIC ON OFF ON OFF OFF ON
Longcomity OFF ON ON OFF OFF ON
HUNDA600 ON ON ON OFF OFF ON
LILIN OFF OFF OFF ON OFF ON
VICON ON OFF OFF ON ON OFF
MOLYNX OFF ON OFF ON OFF ON
KALATEL ON ON OFF ON ON OFF
VCL OFF OFF ON ON OFF ON
Reserved ON OFF ON ON OFF ON
ALEC OFF ON ON ON OFF ON
Ultrak ON ON ON ON OFF ON
Table 2 Table of Protocols in DIP Switch
Some protocols and their common baud rates in DIP switch are as follows:
４
