2.5.6 RUN PATROL： to run patrol of multiple positions. Select the number of the pattern by PAN LEFT/PAN
RIGHT and press OPEN button to exit the menu.
2.5.7 RECORD PATTERN： to edit self-study of patrol. It can remember PTZ operation in 40 seconds in
maximum. When the 40th second is up or press CLOSE button, the edit is terminated.
2.5.8 RUN PATTERN： to run self-study pattern. After running it shall exit the menu. Control the joystick to
terminate its running.
2.5.9 RETURN： to return to the main menu.
3. Appendix to the Menu

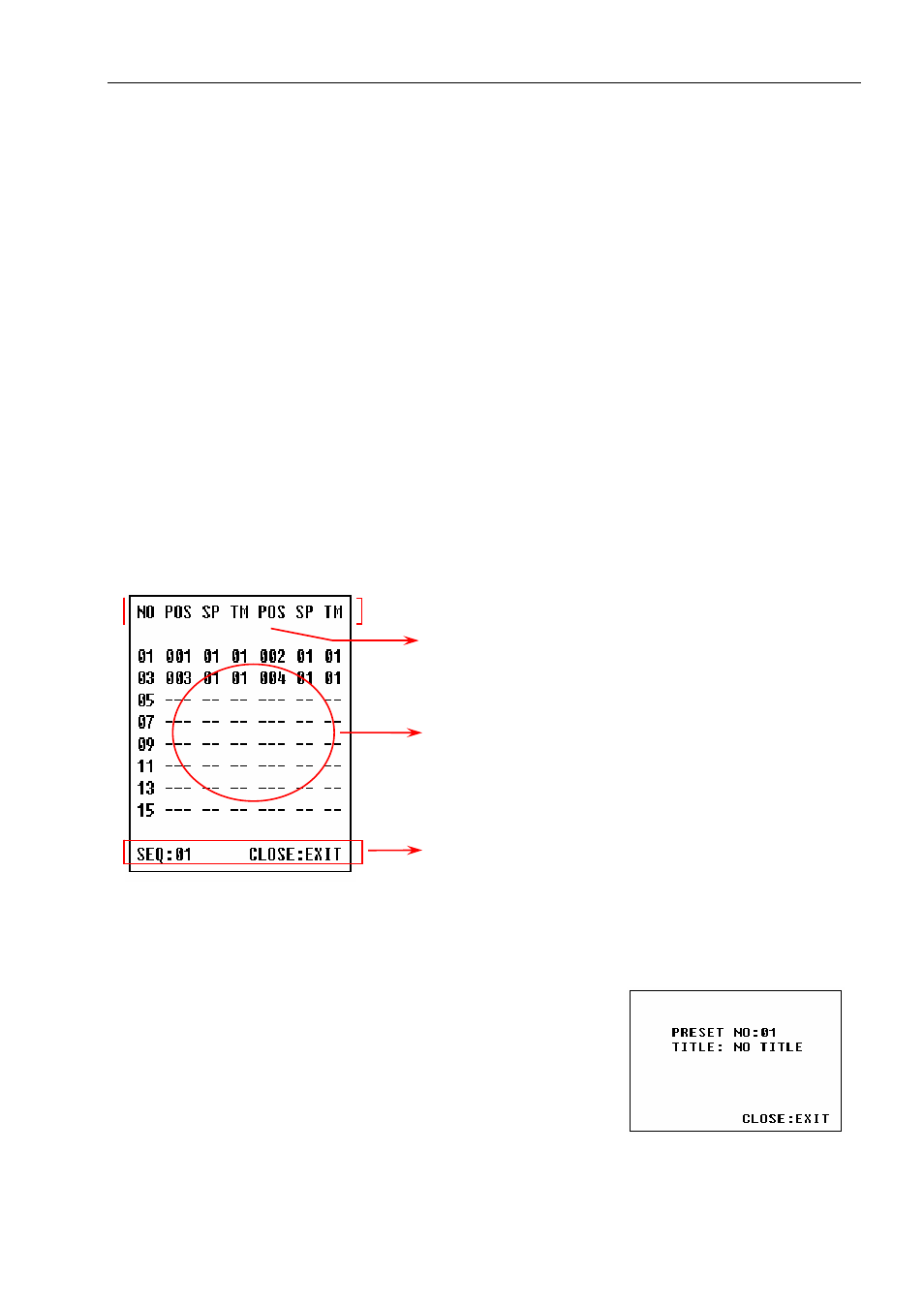

Operation of Multiple Patrol Positions under Edit State. After entering into Edit state, operations on the
screen are as follows:
The prompt messages are displayed on both op and bottom lines and information of every pattern is displayed in
the middle of the screen. One line includes data of two patrol positions. Move the cursor by PAN LEFT/RIGHT
and change values by TILT UP/DOWN. Press down buttons for more than one second to speed up operation.
Press CLOSE button to exit the Edit state and store the revisions. The program can search the first position where
POS is “---”, and store data in front of it and regard data after it ineffective. Look the above drawing for example,
the program stores first four patrol positions. The settable range of POS is from 1 to 63 and 65 to 128. When POS
is “---“, it means the range of the patrol is finished. The settable range of SP is from 0 to 8 (0 is the same with 1
and has the fastest speed while 8 has the lowest speed). The settable range of TM is from 0 to 99 seconds.
NO – No.of Patrol Position
POS – No.of Preset Position
SP – Leaving Speed
TM – Dwell Time
After entering into Edit state,following in-
formation displays on the screen:
EDIT AREA: one line includes data of two patrol positions.
SEQ:01 – It means current set sequence is 1
CLOSE:EXIT – Press CLOSE to exit Edit state
Operation of Title of Preset Position under Edit State. After entering
into Edit state, the display on the screen is shown as follows: from the
drawing we can find the current setup is the first preset position with the title
of “NO TITLE”. Move the cursor by PAN LEFT/RIGHT and change values
by TILT UP/DOWN. Press down buttons for more than one second to speed
up operation. Press CLOSE button to exit the Edit state and store the
revisions. The title of the preset position can include 8 characters in
maximum such as 0-9, A-Z, +, - and blank. Note: the first letter should be
0-9 or A-Z, otherwise it means the title of the preset position should be
６
