VI. Connection Drawing of the System for Reference

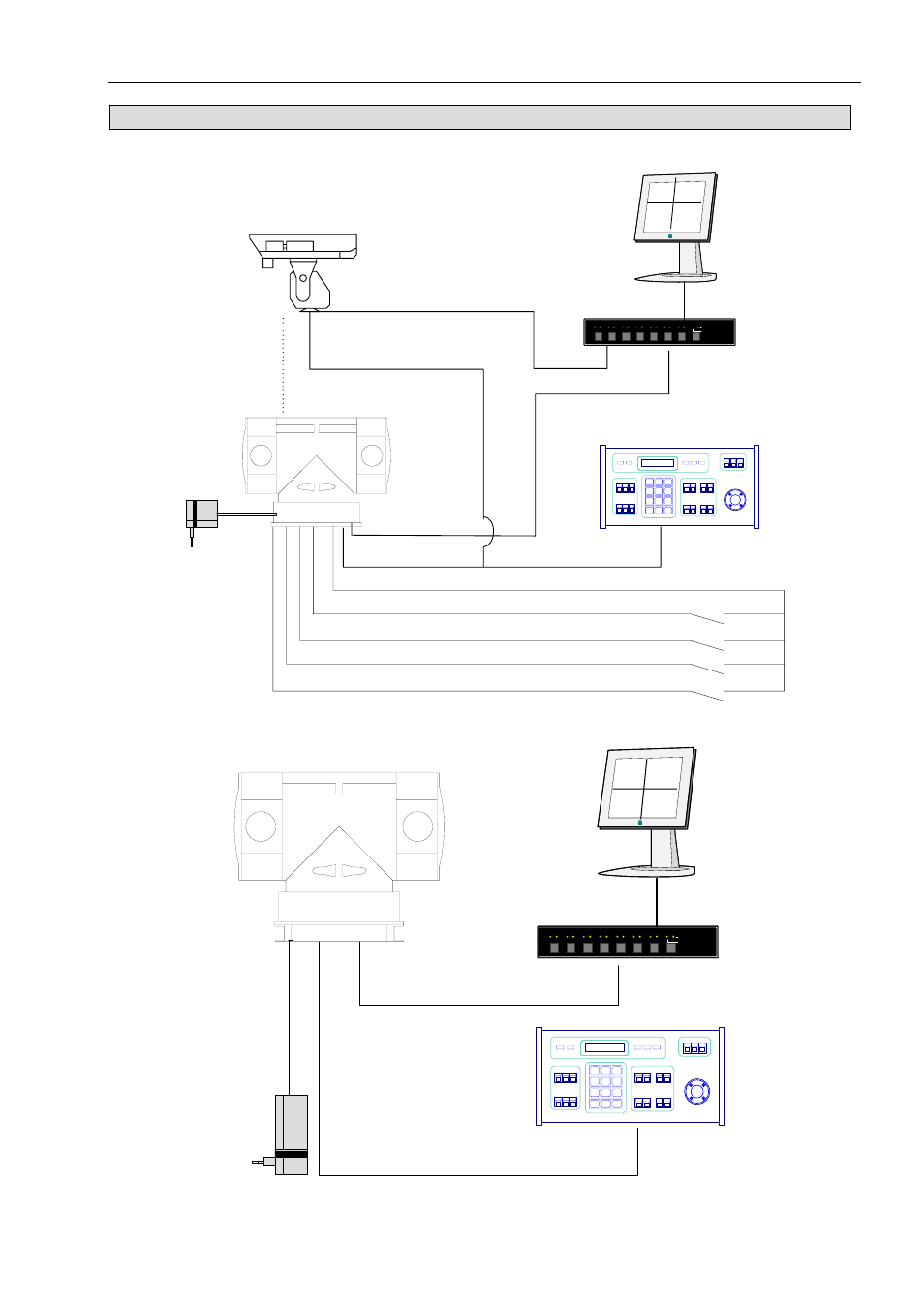

6.1 Schematic Drawing of Common Pan/tilt：
monitor
A
B
C
D
E
F
G
H
SELECTED
ON-LINE
digitial video HD Record
Video in
Video in
RS485 BUS
RS485 BUS
Control keyboard
Common line
Alarm1
Alarm2
Alarm3
Alarm4
AC24V POWER
6.2 Schematic Drawing of the Vehicle-Carried Pan/Tilt (the shock absorber is added)：
monitor
A
B
C
D
E
F
G
H
SELECTED
ON-LINE
digitial video HD Record
Control keyboard
Video in
RS485 BUS
DC12
V P
O
WE
R
１４
