COP-USA CD56NV-IR User Manual
Page 6
2.4.3
PRESET PIC： NULL (no such a function).
2.4.4
HOME OPTION： to enter into the sub-menu of automatic home
function.
2.4.4.1
AUTO HOME： when it is set at ON, the automatic home is opened. It
means if the user has no any function in a period of time, the pan/tilt
shall return home (HOME). The pan/tilt couldn’t return home
automatically if the pan/tilt is at patrol state. If no home returning is
needed when the pan/tilt is under stop state, set this option at OFF.
2.4.4.2
HOME POS： HOME is the returning position. If some scene is
needed to set as HOME, call this scene on the camera and set it as the
preset position 3, then call up the menu and enter into this sub-menu, and change the figure after HOME
POS into 3. If you need to activate the automatic home, do not forget
to set AUTO HOME at ON. HOME POS can be preset positions from
1 to 63, and 65 to 128.
CONTROL SETUP
1. AUTO FI LP ON
2. ALARM ON
3. PRESET PI C MOVE
4. HOME OPTI ON
5. I R_LED OFF
6. EXI T
HOME OPTI ON
1. AUTO HOME ON
2. HOME POS 01
3. DWELL TI ME 05 MI N
4. RETURN
2.4.4.3
DWELL TIME： to set the time of automatic home, that is, if no
control within the set time, it shall return home. The time can be from
1 to 99 minutes.
2.4.4.4
RETURN： to return the menu one level upward.
2.4.4.5
The default option on the menu of the infrared lamp is OFF. Normally the system detects external
illumination and opens/closes the infrared lamp automatically. If the user changes the option of the
infrared lamp into ON by the menu, the infrared system is changed into the manual control; if changing
back into the automatic control, the user should set the option on the menu of the infrared at OFF.
2.4.5
RETURN： to return to the main menu.

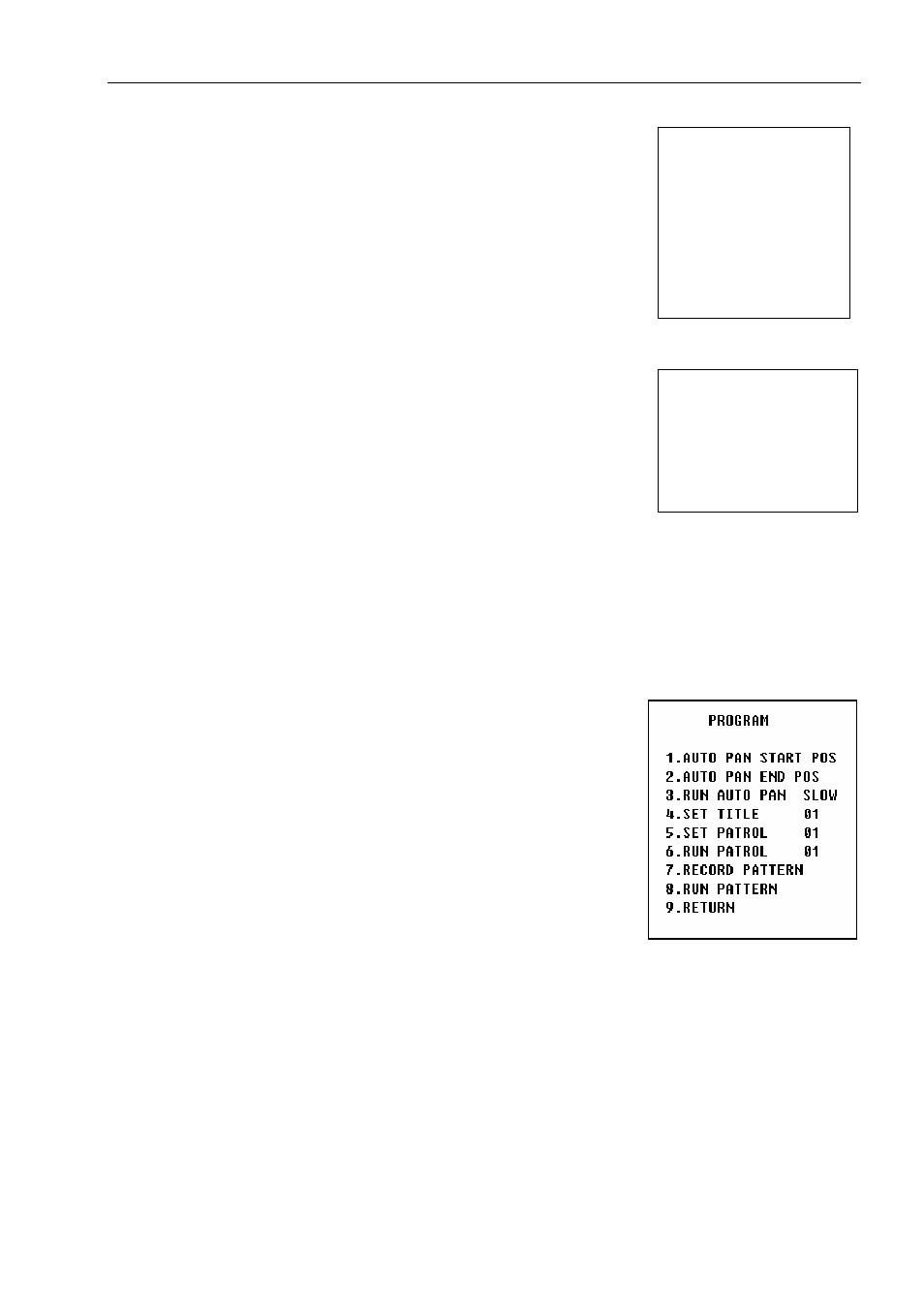

2.5 PROGRAM
2.5.1
AUTO PAN START POS： to set the start position of the pan between
two positions. After entering you can move the dome camera by the
joystick. Push CLOSE button you can store current position and
return.
2.5.2
AUTO PAN END POS： to set the end position of the patrol between
two positions. After entering you can move the pan/tilt by the joystick.
Push CLOSE button you can store current position and return.
2.5.3
RUN AUTO PAN： to pan between two positions. Please set the start
position and the end position of the pan first. If the start position is
just the end position, the dome camera shall make 360° pan. The
speed of the pan is divided into six grades: FAST / NORMAL / SLOW / -FAST / -NORMAL / -SLOW.
The first three grades are the pan less than 180° while the rear three grades are the pan larger than 180°.
Adjust speed by PAN LEFT/PAN RIGHT and press OPEN button to exit the menu. The start position and
the end position of the pan can be set up by options 1 and 2 of the menu.
2.5.4
SET TITLE： to edit the title of the preset position. Only first 63 positions can have their titles. Select
the number of the preset positions by PAN LEFT/PAN RIGHT and press OPEN button to enter into the
edit state. Operations under the edit state are shown below.
2.5.5
SET PATROL： to edit patrol data of multiple positions. Select the number of the pattern by PAN
LEFT/PAN RIGHT and press OPEN button to enter into the edit state. Operations under the edit state are
shown below.
５
