– 7 –

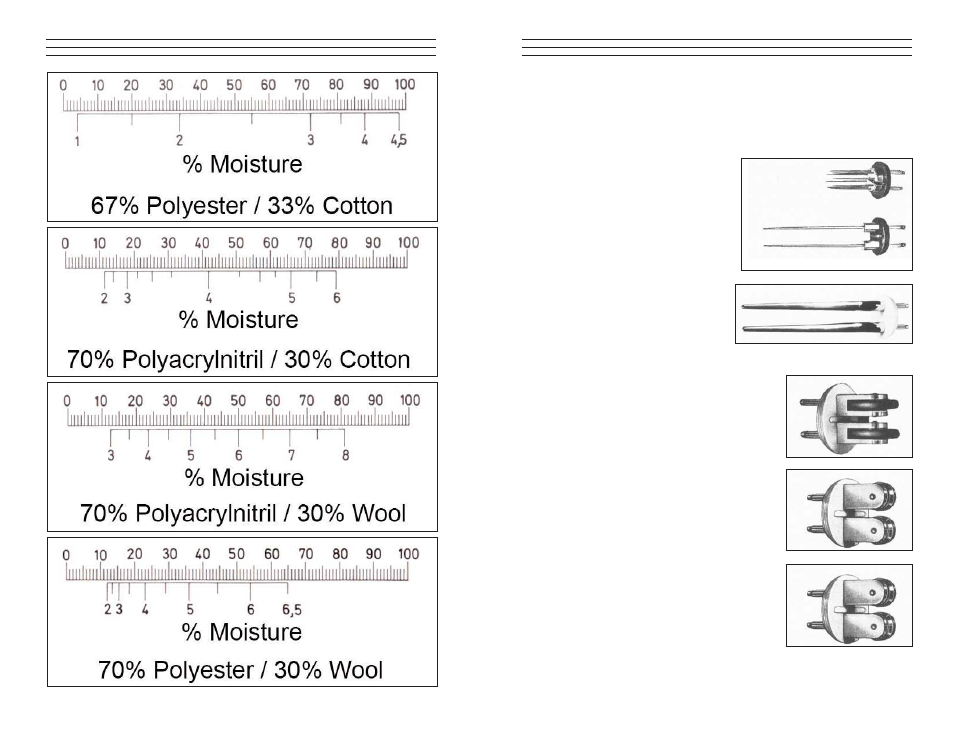

5.0 E LECTRODES
A variety of measuring electrodes are available for the TEM-1 to
accommodate different applications. Ordering information?
Needle Electrodes
Needle Electrodes are used for
making measurements of cops,
bobbins or hanks or yarn
# 205 = 25mm length
# 206 = 45mm length
# 207 = 100mm length
Knife Electrode #210
The Knife Electrode is for
measuring on webs, rolls and
bales of textile fabrics and bulk
fibers by applying the blades
to or inserting them between
the plies of fabric.
Roller Electrode #211
The Roller Electrode is used for measuring
moving webs of material.
Flow Electrode #212
The Flow Electrode is used for measuring
threads and yarns.
Surface Electrode #213
The Surface Electrode is used for measuring
threads and yarns.
