Checkline TELC System User Manual
Page 2

-2-
1.0 I
NTRODUCTION
These Operating Instructions refer to Model TE sensor; they are also applicable to the
following models:
TP, TE-24, TE-22, TF, TERX, BTMS
1.1 Unpacking
When the sensor is delivered without a display and data analysis unit:
1 Diode connector, 8-pin
1 Operating Instructions
Unpack the instrument and inspect it for any shipping damage. Notices of defect
must be filed immediately, at the latest within 10 days on receipt of the goods.
1.2 Optional
Accessories
Option DC
: Analog output 0 - 10 V DC
Option MA:
Analog output 4 - 20 mA
-11-

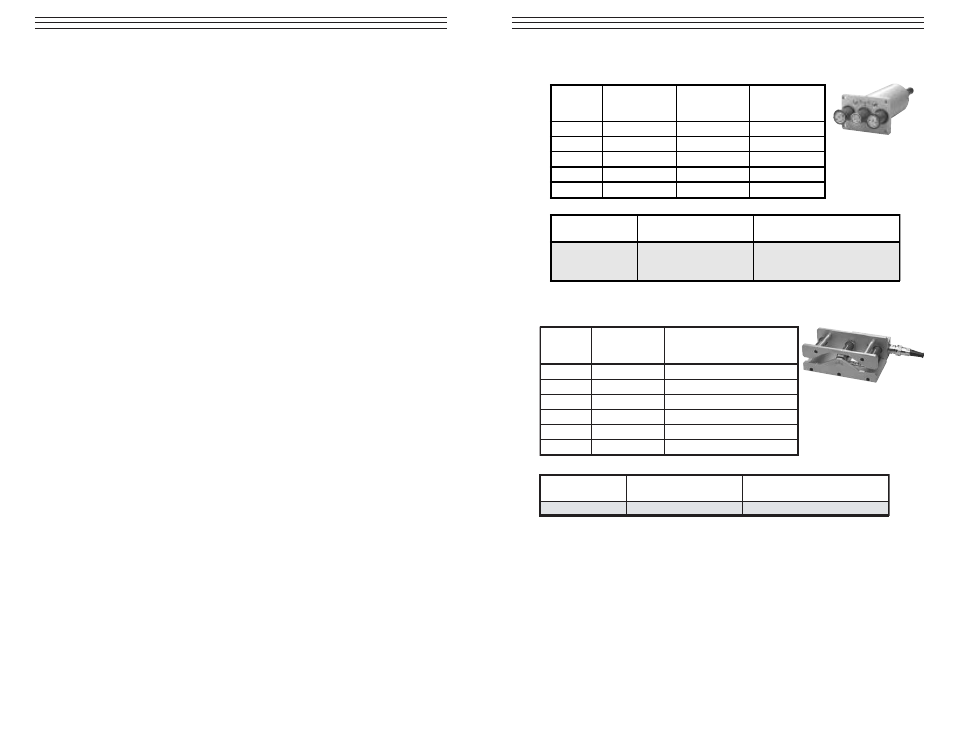

5.7 BTMS
Models
5.6 TERX
Models
BTMS guide rollers:
Guide Rollers
Line Speed
m/min max.
Roller Material
Standard
1000
Hardcoated aluminium
Model
Tension Ranges
cN
Roller Widths
BTMS-1000
0 - 1000
30, 36, 41, 50, 100
BTMS-2000
0 - 2000
30, 36, 41, 50, 100
BTMS-5000
0 - 5000
10, 15, 20, 30, 36, 41, 50, 100
BTMS-10K
0 - 10 daN
10, 15, 20, 30, 36, 41, 50, 100
BTMS-20K
0 - 20 daN
10, 15, 20, 30, 36, 41, 50, 100
BTMS-50K
0 - 50 daN
10, 15, 20, 30, 36, 41, 50, 100
TERX guide rollers:
Model
Tension Ranges
cN
*
Measuring
Head Width mm
Roller Widths
TERX-100
0 - 100
60
7, 10, 15, 20
TERX-200
0 - 200
60
7, 10, 15, 20
TERX-500
0 - 500
60
7, 10, 15, 20
TERX-1000
0 - 1000
60
7, 10, 15, 20
TERX-2000
0 - 2000
120
7, 10, 15, 20
Guide Rollers
Line Speed
m/min max.
Roller Material
Standard
1000
Hardcoated aluminium
(Exception: 7 mm rollers
are made of nickel-plated steel)
