Rs-232c port, Commands/responses – Checkline FGE User Manual
Page 4
4
Table 1

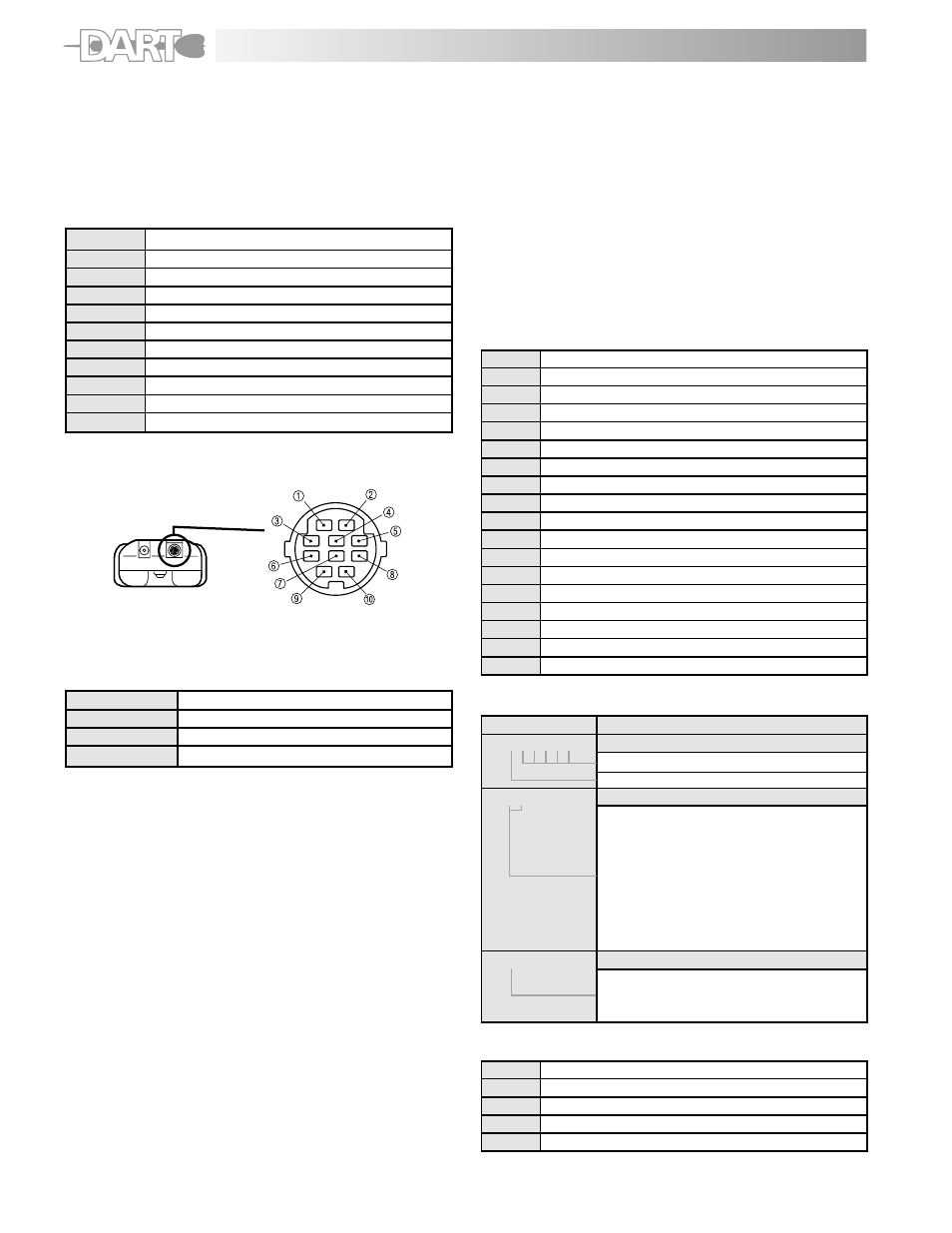

Figure 3
(HR12-10RC-10SDL), HIROSE
RS-232C Port
An important feature of the FGV-X family of gauges is
the RS232C communications port. Data and commands
can be linked to a PC or any other device responding to
RS232C signals for storage or further analysis. Table 1
(below) describes the function of each pin of the
connector (HR12-10RC-10SDL) shown in Fig. 3.
PIN#
PIN#
PIN#
PIN#
PIN#
DESCRIPTION
1
11
11
Analog signal output
2
22
22
Analog GND
3
33
33
Receive data (input)
4
44
44
Digital GND
5
55
55
Communication enable
6
66
66
Transmit data (output)
7
77
77
No connection
8
88
88
Compression overload output
9
99
99
Tension overload output
10
10
10
10
10
Frame GND
RS232C Output Specifications
RS232C Output Specifications
RS232C Output Specifications
RS232C Output Specifications
RS232C Output Specifications
Baud rate
Baud rate
Baud rate
Baud rate
Baud rate
2400, 4800, 9600, 19200 bps (selectable)
Data length
Data length
Data length
Data length
Data length
8 bits
P
P
P
P
Parity
arity
arity
arity
arity
None
Stop bit
Stop bit
Stop bit
Stop bit
Stop bit
One
Commands/Responses
The FGV-X series of force gauges has the ability to
recognize and respond to various commands from
outside peripherals. If for instance the gauge receives a
legitimate command from a PC, it will respond by sending
back the same code indicating to the PC that the
command was recognized. If for example the command
is a request for average data output, it will send the
data and the code NA etc. If the gauge recognizes an
error while it is receiving a command, an error symbol is
transmitted back to the PC indicating the exact nature
of the error.
Commands to FGV-X Gauge
AAcr
Tare
ABcr
Stop output
ACcr
Change to peak mode
ADcr
Change to average mode
AEcr
Peak reset
AFcr
Change units to Kg (g)
AGcr
Change units to N
AHcr
Change units to lb (oz)
BAcr
Data output request (single reading)
BBcr
Continuous data output request (10 times/sec)
BB1cr
Continuous data output request (20 times/sec)
BB2cr
Continuous data output request (50 times/sec)
BB3cr
Continuous data output request (100 times sec)
BCcr
Model name confirmation request
BDcr
Units confirmation request
BEcr
Peak data output request
BFcr
Minus Peak data output request
cr
(cr: carrige return)
Response from FGV-X gauge
NA""""""cr
Average data output
NB""""""cr
Peak data output
4-digit number with decimal point
sign (+ or –)
NE""cr
Model number
02 = FGV-0.5X
03 = FGV-1X
04 = FGV-2X
05 = FGV-5X
06 = FGV-10X
07 = FGV-20X
08 = FGV-50X
09 = FGV-100X
NH"cr
Unit
0 = N
1 = Kg (g)
2 = lb (oz)
Error Symbols
OBcr
Command error
OEcr
Parity error
OFcr
Format error
OGcr
Summing error
OHcr
Overrun error
