CANNON ® CT-1000HT Constant Temperature Bath
Revision 1.1b—June, 2011; CANNON ® Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
the bath) until the top of the jar forms a tight seal with the covers
(see Figure 10). Make sure you tighten the set screws uniformly so
the jar remains level.
15. Run the AC cord
through the rear panel
opening
16. Replace the drawer in
the slide tracks and push
the drawer back into its
opening. Insert the two
plugs into the rear of the
drawer assembly.
Motor-stirrer Complete the assembly of the bath, including the motor-stirrer installa-
tion, per the instructions below:
1. Take the motor/stirrer from its box. Remove the two screws on the
top heater housing and lift off the housing (see Figure 11).
2. After checking the impeller blades to make sure that the flat sections
all lie in the same plane, insert the motor stirrer in the opening
provided (see Figure 12).
CAUTION To keep from accidentally bending the motor shaft, do not hold the motor
assembly by the shaft. Use care when inserting the motor shaft and
impeller to prevent damage to delicate components.
NOTE Two standoffs located on either side of the opening for the motor stirrer
serve as locating pins for the motor support pad. The holes in the pad fit
loosely over their heads. The motor line cord should point toward the
rear of the bath (offset slightly to the right or left). The motor stirrer should
now lie flat on the top of the bath.
3. Reattach the top heater housing, making sure that the heater, motor,
and fan cords pass through the left-hand opening (as viewed from the
rear) and that the control probe, over-temperature probe, and level

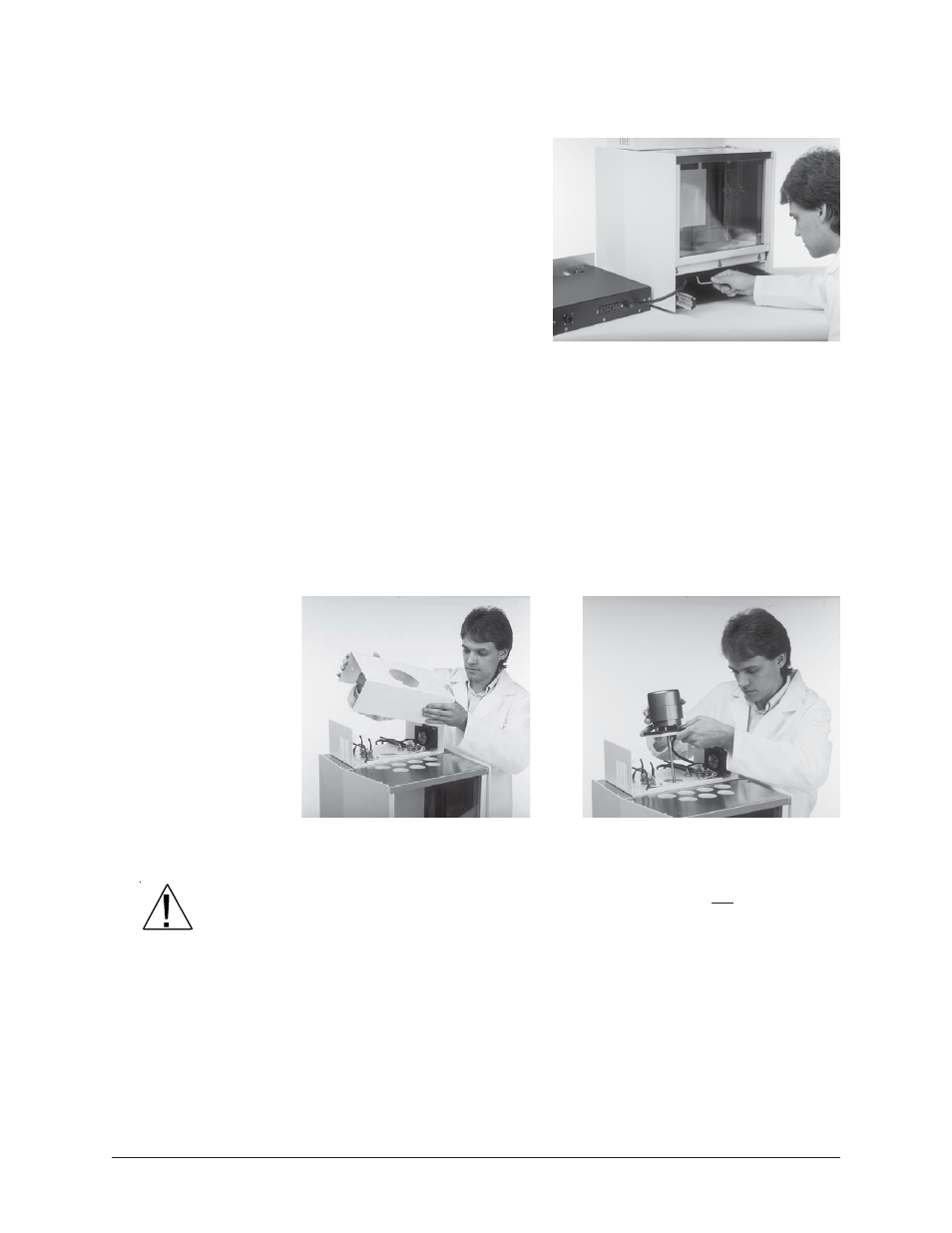

Figure 10: Adjusting set screws
Figure 11: Removing housing Figure 12: Installing motor-stirrer
