FINISHED FLOORING (on concrete)
Important: It is the responsibility of the INSTALLER to have
some knowledge of finished floor thickness before proceeding.

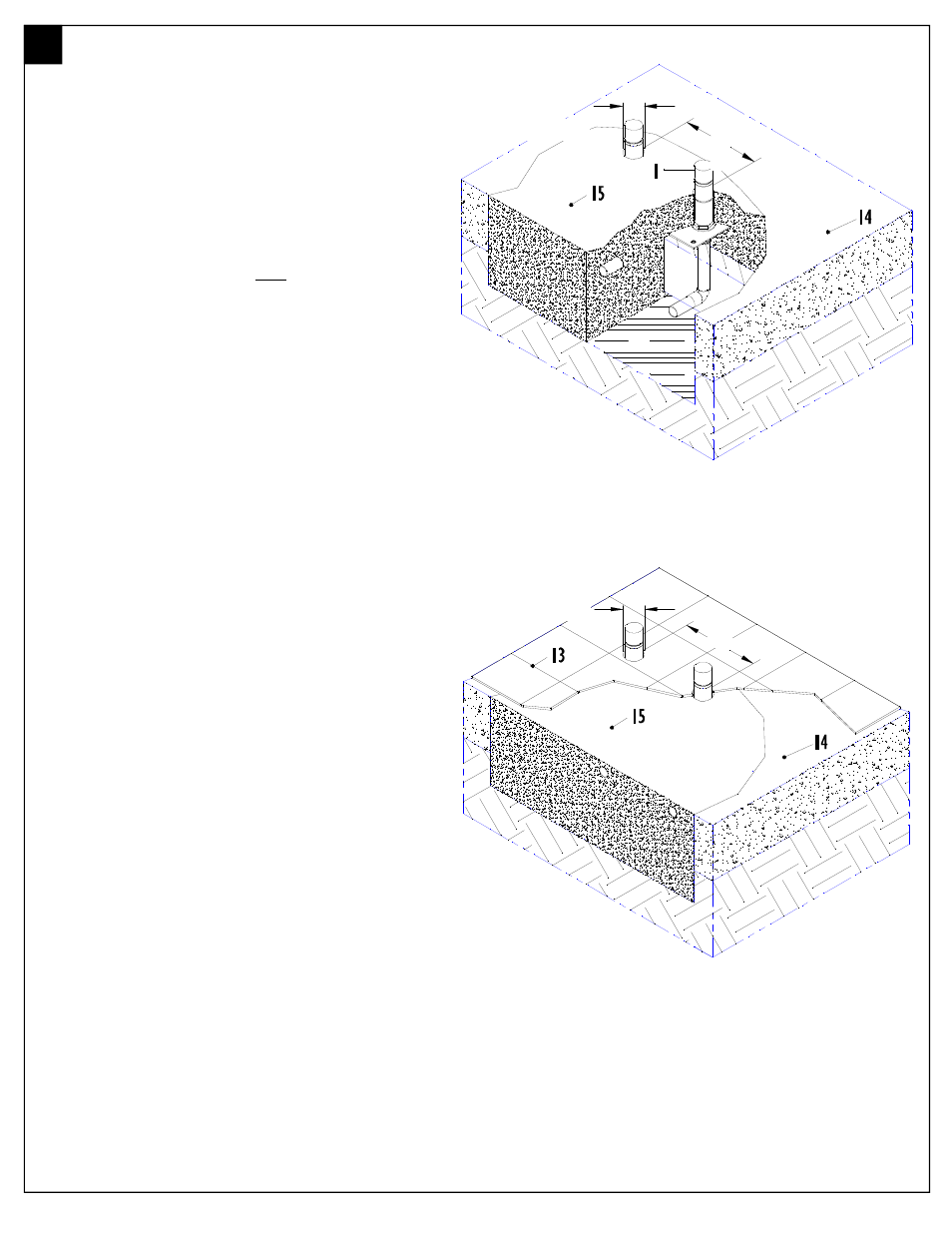

• Pour concrete FILLER (15) around
MUDGUARD❶ encasing PLATE❻ and filling to
surrounding CONCRETE⓮
• Apply top floor COVERING⓭ (e.g. tile, stone,
etc…) onto concrete FILLER (15) and surrounding
CONRETE⓮
• Finished floor COVERING⓭ must fall between the
MIN/MAX marks on MUDGAURD❶ for proper
installation of Floor Mounted Tub Filler Faucet
