StyleTherm

TH51- R

½” Thermostatic Valve with Single Volume Control Rough

Installation Instructions



CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED

BY A LICENSED PROFESSIONAL

IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.

WARNING:
This valve is factory set to deliver water at 100°F; however, it is the installer’s responsibility to verify correct temperature
setting to prevent risk on scalding or other severe injury prior to consumer use. The installer is responsible for adjusting maximum

temperature setting according to Thermostatic Rough and Thermostatic Trim Installation Instructions.


Operating Specifications:

Recommended Supply Pressure:

20 to 70 psi

*†

Recommended Hot Water Supply Temperature:

120 to 140°F

Nominal Flow Rate @ 60 psi:

10 gpm


*

Operating pressures between hot and cold supplies should vary no more than 30 psi.

f water pressure exceeds 70 psi, install a Pressure-Reducing Valve (RPV).

0.0

5.0

10.0

15.0

20.0

20

30

40

50

60

70

Pressure (psi)

Fl

ow

R

a

te

(gpm)

I

Follow all applicable local plumbing codes when setting the temperature on the water heater.

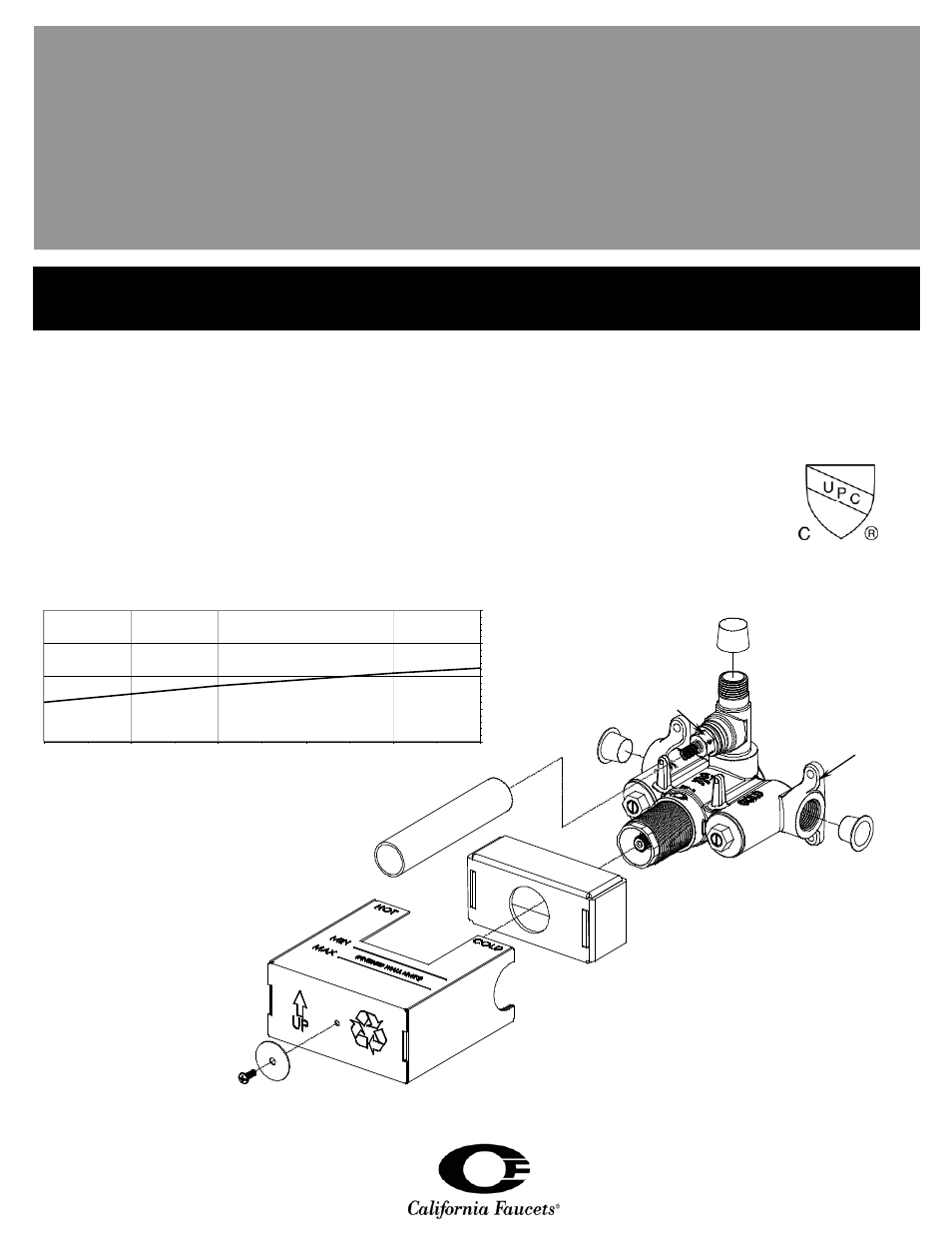

Body

Volume

Control

Thread

Protector

Thread

Protector

Thread

Protector

Mudguard
Support

Volume Control

Mudguard

Valve

Mudguard

Mudguard

Screw

Mudguard

Washer

Valve

Mounting Tab



TH51-R_ii_130102.doc

Pg
