StyleTherm
™
TH75- R
¾” Thermostatic Valve Rough
Installation Instructions
0.0
5.0
10.0
15.0
20.0
25.0
20 30 40 50 60 70 Pressure (psi)
Fl
ow
R
a
te
(g
pm)
IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.
WARNING: This valve is factory set to deliver water at 100°F; however, it is the installer’s responsibility to verify correct temperature
setting to prevent risk on scalding or other severe injury prior to consumer use. The installer is responsible for adjusting maximum
temperature setting according to Thermostatic Rough and Thermostatic Trim Installation Instructions.
Operating Specifications:
Recommended Supply Pressure: 20 to 70 psi *†
Recommended Hot Water Supply Temperature: 120 to 140°F ‡
Nominal Flow Rate @ 60 psi: 18.2 gpm
*
Operating pressures between hot and cold supplies should vary no more than 30 psi.
† If water pressure exceeds 70 psi, install a Pressure-Reducing Valve (RPV).
‡ Follow all applicable local plumbing codes when setting the temperature on the water heater.
CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED
BY A LICENSED PROFESSIONAL

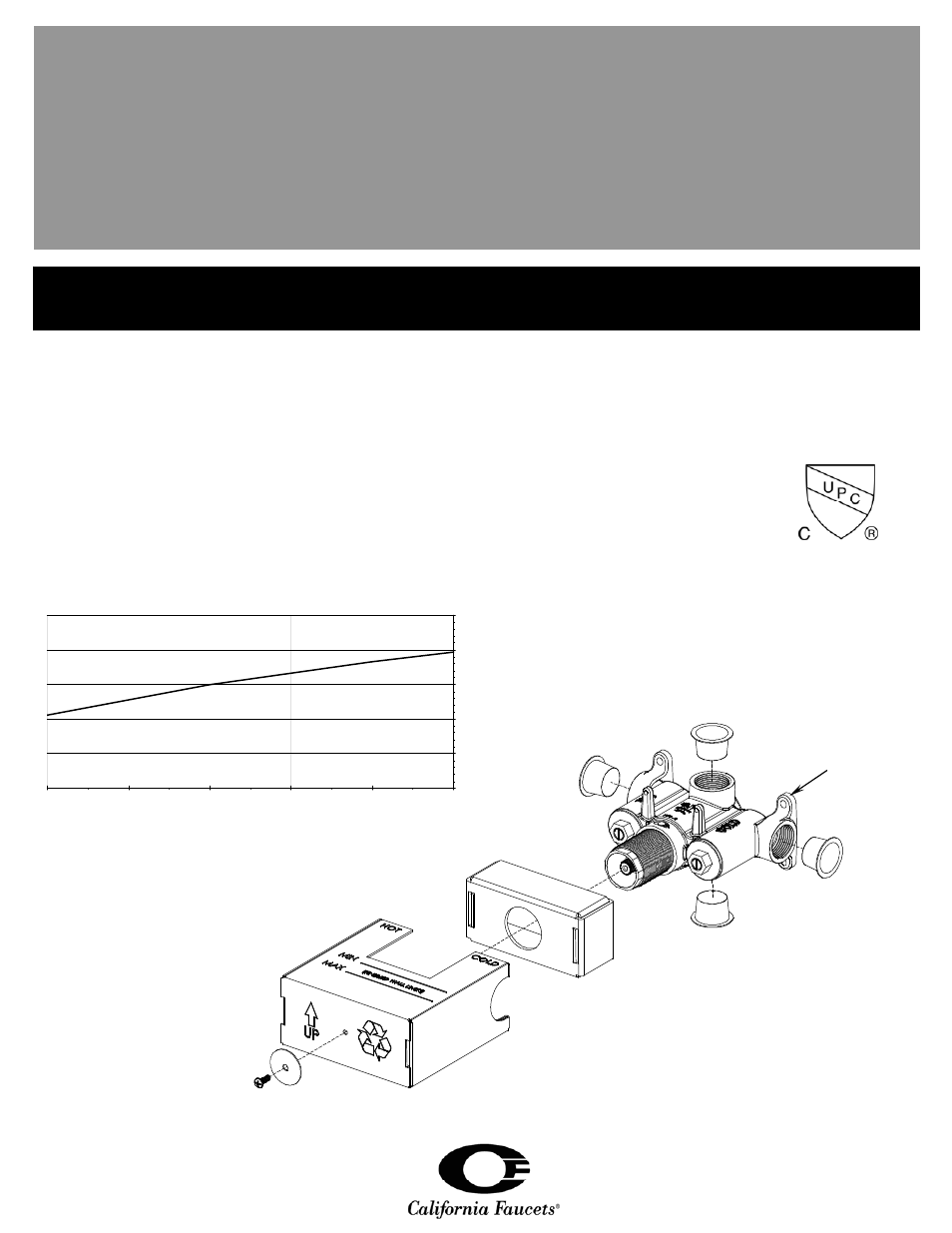

Body
Thread
Protector
Thread
Protector
Thread
Protector
Mudguard
Support
Valve
Mudguard
Mudguard
Screw
Mudguard
Washer
Valve
Mounting Tab
Thread
Protector
