California Faucets Builder Series Roman Tub Sets - Manual

1 1/4" Hole Size
for Drilling
Fiber
Washer
Cold Hot
Connector
Tee
Quick
Connect
Handle
Set
Screw
Escutcheon
IMPORTANT
All California Faucets products are engineered to provide quality performance provided they
are installed and operated properly. To fully enjoy the comfort, safety, and reliability of your new
Roman Tub Set, please follow the instructions below.
ROMAN TUB SETS
www.calfaucets.com 800-822-8855
R
INSTALLATION
INSTRUCTIONS
Bottom
Nut

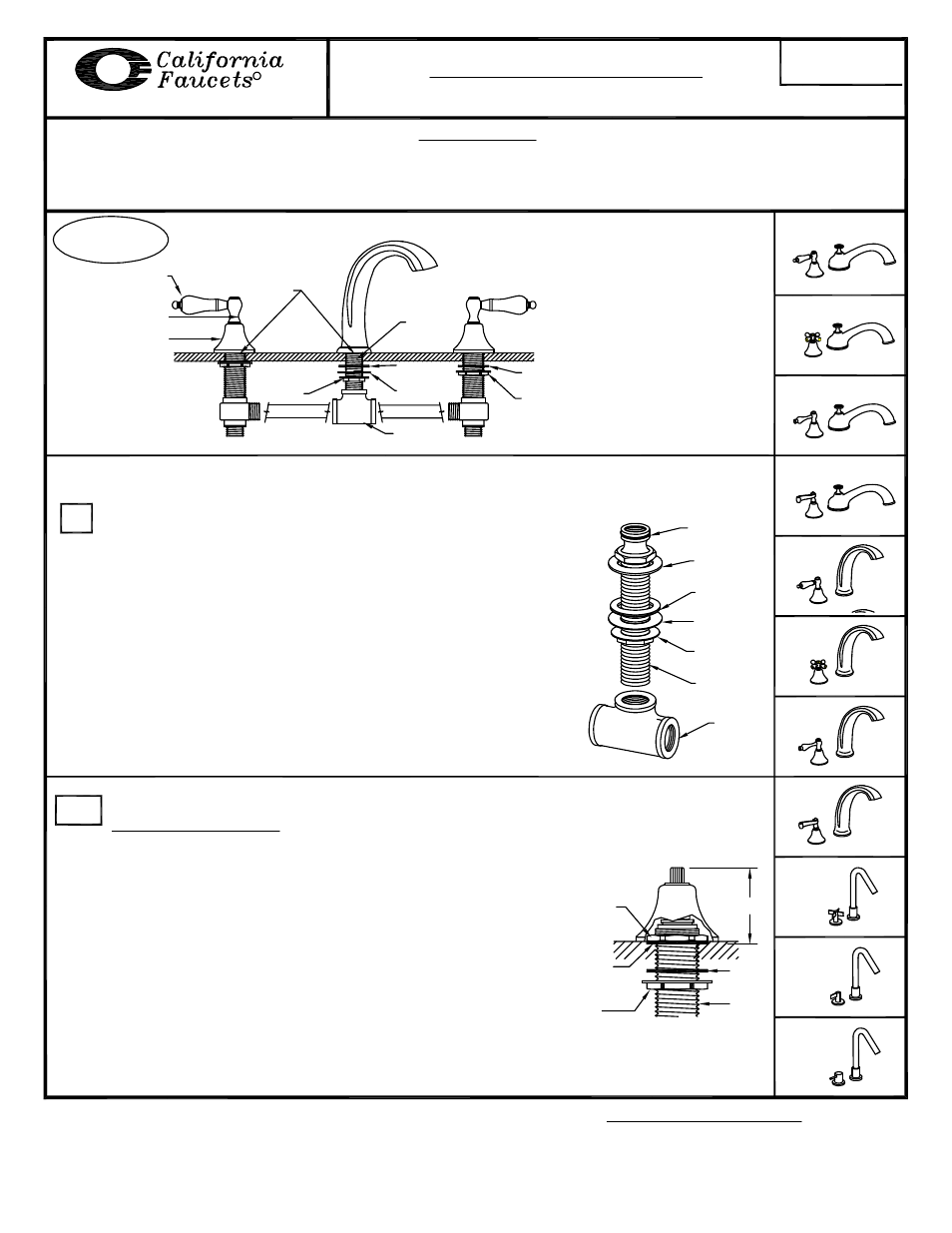

Fig. 1
1
Fig. 2
-Remove tee, bottom brass nut, teflon washer and rubber washer from
Quick Connect assembly.
-Ensure that O-ring is properly seated in the brass washer. ( See Fig. 3)
-Insert Quick Connect assembly through spout hole in deck.
-Quick connector spout shank may need to be shortened at time of
installation. This will vary by series type & installation conditions.
-Re-install rubber washer, teflon washer and brass nut from
underneath deck and tighten firmly.
-Seat spout onto Quick Connect
-Ensure spout is in the proper position, then tighten set screw at base
of spout.
-Apply approximately three to five wraps of teflon tape to spout shank.
Thread on tee and tighten firmly. Align as necessary. O-ring
Brass Washer
w/ O-ring
Rubber
Washer
Teflon
Washer
Brass
Nut
3/4" NPT
Spout Shank
Connector
Tee
***NOTE: SHUT OFF WATER SUPPLY BEFORE BEGINNING INSTALLATION***
Rubber
Washer
Tefflon
Washer
Brass
Nut
Install spout:
NOTE:
-The manufacturer recommends
the use of hard piping (not flex
connections) for all connections.
Series #2108
Shown
-It is also recommended that an
access panel be provided for
all Roman Tub installations.
Fig. 3A
Fiber
Washer
Bottom
Nut
Top
Nut
Fiber
Washer
2 3/8"
NOTE: Due to sediment in the water it may
be necessary on occasion to remove the aerator
and clean the screen with a soft bristle toothbrush.
Ref. RTBLD1-INSTL (V 01) 09/06/06 P1
IMPORTANT CLEANING NOTICE
Please refer to Finish Care Instructions for complete
cleaning information. Wipe frequently with a soft, damp
cloth. Never use acids, harsh abrasives or detergents
.
#2108-SC
#2108-LEV
#2108-CR
Scroll Handle
Lever Handle
Cross Handle
Porcelain Handle
Cross Handle
#2208-CR
#2208-ML
Metal Lever Handle
Metal Cylinder Handle
#2208-CY
#2008-PL
Porcelain Handle
Cross Handle
#2008-CR
#2008-SC
Lever Handle
#2008-LEV
Scroll Handle
#2108-PL
NOTE: Hot & cold valves are labeled: cold=blue & hot=red.
-Loosen handle set screws with Allen key provided. Remove handle,
escutcheon, top nut & fiber washer.Turn bottom nut with fiber washer
down the valve until stops, (repeat for other valve).
-Insert valve through hole from below and install fiber washer, top nut,
and adjust to proper height. (See Fig. 3), (repeat for other valve).
-Tighten the bottom nuts to secure the valves onto sink or countertop.
-Install trim parts escutcheons and handles and tighten handle set
screws with allen key provided.
Reminder: Please retain Allen key as handles may require
re-tightening with normal use.
Install valve bodies:
For series 20 & 21
2A
Valve
(Builder's Series)
