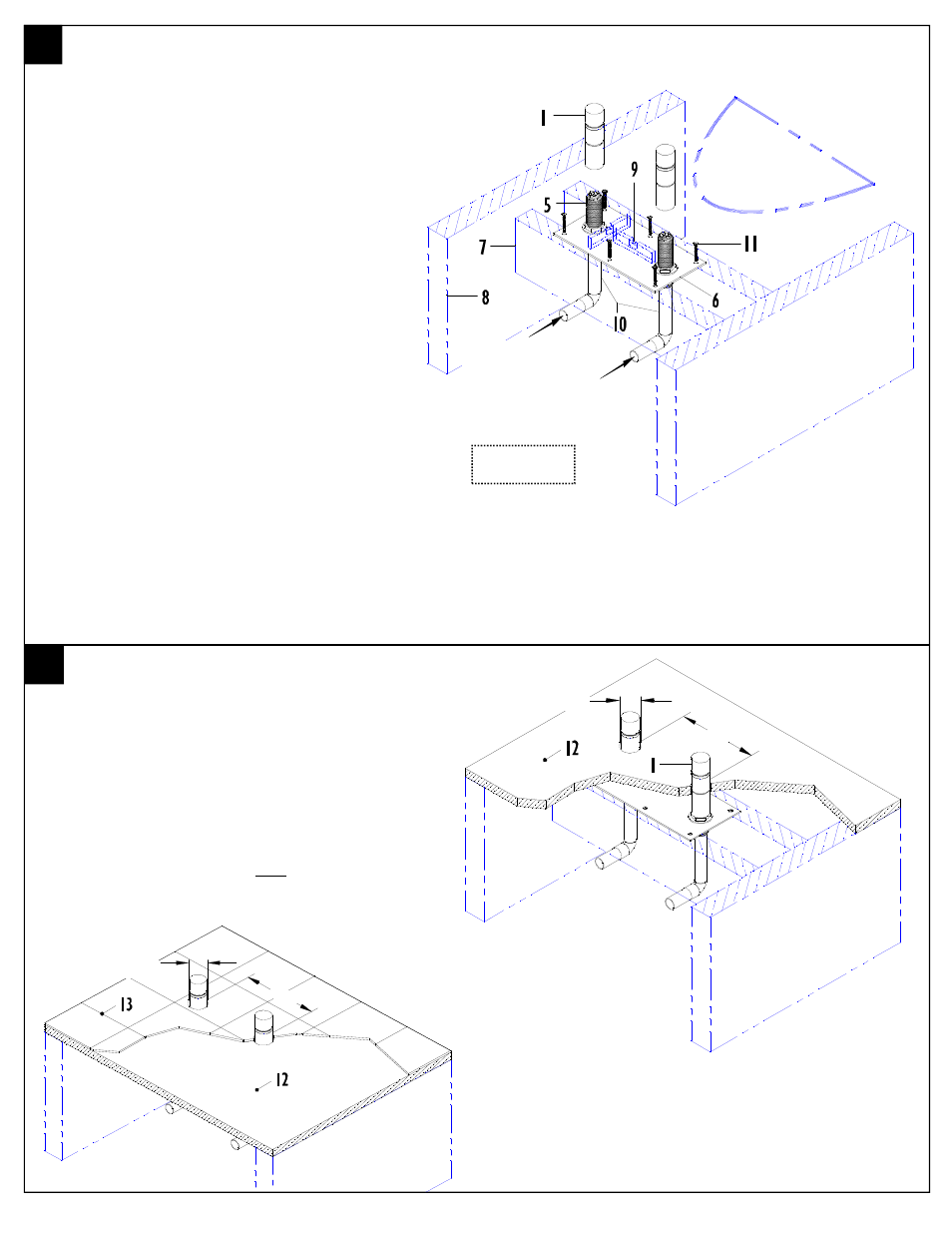

INSTALLING IN WOOD FLOOR
• Determine location of tub & faucet prior to
proceeding
Important: It is the responsibility of the INSTALLER to ensure
that the floor rough is properly secured to all sub-floor construction.
All local building and plumbing codes and/or ordinances, shall be
followed to confirm proper secure installation.
• After determining tub location preparing the floor is
necessary to properly support the rough PLATE❻
by using 2 x 4 wood cross SUPPORT❼ which are
attached floor JOIST❽
Important: It is the responsibility of the INSTALLER to have
some knowledge of finished floor thickness before proceeding.
• Place MUDGUARDS❶ onto NIPPLES❺
• Use a LEVEL❾ to properly level the PLATE❻ and
SUPPORTS❼ in all directions; vertical height of
PLATE❻ is determined by using the MIN/MAX
finished floor marks on MUDGUARD❶
• Verify that copper PIPES❿ attached to bottom of
NIPPLES❺ clear SUPPORT❼; adjust in necessary
• Using SCREWS⓫ secure the PLATE❻ to both
SUPPORTS❼ and attach to floor JOIST❽
• Connect water supply to preassembled copper
PIPES❿ and check for leaks
FINISHED FLOORING (on wood)
Important: It is the responsibility of the INSTALLER to have
some knowledge of finished floor thickness before proceeding.
• Apply top floor SUBSTRATE⓬
around
MUDGUARDS❶, the two through holes shall be
Ø
1-5/16” to 1-1/2” diameter and 7” center to
center
• Apply top floor COVERING⓭ (e.g. tile, stone,
etc…) to floor SUBSTRATE⓬
• Finished floor COVERING⓭ must fall between the
MIN/MAX marks on MUDGAURD❶ for proper
installation of Floor Mounted Tub Filler Faucet
Ø
1-5/16 to 1-1/2”
7”
HOT
supply
COLD
supply
TUB
location
Use Rigid
Copper Pipe
Ø
1-5/16 to 1-1/2”
7”
