6 Operation
27 E-812/816 Soxhlet Operation Manual, Version B
6 Operation
This chapter gives examples of typical instrument applications and instructions on how to operate the
instrument properly and safely.
6 .1 Main screen
1 2 3
4
6
7
11
10 9
5
8
12 a Functional button to open the solvent tank valve
b Functional button to open the main menu
c Functional button to move the rack down
d Symbol for the heating (on or off)
e Symbol for the solvent tank valve (open/close)
f Symbol for cooling medium valve (open/close)
g Symbol for cooling medium running (on/off)
h Current beaker situation (Extraction, Rinsing,
Drying, Beaker active, Beaker inactive Error,
Abort) with position number
i Remaining time for the running method
j Extraction step / status
k Selected solvent / operation mode
l Method name

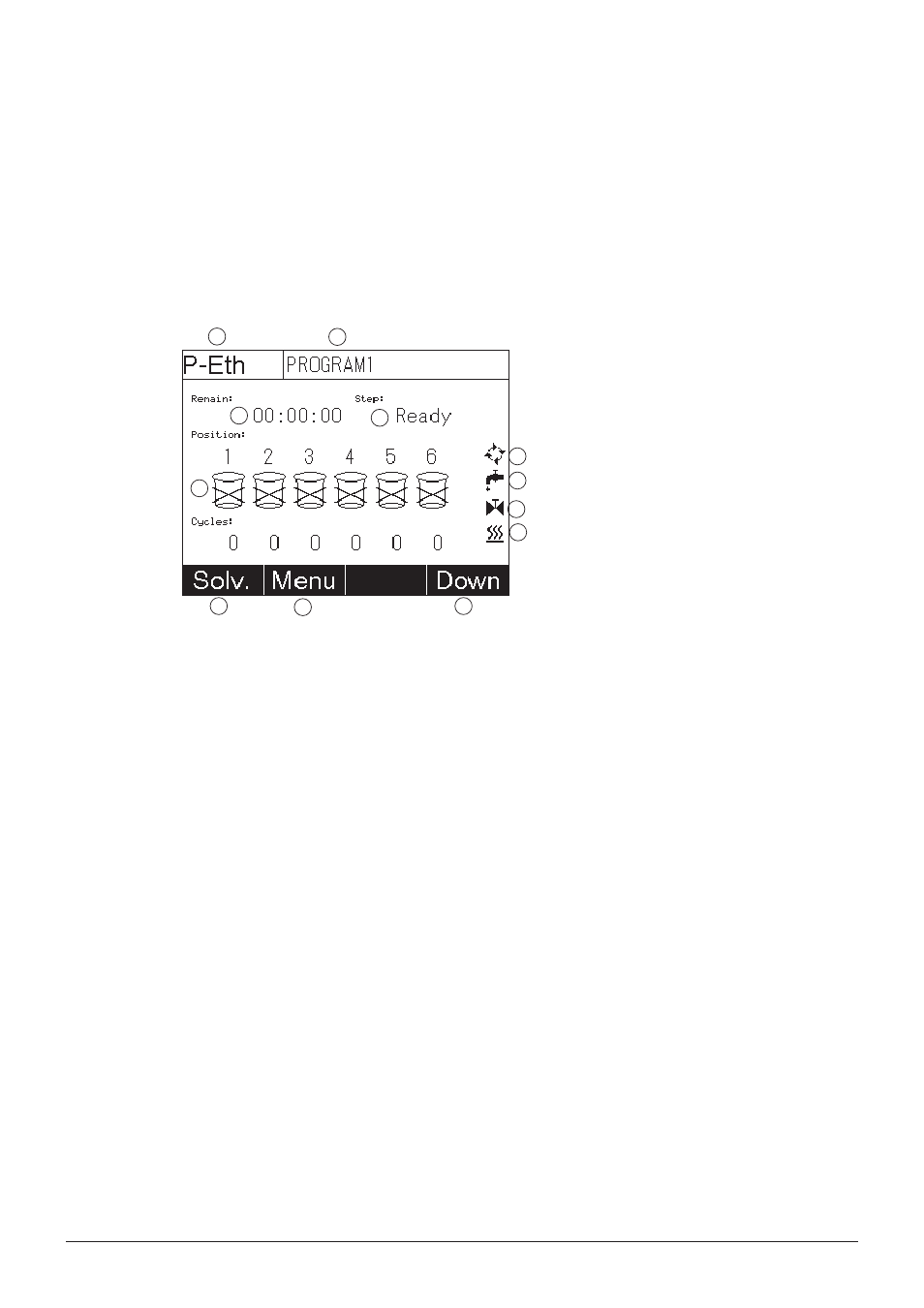

Fig. 6.1: Display elements on the main screen
