Save a Configuration
The File menu contains two save functions—s
ave
... and s
ave
a
s
...—that are used to store up to 16
configurations on a PC’s local disk or connected USB memory device.
If no external device is connected, the default boot drive is automatically selected (typically this is C:\).
Mixer Configurations and their associated 20 Mix Presets are saved to the root of the storage device within
the Aviom folder. (The Aviom folder and its underlying folder structure will be automatically created the
first time a Mixer Configuration is saved if they do not already exist.)
Using the s
ave

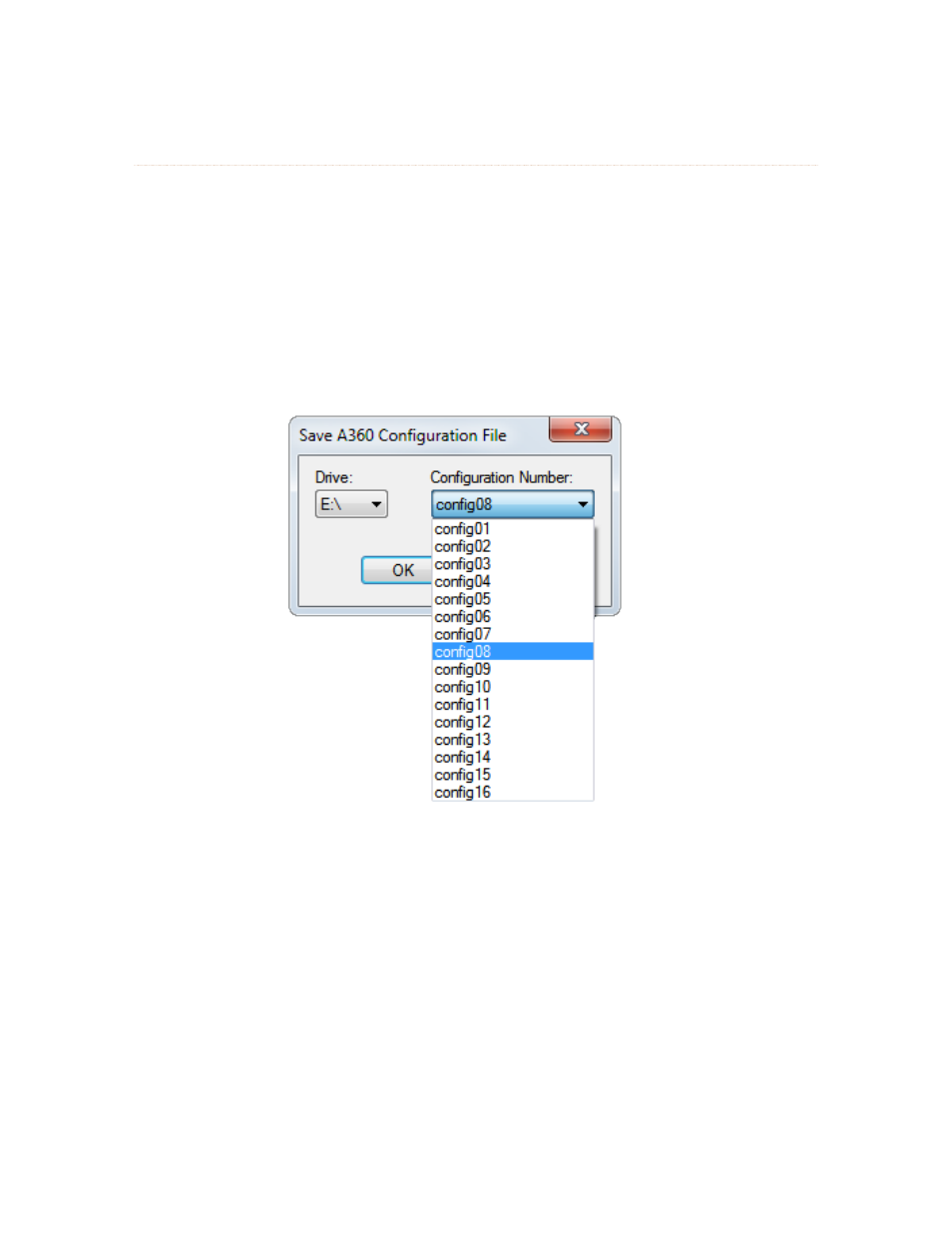

... command for the first time will open a dialog box with drop-down menus that allow you
to select the Drive where configurations will be stored, and the Configuration Number to be used.
Choose a location where the files will be saved.
Click the oK button to save the Configuration to the selected location or click the c
ancel
button to return
to A360 Channel Manager without saving. If you continue editing and want to save the new changes, use
the s
ave
command again; the file on disk will be overwritten without opening the dialog box. If you want
to save the Configuration to a different location after making changes, use the s
ave
a
s
... command which
will automatically open the disk and configuration number selection dialog box.
Storage Devices
The Mixer Configuration and Mix Preset files created with A360 Channel Manager are saved to the root
directory of the selected storage device. The folder path used for file storage is C:\Aviom\mixer_config_
files\banka. Do not change the folder locations or file names. Storage devices must be PC formatted.
Devices may be partitioned, but non-PC partitions will be ignored.
