Replacing the Fuse in a 120V instrument
To replace the fuse in a 120V ANKOM 200 Fiber Analyzer, follow the procedure detailed below.
1. Turn off the instrument power and unplug the
Power Cord from the outlet.
2. Using a flat blade screwdriver, twist the slot on
the fuse holders clockwise ¼ turn to open.
3. Replace the 15 amp glass or ceramic fuse.
4. Install the fuse in the fuse holder.
5. Re-install the fuse holder into the instrument.
Reset/replace the Circuit Breaker in a 220V instrument
To reset/replace the circuit breaker in a 220V ANKOM 200 Fiber Analyzer, follow the procedure detailed below.
1. Turn off the instrument power and unplug the
Power Cord from the outlet.
2. Push the re-settable circuit breaker in.
3. If the breaker will not reset, then replace it.
Cleaning the exterior of the instrument
Acid residue left on the exterior of the instrument can damage external electrical components. To clean the exterior
of the instrument, wipe the outside cabinet with a retail window cleaner.

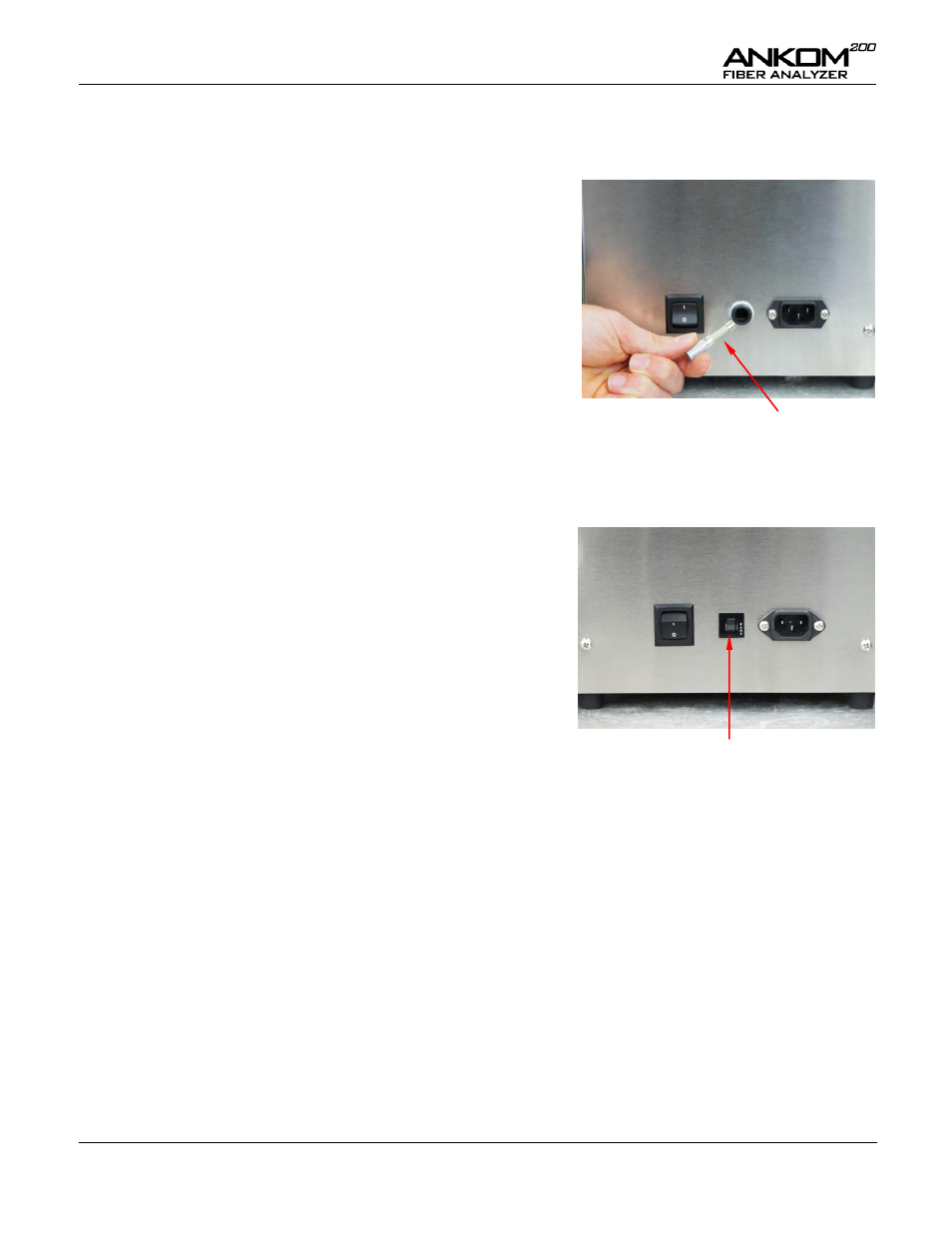

Fuse
Re-settable
Circuit Breaker
