Patch Sockets
PATCH SOCKETS

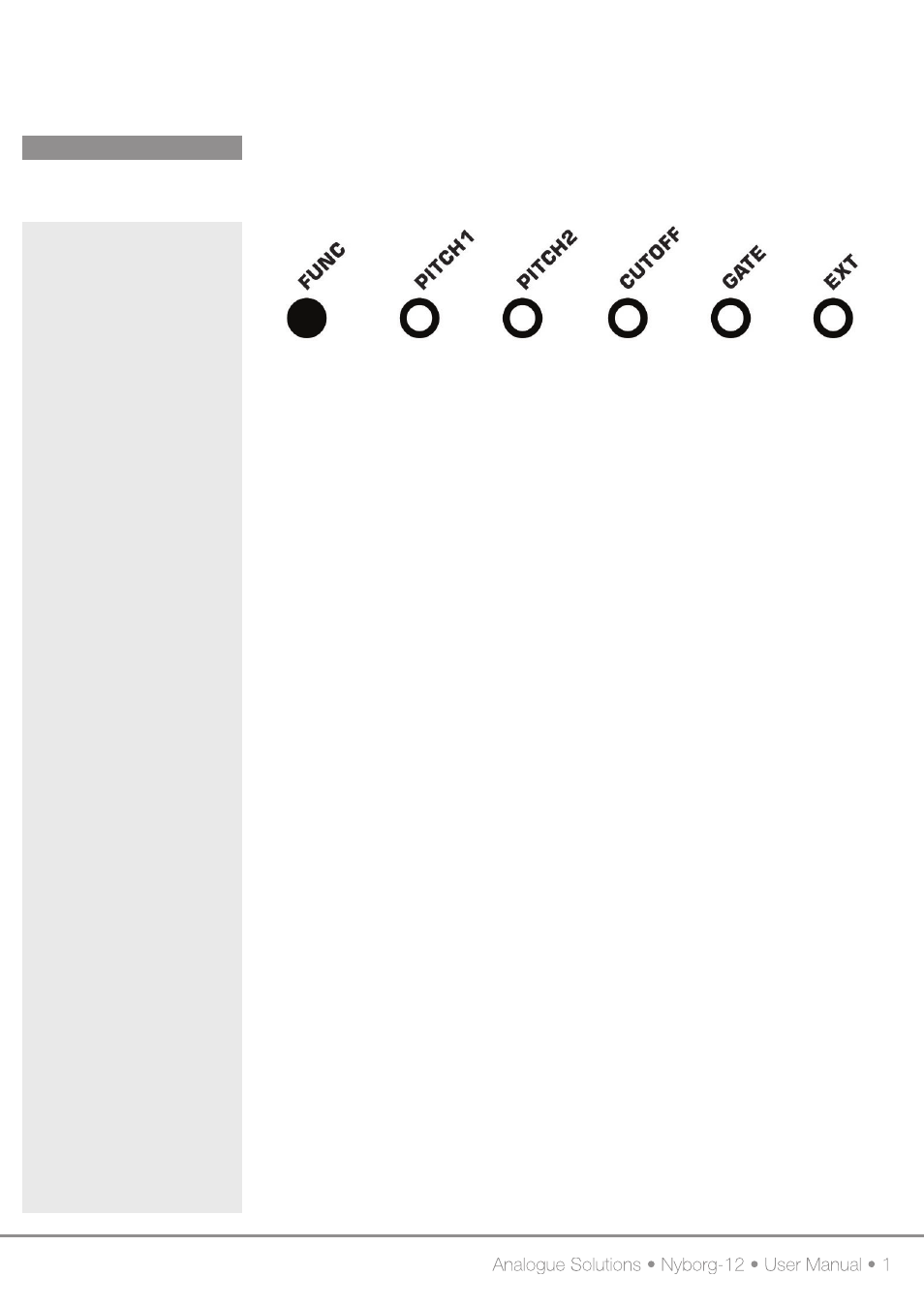

Nyborg has some 3.5mm mono CV sockets on the top panel to allow optional patching
some essential signal. Typically you might want to use these to control the synth from
an analogue sequencer, such as Analogue Solutions Oberkorn.
PITCH1
This is a 1V/Octave pitch CV input to control VCO1’s pitch from an external source,
such as the Oberkorn analogue sequencer.
PITCH2
This is a 1V/Octave pitch CV input to control VCO2’s pitch from an external source,
such as the Oberkorn analogue sequencer.
CUTOFF
This is a frequency cutoff CV input to control the filter’s cutoff point from an external
source, such as the Oberkorn analogue sequencer.
GATE
This is a Gate input to trigger the two Envelopes from an external gate, such as the
Oberkorn analogue sequencer Gate X/Y outputs.
EXT
This is control voltage input to allow external CV signals to be patched into the synth.
The routing is then selected via the various MODULATION SOURCE rotary switches.
Use a voltage from an external source, such as the Oberkorn analogue sequencer CV
outputs.
