AIP-W411 150M Wireless 11N Router
- 70 -
Click the Delete All button to delete all the entries.
Click the Previous button to view the information in the previous screen, click the Next button to
view the information in the next screen.
4.13 Bandwidth Control

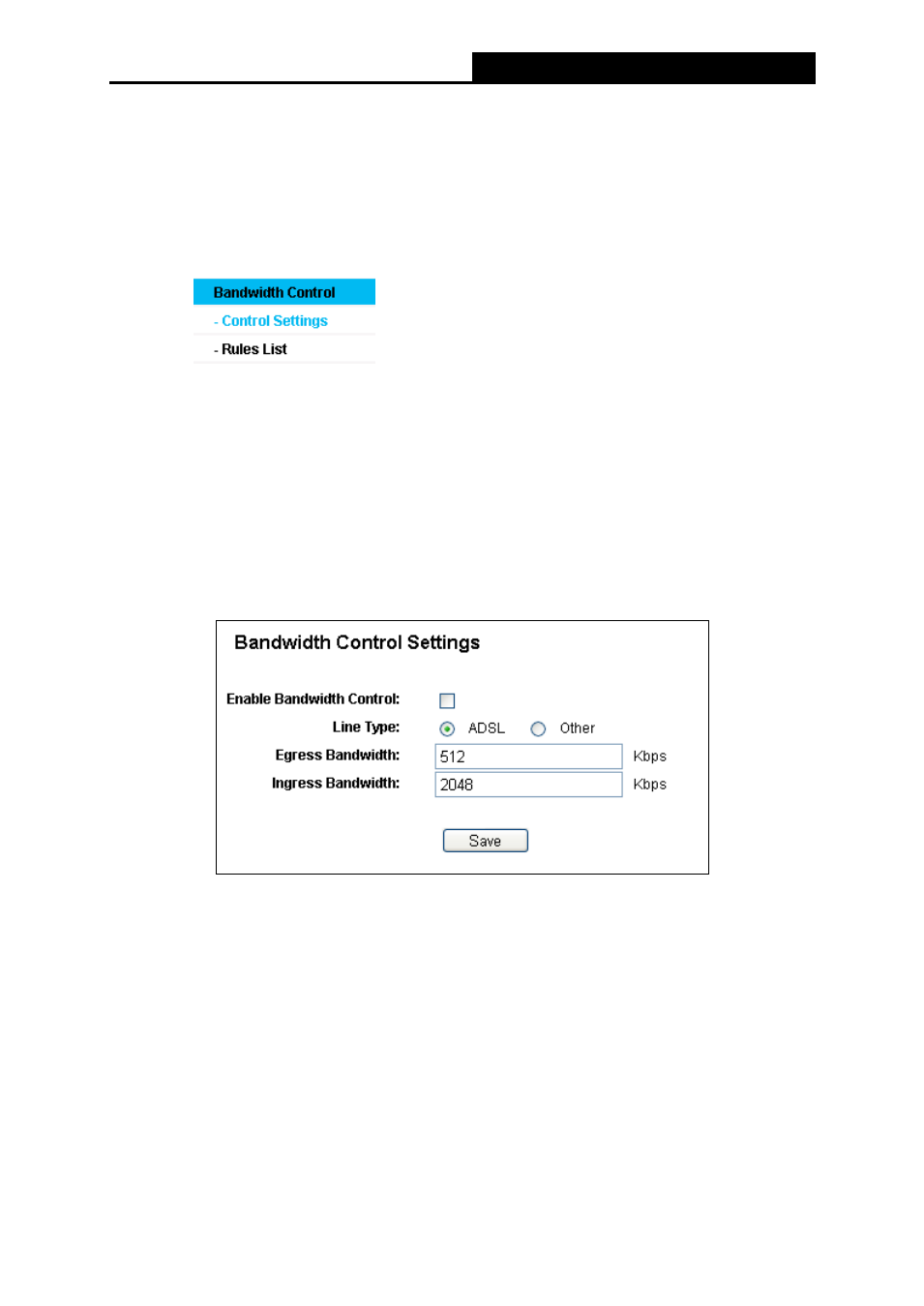

Figure 4-59
There are two submenus under the Bandwidth Control menu as shown in Figure 4-59. Click any of
them, and you will be able to configure the corresponding function. The detailed explanations for
each submenu are provided below.
4.13.1 Control Settings
Choose menu “Bandwidth Control → Control Settings”, you can configure the Egress
Bandwidth and Ingress Bandwidth in the next screen. Their values you configure should be less
than 1000000Kbps.
Figure 4-60 Bandwidth Control Settings

Note:
For optimal control of the bandwidth, please select the right bandwidth type and ask your ISP for
the total bandwidth of the egress and ingress.
4.13.2 Rules List
Choose menu “Bandwidth Control → Rules List”, you can view and configure the Bandwidth
Control rules in the screen below.
