AIP-W411 150M Wireless 11N Router
- 19 -


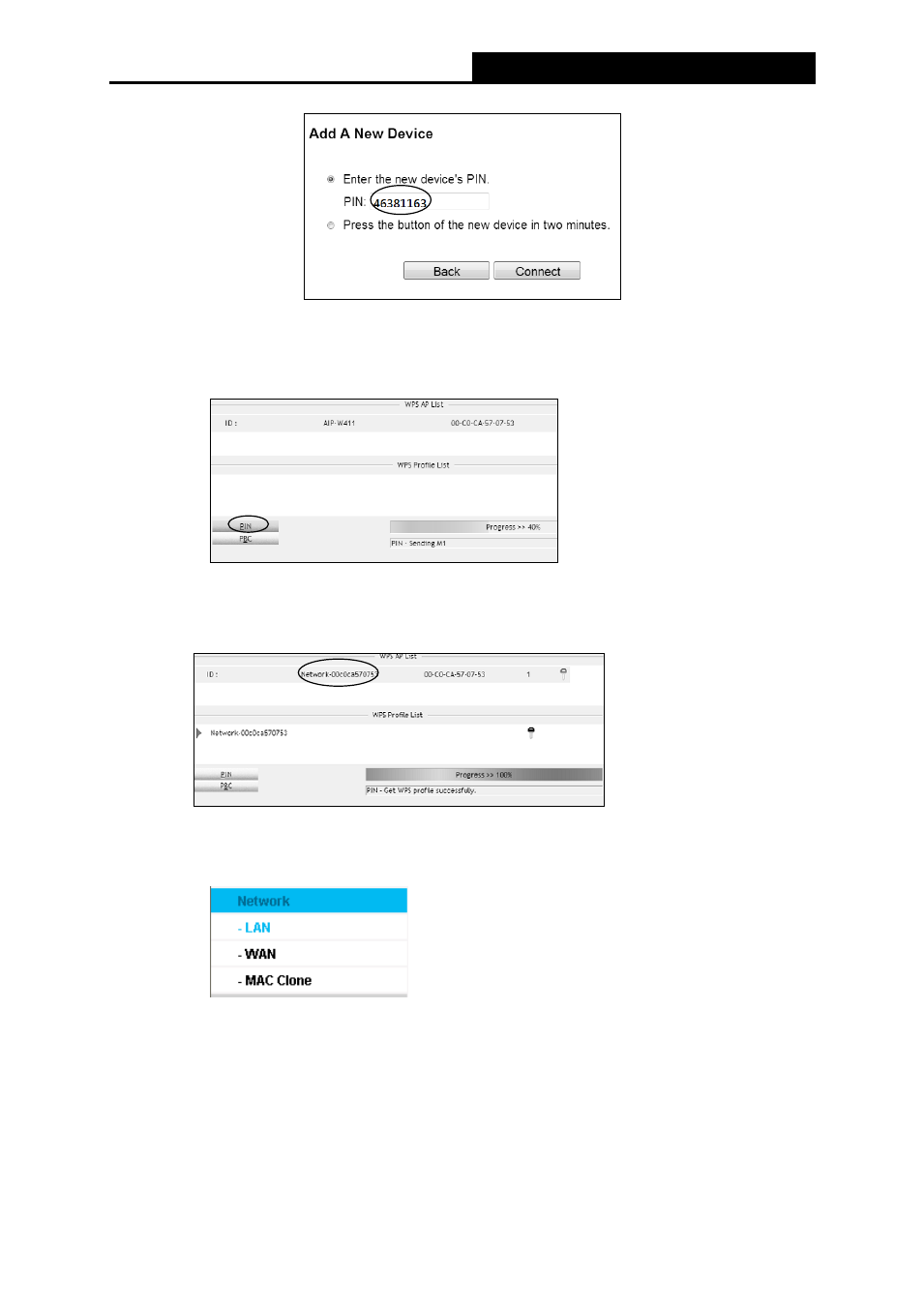

Tip,
Press the PIN button to speed up the synchronization.
Finally, after the PIN code is synchronized the SSID will be displayed in a scramble
text format.
4.5 Network
Figure 4-5 the Network menu
There are three submenus under the Network menu (shown in Figure 4-5): LAN, WAN and MAC
Clone. Click any of them, and you will be able to configure the corresponding function.
4.5.1 LAN
Choose menu “Network → LAN”, you can configure the IP parameters of the LAN on the screen
as below.
