AIP-W411 150M Wireless 11N Router
- 65 -
4.11.3 Target
Choose menu “Access Control → Target”, you can view and set a Target list in the screen as
shown in Figure 4-52. The target list is necessary for the Access Control Rule.

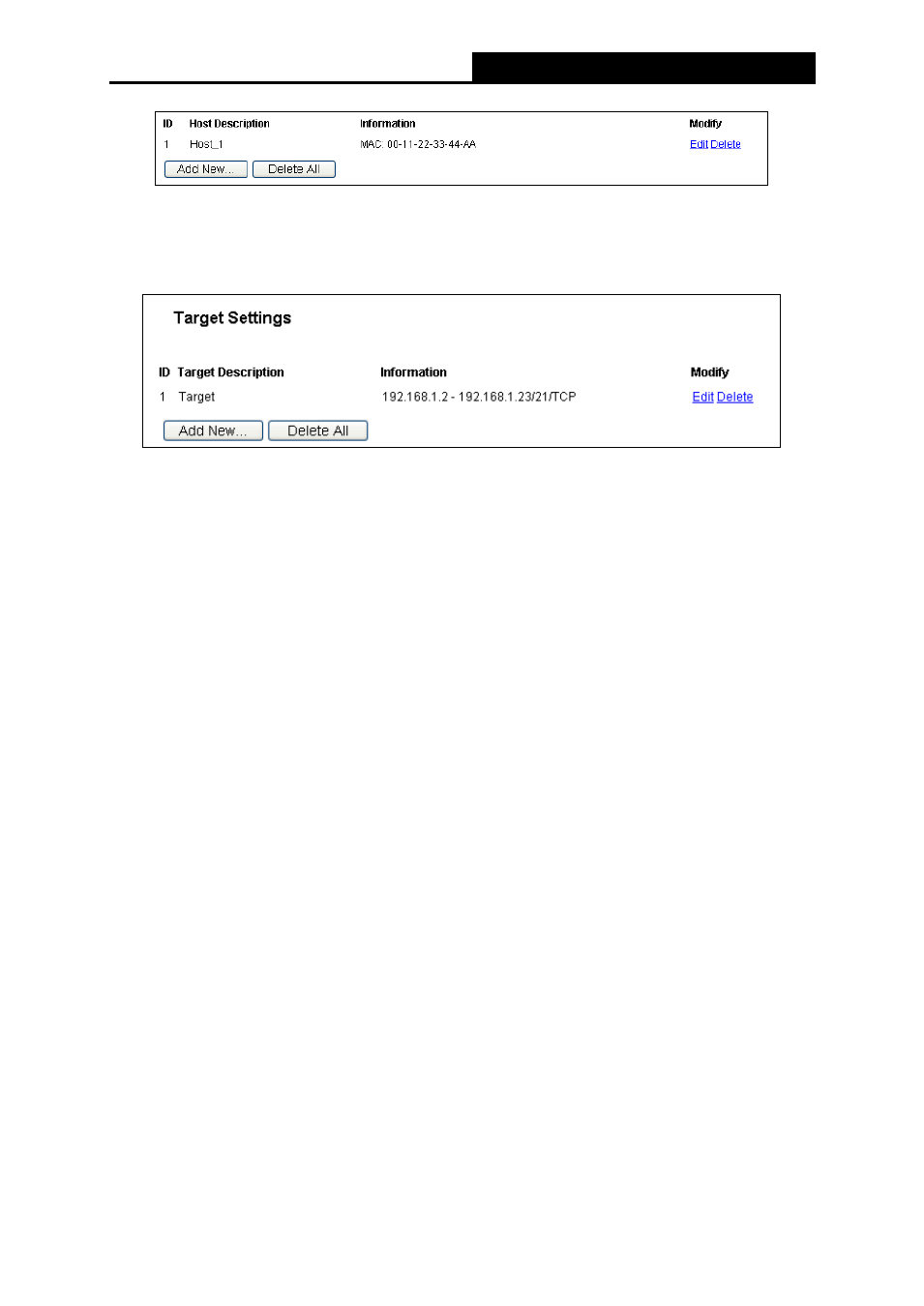

Figure 4-52 Target Settings
 Target Description - Here displays the description about the target and this description is
unique.
 Information - The target can be an IP address, a port, or a domain name.
 Modify - To modify or delete an existing entry.
To add a new entry, please follow the steps below.
1. Click the Add New … button.
2. In Mode field, select IP Address or Domain Name.
 If you select IP Address, the screen shown is Figure 4-53.
1) In Target Description field, create a unique description for the target (e.g. Target_1).
2) In IP Address field, enter the IP address of the target.
3) Select a common service from Common Service Port drop-down list, so that the
Target Port will be automatically filled. If the Common Service Port drop-down list
don ’t have the service you want, specify the Target Port manually.
4) In Protocol field, select TCP, UDP, ICMP or ALL.
 If you select Domain Name, the screen shown is Figure 4-54.
1) In Target Description field, create a unique description for the target (e.g. Target_1).
2) In Domain Name field, enter the domain name in the blank. You can enter 4 domain
names.
3. Click the Save button.
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page, or click the Previous button return to the previous
page.
