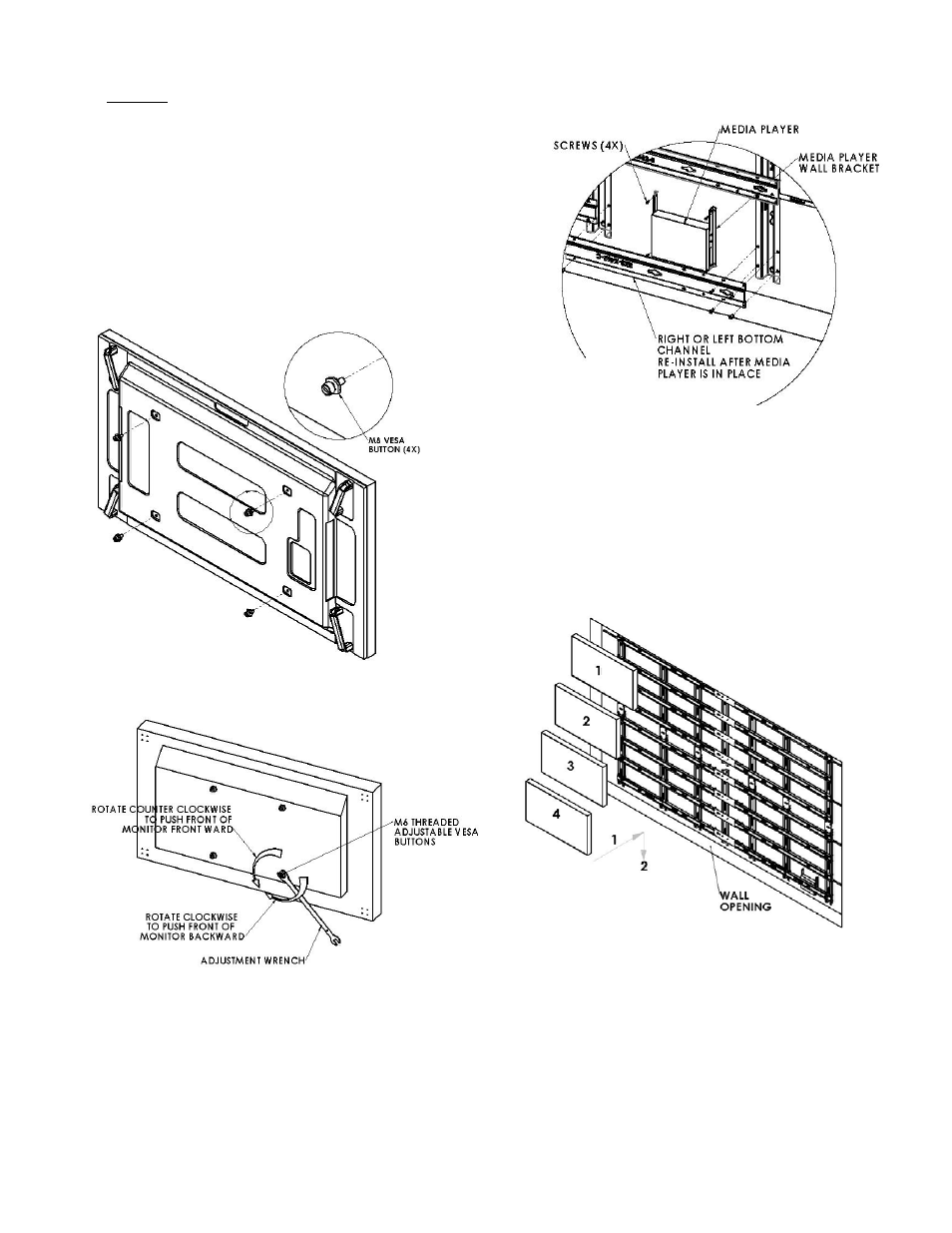

Figure 9
Step 7: Optional
Install Media Player
Choose and remove the bottom left or right lower side H-slat by
unscrewing its flat head screws (Figure 7). Install the media player to
the wall in between the two vertical V-channels using the appropriate
fasteners for the media player’s bracket. Re-install the bottom lower side
H-slat (Figure 7).
Step 8: Install M8 VESA buttons to monitors
Thread the M8 adjustable VESA buttons to the VESA mounting holes in
the back of each monitor (Figure 8).
Step 9: Install Monitors to the Left Column
Lift up the locking arms on the left side of the frame. Starting with
the upper left monitor, connect power and signal wires to each
monitor then align its four Adjustable VESA buttons with the four
large slots in the H-slats then slide the monitor from left to right
until it stops. Pull down the locking arm to lock monitor into place
(Figure 9). Repeat step 9 for the three lower monitors.
Step 10: Note on alignment:
While installing monitors, check for front and side alignment of
the monitors. The surfaces of all monitors must be aligned and flush to each other. If one or more screens are tilted more than others
use the adjustment wrench to reach the hex portion of the M8 adjustable VESA buttons at the rear of the monitor and rotate counter
clockwise to pull the front of the monitor forward or clockwise to push it back towards the wall. If access to the rear is not accessible
remove the screen(s) and depending whether the monitor needs to be tilted forward or backward rotate the buttons using the
adjustment wrench, a flat head screw driver or fingers (Figure 10). Reinstall and recheck surface alignments. Repeat where necessary.
Figure 8
Figure 7
Figure 10
