Adaptive Technologies 4X4-UD46A-VWD User Manual
Hovertrack, Series 4x4-ud46a-vwd, Assembly installation guide

© 2011 Adaptive Technologies Group, Signal Hill, CA 90755 USA (562) 424-1100 Rev.00-120712

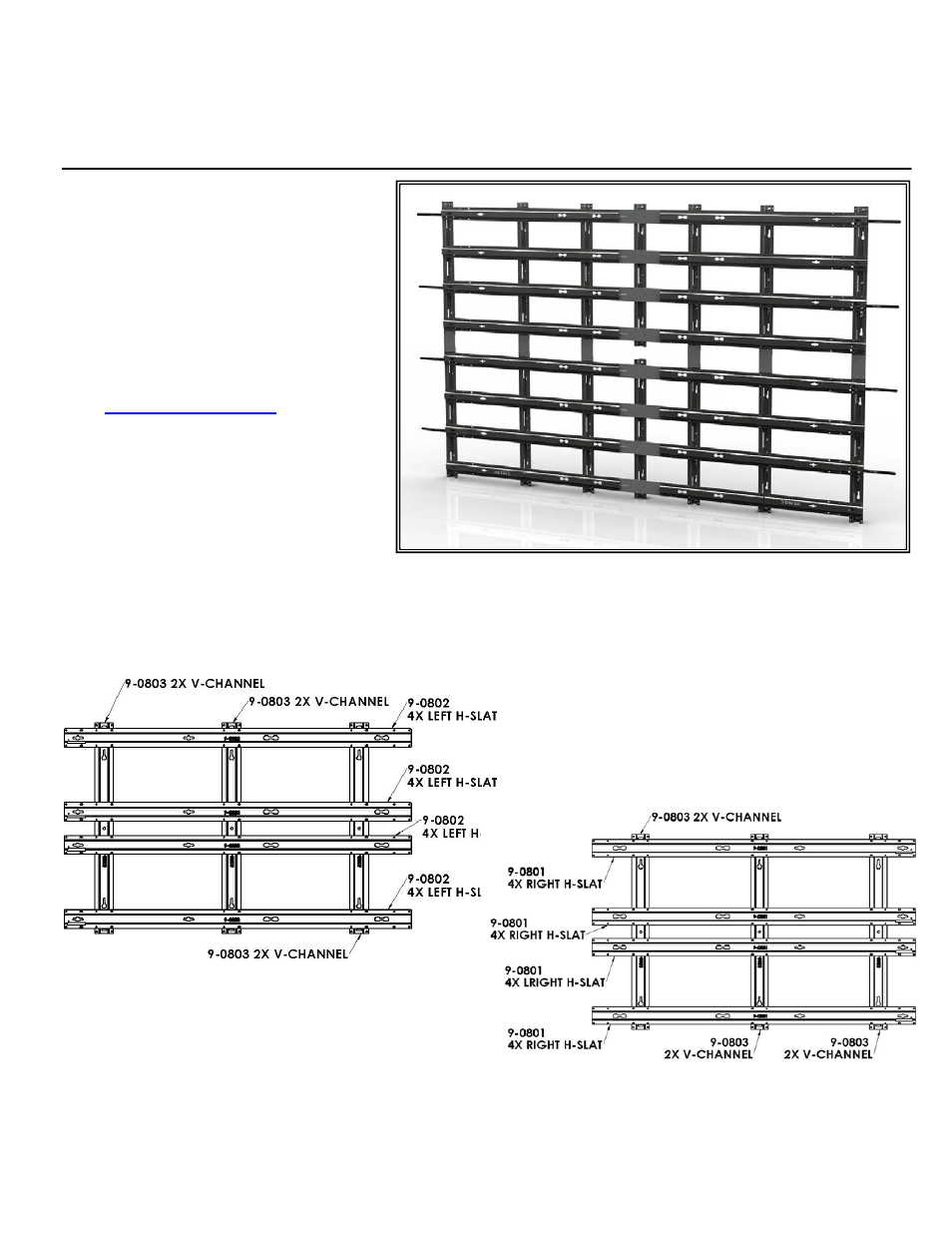

Top Left Frame (Figure 1A)
HoverTrack
®
Series
4X4-UD46A-VWD
Assembly Installation Guide
Important: Assembling video displays is a serious
endeavor that requires experienced professionals.
Improperly assembled equipment can result in
property damage, injury and/or liability to the
installing contractor. Do not attempt to install this
equipment if any part of the assembly is in doubt.
Follow these instructions for the most efficient and
safest assemble results.
Do not attempt to install this product if any of the
parts listed below are missing. If parts are missing,
contact
;
Package Contents:
8 pcs
9-0802 4X Left H-Slat
8 pcs 9-0801 4X Right H-Slat
12 pcs 9-0803 2X V-Channel Assy.
2 PCS 9-0810 4X Center V-Channel assy.
8 pcs
9-0812 UD46A Lock Arm Bracket w/ hrdwr
8 pcs
9-0806 Horizontal Joiner plate
6 pcs
9-0814/9-0804 Vertical Joiner Plate
64 pcs M8 adjustable VESA buttons
1 pc1
Adjustment wrench
42 pcs Adjustable Wood screw Hanger stud
264 pcs Flat head phil. Screw, M6x20mm long
Top right Frame (Figure 1B)
