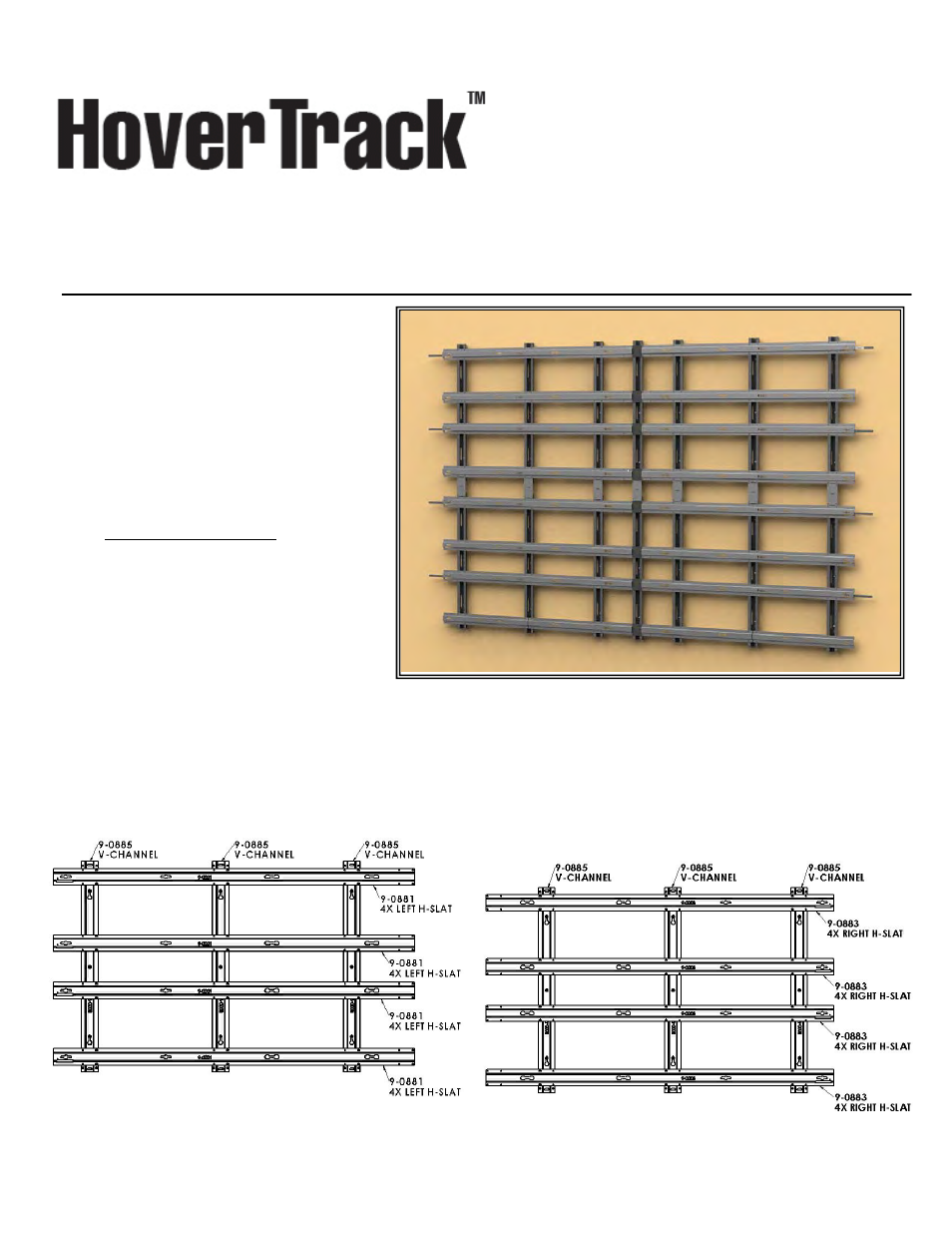

Top Left Frame (Figure 1A)
4X4-UD55A-VWD
Assembly Installation Guide
Important: Assembling video displays is a serious
endeavor that requires experienced professionals.
Improperly assembled equipment can result in
property damage, injury and/or liability to the
installing contractor. Do not attempt to install this
equipment if any part of the assembly is in doubt.
Follow these instructions for the most efficient and
safest assemble results.
Do not attempt to install this product if any of the
parts listed below are missing. If parts are missing,
contact [email protected];
Package Contents:
7 pcs
9-0881 4X Left H-Slat
7 pcs 9-0883 4X Right H-Slat
2 pcs 9-0893 bottom Side H- slat
2 pcs
9-0895 bottom center H- Slat
12 pcs 9-0885 V-Channel Assembly
2 PCS 9-0890 Center V-Channel assembly
8 pcs
9-0888 Lock Arm Bracket
8 pcs
9-0806 Horizontal Joiner plate
6 pcs
9-0897 Vertical Joiner Plate
8 pcs
Nylon/friction washer,.28 IDx.74OD, white
8 pcs
Phil. Pan head screw, M4-12mm long
8 pcs
Nyloc nut, M4
272 pcs Flat head phil. Screw, M6x20mm long
Top right Frame (Figure 1B)
