Rebuilding the RAID Array

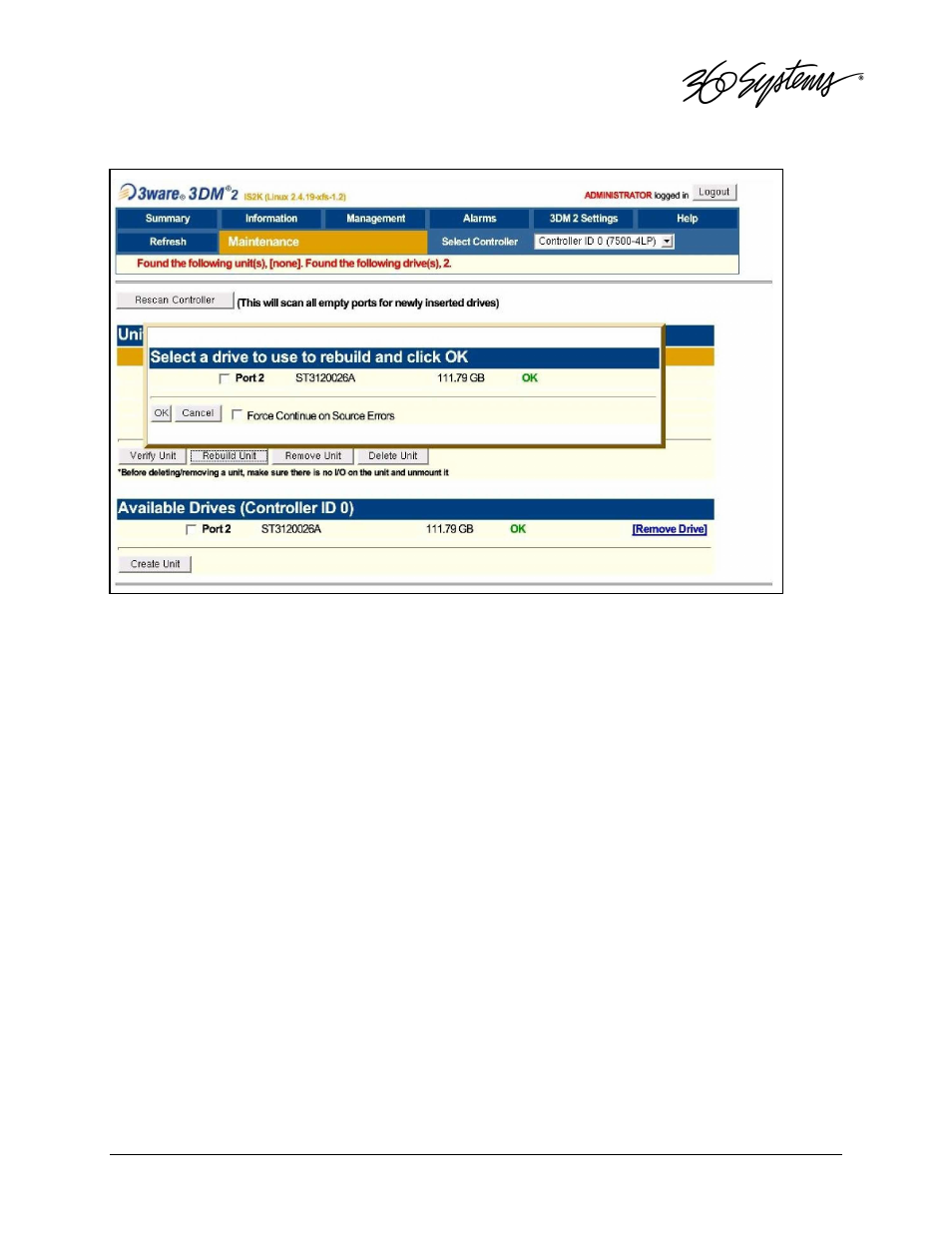

Figure 27: Selecting a Drive to Use in Rebuilding the Array
• Select Rebuild Unit. The REBUILD SCREEN above will appear.
• Select the available drive by clicking the check box.
•
Press OK. The RAID array will begin rebuilding with the new drive. This process may take a
long time, but the Image Server can still be used.
•
When complete, OK will be shown in the status for all ports on the MAINTENANCE menu.
Replacing Hard Drives
The Image Server hard disk drives have been factory tested and configured in a RAID 5 array. Each
drive is numbered (0-3) and must be attached to the correctly numbered data cable. Drive bays are
also numbered.
Please read Removing the Front Panel on page 31 for instructions on accessing the hard drive bays.
Detailed information about how to replace hard drives is on page 46.
