Operations
15
Operations
The Graphical User Interface
The Broadcast Time Delay uses a Graphical User Interface (GUI) to control most functions. A
keyboard and mouse are included, and the user needs to supply an SVGA monitor—either CRT or flat-
panel.
The GUI is divided into four sections: Run/Stop control, Time Delay Set, Input Configuration, and
System Calibration. Controls and displays for each section are described below.

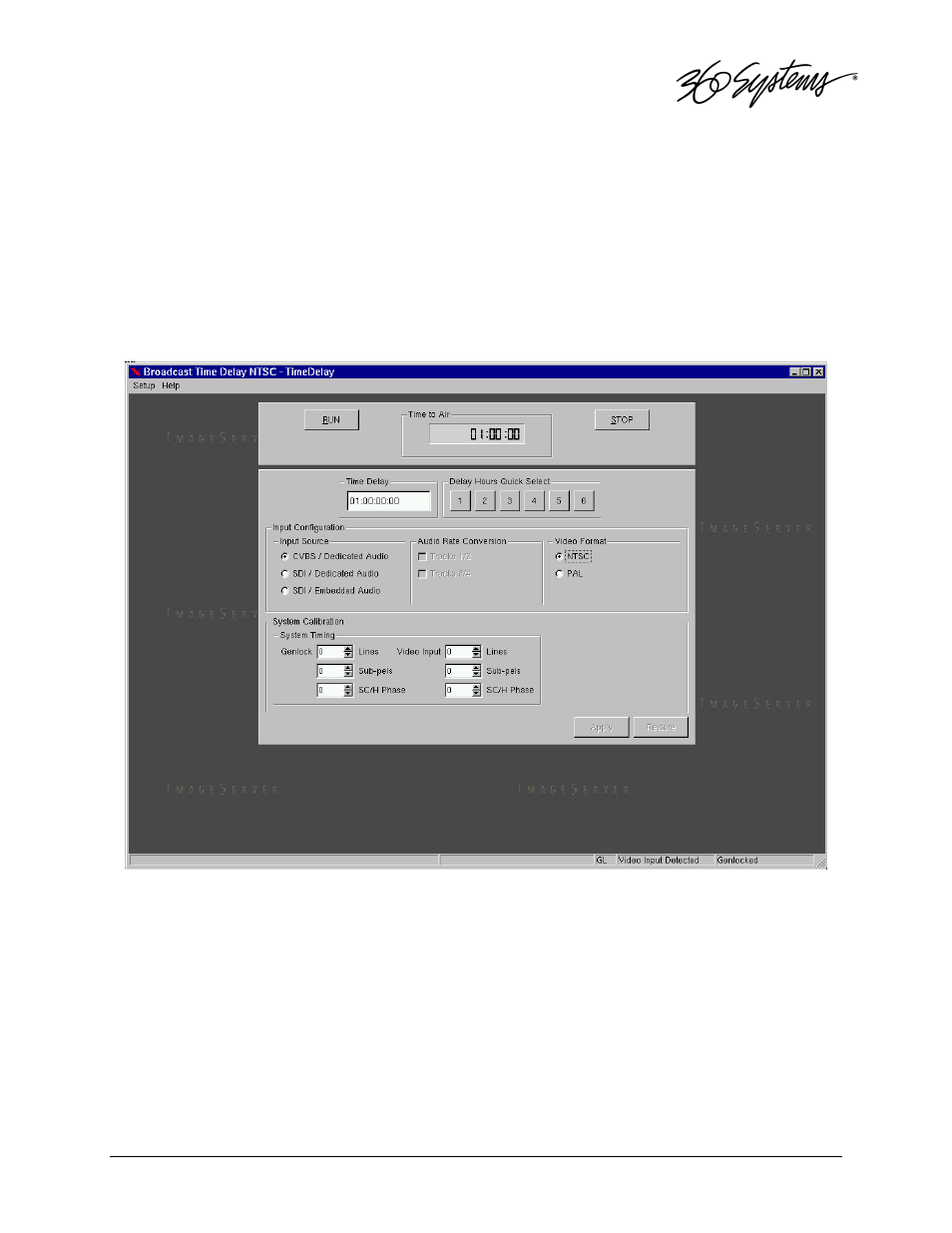

Graphical User Interface
