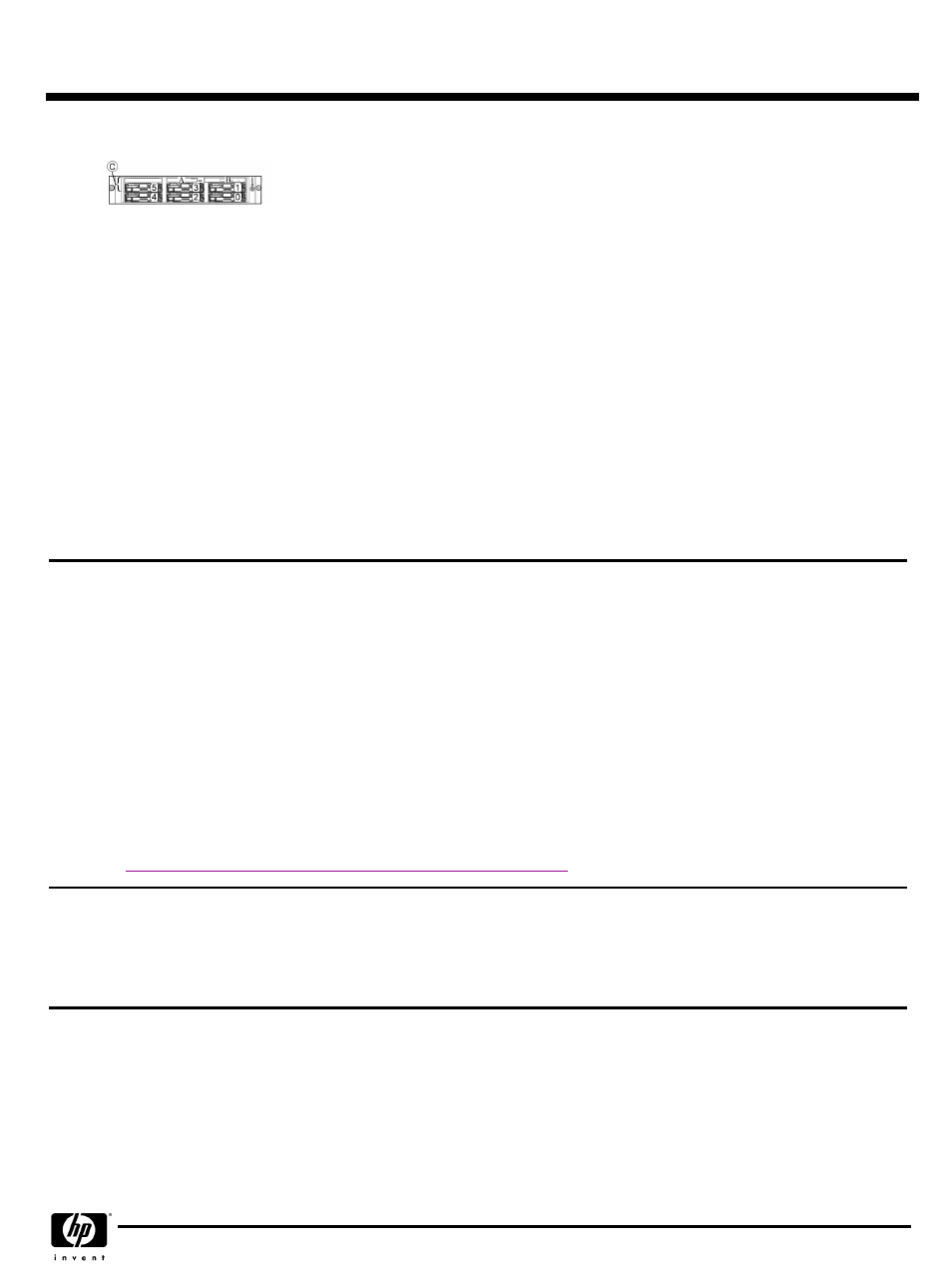

0 - 5 Six 1" Wide Ultra3 SCSI hot plug hard drive bays
A 1.44-MB Diskette Drive
B 24x IDE CD-ROM (Slimline)
C 1.6"drive bay – supports either (1) 1"Hot Plug Drive or (1) 1.6"AIT or 20/40-GB DAT
Hot Plug Tape Drive
Hard Drives Hard Drives Hard Drives Hard Drives
Ultra320 Hot Pluggable Drives Ultra320 Hot Pluggable Drives Ultra320 Hot Pluggable Drives Ultra320 Hot Pluggable Drives
Quantity Quantity Quantity Quantity
Supported
Supported Supported Supported
Position Position Position Position
Supported
Supported Supported Supported Controller Controller Controller Controller
1-inch 1-inch 1-inch 1-inch Up to 6 0-5
146.8-GB 10,000 rpm
72.8-GB 10,000 rpm
36.4-GB 10,000 rpm
72.8-GB 15,000 rpm
36.4-GB 15,000 rpm
18.2-GB 15,000 rpm
Smart Array 5i Controller (integrated on system board)
Smart Array 532 Controller
Smart Array 5302/128 Controller
Smart Array 5304/256 Controller
Smart Array 5312 Controller
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter
64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
NOTE: NOTE: NOTE: NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or
U320 SCSI HBA to support U320 transfer rates.
External Storage External Storage External Storage External Storage
Quantity Quantity Quantity Quantity
Supported
Supported Supported Supported
Position Position Position Position
Supported
Supported Supported Supported Controller Controller Controller Controller
StorageWorks Enclosure 4300
Family
(supports Ultra2/Ultra3 1"
drives only)
Up to 13 External Smart Array 532 Controller
Smart Array 5302/128 Controller
Smart Array 5304/256 Controller
Smart Array 5312 Controller
64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter
64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
MSA 1000 Please see the MSA
1000 QuickSpecs
below to determine
configuration
requirements External Please see the MSA 1000 QuickSpecs (URL below) for the latest list of supported
HBA’s
MSA 1000: http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.HTML
Maximum Storage Capacity Maximum Storage Capacity Maximum Storage Capacity Maximum Storage Capacity – (StorageWorks Enclosure SCSI Attached)
Internal 880.8 GB (6 x 146.8 GB Ultra 320 1² )
External 26.717 TB (13 x (14 x 146.8 GB Ultra 320 1² ))
Total 27.598 TB
QuickSpecs
Compaq ProLiant DL380 G2 Compaq ProLiant DL380 G2 Compaq ProLiant DL380 G2 Compaq ProLiant DL380 G2
Storage
DA - 10902 Worldwide — Version 50 — September 30, 2003 Page 32
