Optional Equipment Connection and Operation
(For CT-27G12/U And CT-32G12/U)
To Audio AMP Connection
TERMINALS ON BACCK OF
CT-27G12/U
TERMINALS ON BACK OF
CT-32G12Ai
F
VIDEO
r L ^ ^ '-1
TO AUDIO
AUDIO
AMP L
r
^ #
INPUT
•

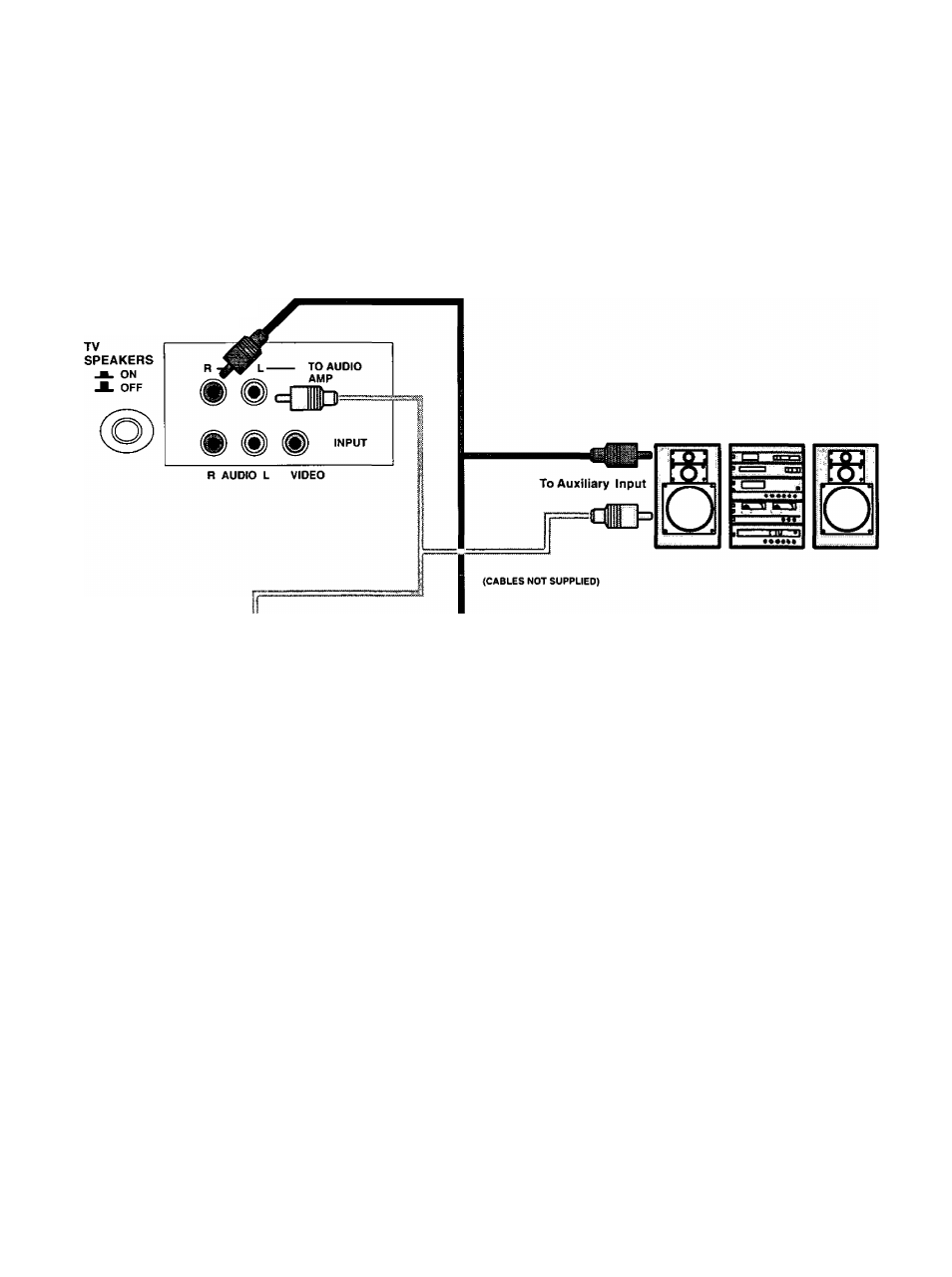

• To Audio AMP
Connect to an external audio amp auxiliary input for monitoring sound through a stereo system.
NOTE: “TO AUDIO AMP" terminals cannot be used for external speakers.
Adjustnfient - When an audio amp is connected to “TO AUDIO AMP” terminals as shown:
1. Press the TV SPEAKERS button located on back of Receiver to turn INT SPEAKERS “ON”. NOTE; In some models
the TV Speakers ON/OFF is located in the Audio menu.
2. Set volume of audio amp to near minimum.
3. Adjust volume of TV to desired listening level.
4. Adjust volume of audio amp to match the level of TV.
5. Press the TV SPEAKERS button located on back of Receiver to turn INT. SPEAKERS “OFF”. NOTE: In some
models the TV Speakers ON/OFF is located in the Audio menu.
6. Volume and mute can now be controlled by the TV Remote Control.
-
