ADJUSTMENT
OPERATION
Preparations:
Make sure that all required connections in the system are
completed.
Turn on the power of this monitor by pressing the Power
On/Off Switch on the front panel.
POWER
ON .
OFF
Under Scanning
Press the Scan Size Selection Switch (SCAN SIZE) once
(switch down -«.) to set the UNDER position.
UNDER
NORMAL

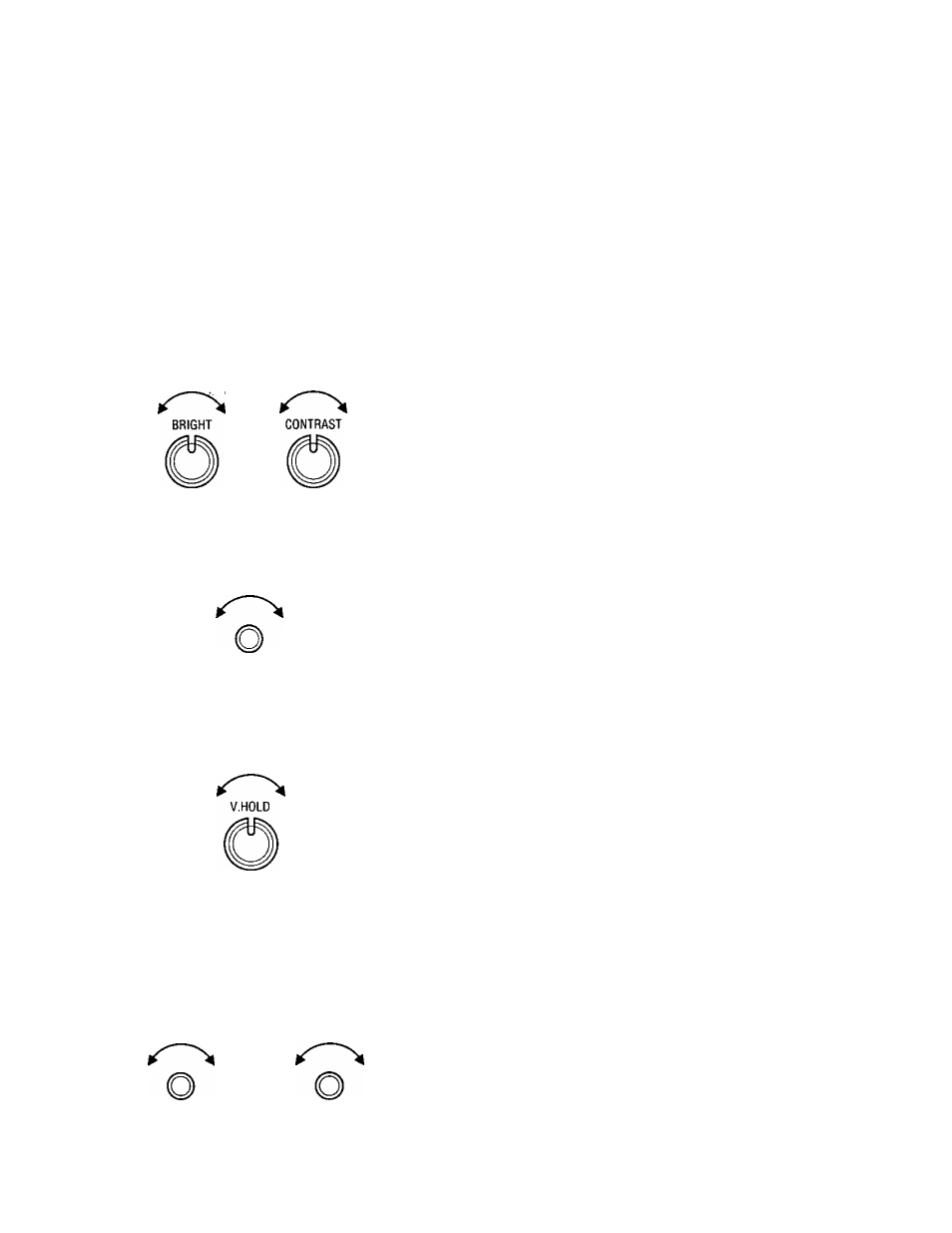

1. Adjust the brightness by the Bright Control (BRIGHT)
and the Contrast Control (CONTRAST) so that the
overall brightness is appropriate and grey tones are
resolved.
SCAN
SIZE
Press again (witch up J.) to NORMAL position.
2. If the picture slips to either side, or a series of horizon
tal lines appear, adjust the Horizontal Hold Control
(H.HOLD) until the picture is stabilized.
H.HOLD
3.
If the picture rolls up or down, adjust the Vertical Hold
Control (V.HOLD) until the picture is stabilized.
The sub controls, HEIGHT and V. LINEARITY, should
be adjusted at the same time to give proper vertical
height
consistent
with
good
vertical
linearity.
Extending
the
height
approximately
6
mm
(1/4") beyond the top and bottom edges of the CRT
mask is recommended.
HEIGHT
V. LIN
-
