S'
1
■

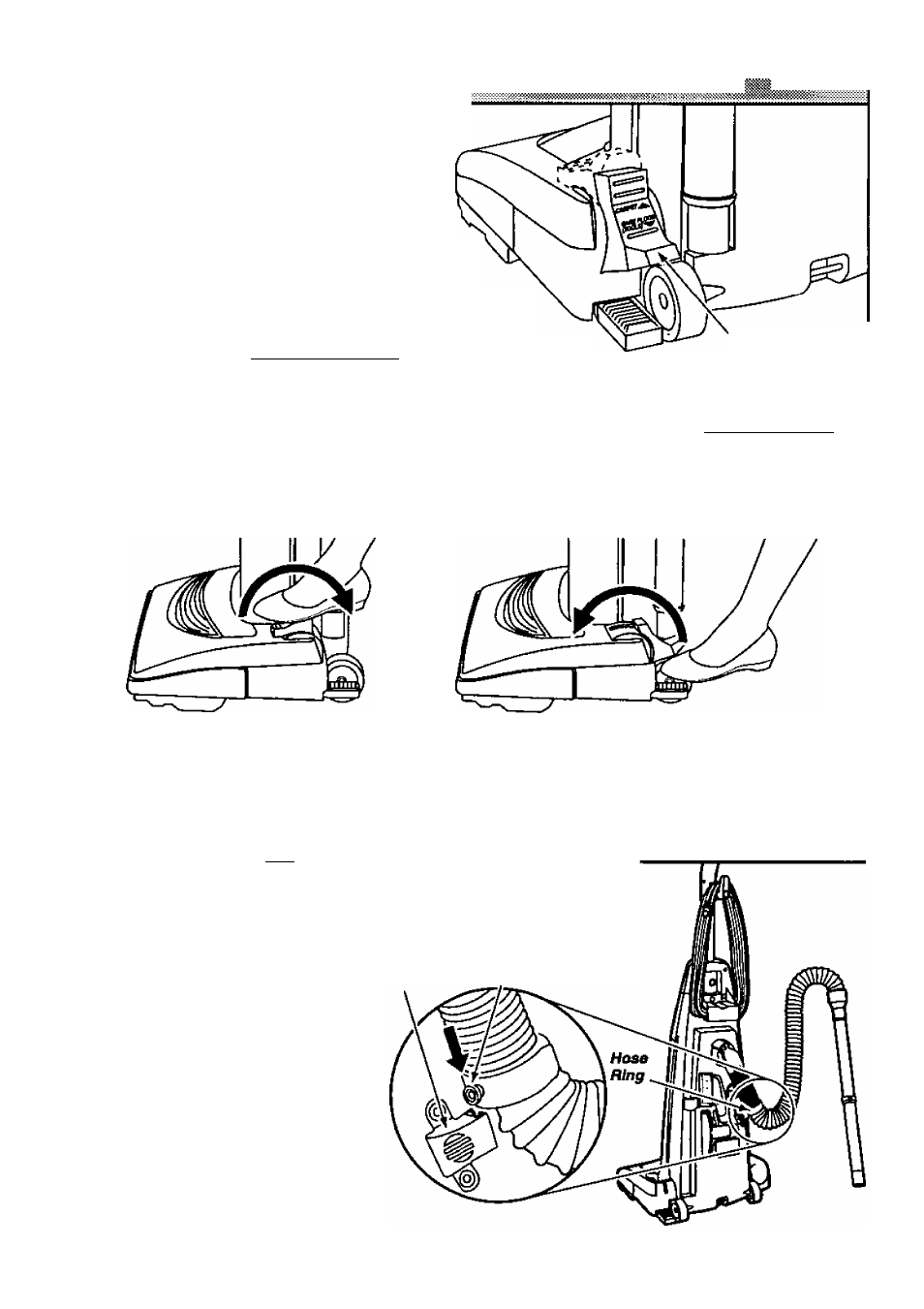

CARPETBARE l^tOOR SELECTOR
To use cleaner on bare floors, the carpet/bare
floor selector on top of the nozzle should
be positioned all the way back and down
toward the bottom of the nozzle until it
locks into place. When the selector is in this
position the agitator does not turn. This is
also the correct position to place the selector in
to use the attachments. Any time the attach­
ments are used the agitator should not be turning.
To use cleaner on carpeted areas, the carpet/bare floor
selector should be
all the wav forward and up to the carpet
position. This will allow the agitator to turn. When carpets are
being cleaned the selector should remain in this position.
Take care when selecting either position to make sure the selector is pushed fully and quickly
as possible to the desired position. Failure to do so can cause the belt to rub on the selector
shaft and may result In the belt becoming hot and creating a burning rubber smell.
To prevent injury when returning the selector to the carpet position, use caution as the selector
can move quickly upward due to tension caused by the belt.
Bara Floor/
Carpet Selector
To clean bare floor
or use ettachmenta
To clean carpet
HOSE RING AND HOSE RING MOUNT
''' . ^ .
The hose ring is a feature designed to prevent tipping of the vacuum
while performing certain tasks that involve the use of the
attachments. To use this anti­
tip feature, place the hose Hose Hose
ring in the hose ring mount as Bing Mount Ring Knob
shown in the illustration.
Rotate this ring on the hose so that
the hose ring knob will align with
the slot in the hose ring mount
and slide the ring down firmly
until it stops. For recommenda­
tions on when to use the hose
ring and the exact location of the
hose ring mount see the ATTACH­
MENTS section.
-
9
-
