REMOVING CLOGS
The hose located on the back of the vacuum cleaner carries the dirt from the nozzle
up to the dust bag. If the hose should become clogged;

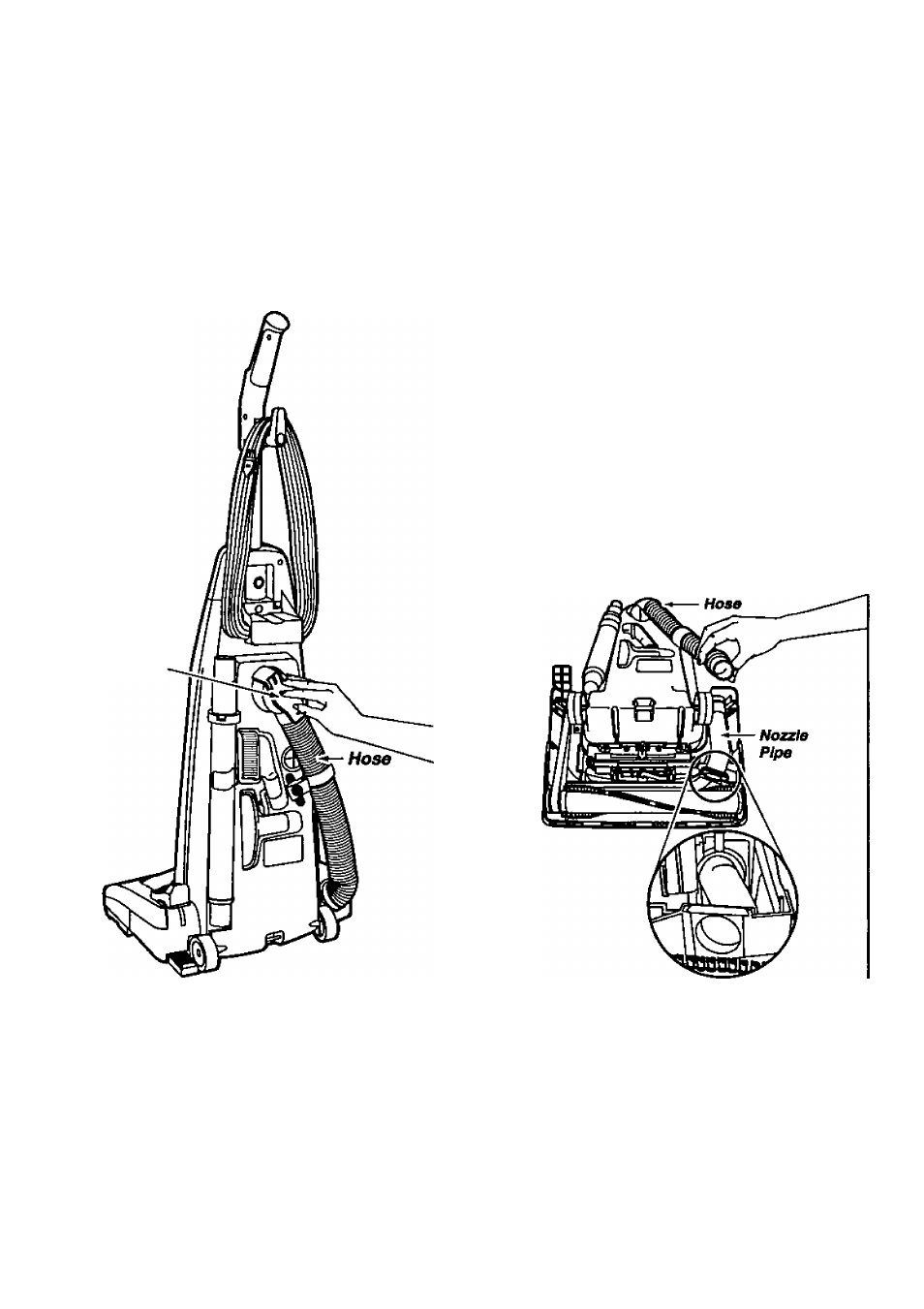

1. Unplug the power cord from the outlet
before checking the airflow passages. Pull
open the suction inlet cover and check for
ciogging in this area.
Cover
(Suction
Inlet)
2. Disconnect the hose from the nozzle pipe
and check the hose for clogging. Plug in the
vacuum cleaner and turn it on. Whiie running
the vacuum cleaner with tiie wand disconnect­
ed, stretch the hose in and out to remove the
clog.
3. If the clog still exists, turn the vacuum
cleaner OFF and unplug the power cord. Turn
the vacuum cleaner over, exposing the under­
side. Remove the lower plate. Remove the
nozzle pipe from the housing by lifting it
straight up. Inspect the hose end and clear it
of any obstructions. Reinstall the nozzle pipe
and lower plate. See the REMOVING/
INSTALLING THE LOWER PLATE section for
detailed instructions.
