Useful Information

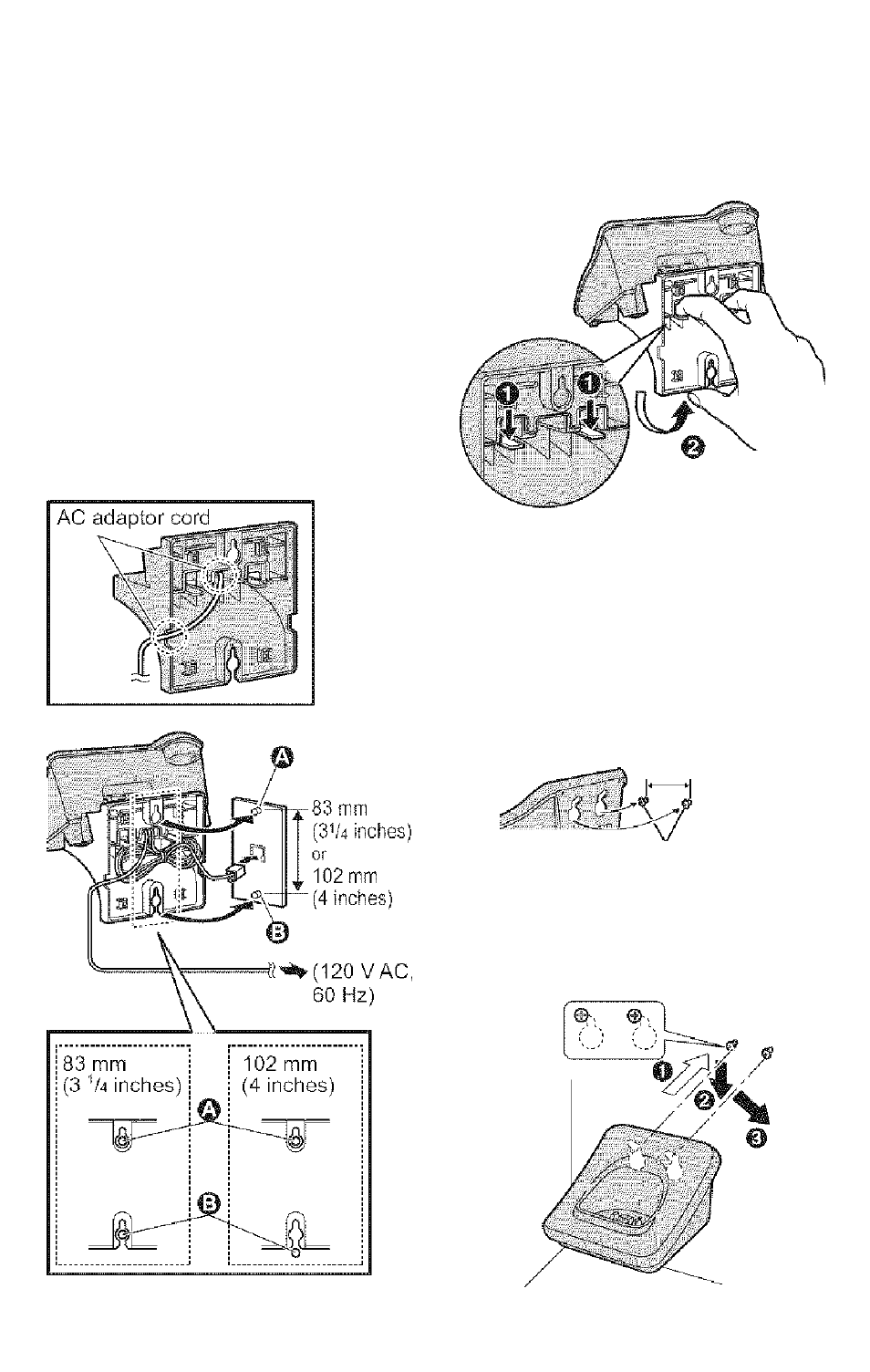

Connect the telephone line cord.
Mount the unit by inserting the
mounting pins into the round
openings on the adaptor (for pin ©,
use round cut out at the bottom of the
adaptor if you are using the 4 inches
phone plate), then sliding the unit
down to secure it.
Connect the AC adaptor to power
outlet (page 9).
• There are two common types of
wall phone plates. The distance
between
Q
and © may vary
depending on the size of the wall
phone plate installed.
To remove the wall mounting adaptor
While pushing down the release levers
(O),
remove the adaptor (©).
Charger
Available model:
KX-TG6072/KX-TG6073/KX-TG6074
1
Drive the screws (not included) into
the wall.
25.4 mm
(1 inch)
Screws
C%(120 V AC, 60 Hz)
2
Mount the charger (O), then slide it
down
(
0
)
and to the right (©) until it
is secure.
