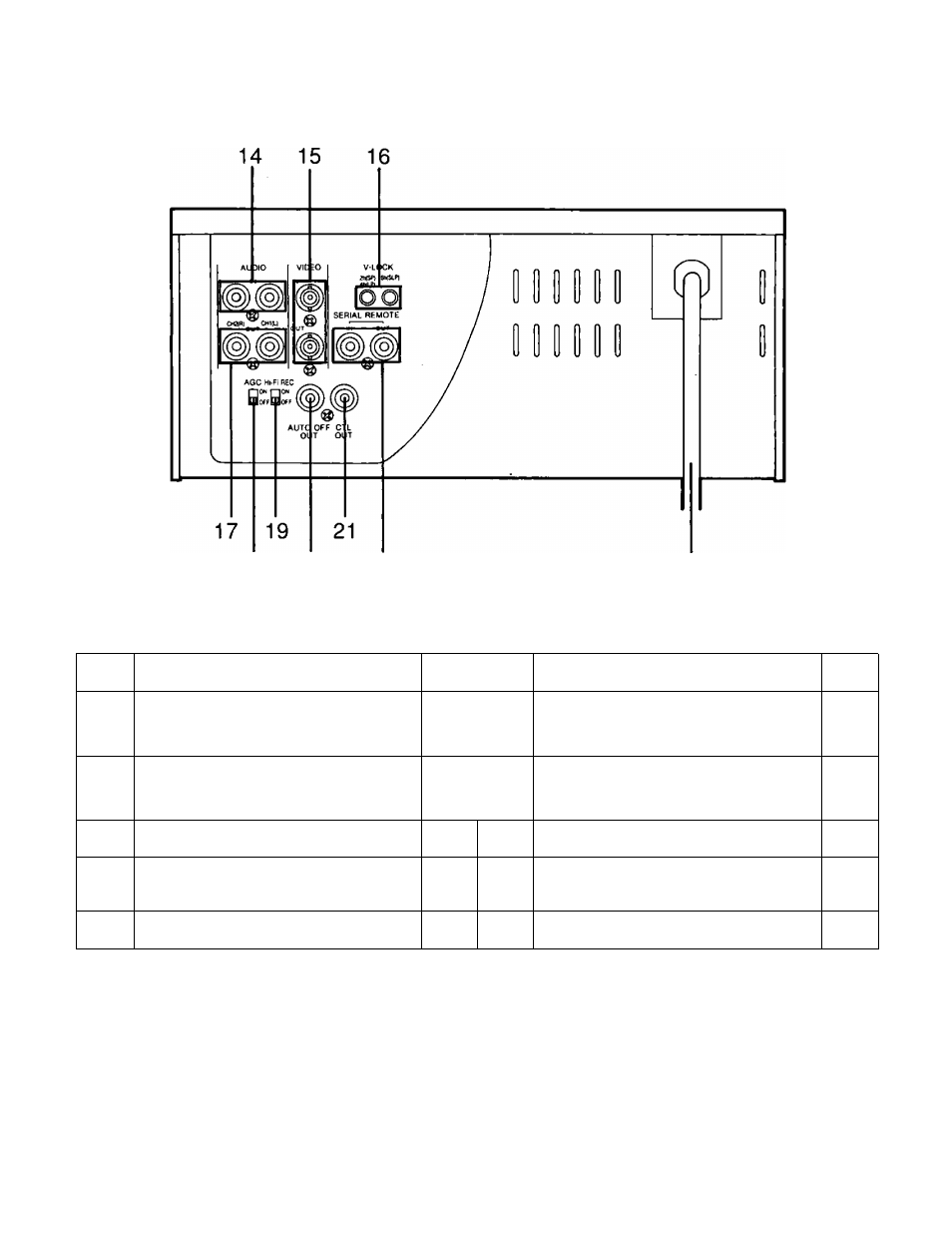

Rear
18 20 22 23
No. Name Page No. Name Page
14
Audio CH1(L)/CH2(R) IN Connectors
(PHONO)
6, 7,
11.
12 19 Hi-Fi REC Switch 7, 11
15 Video IN/OUT Connectors (BNC)
6. 7,
11,
12 20 AUTO OFF OUT Connector (PHONO) 11
16 V-Lock (2h*4h/6h) Controls 9 21 CTL OUT Connector (PHONO) 11
17
Audio CH1{L)/CH2{R) OUT Connectors
(PHONO)
6. 8,
11
22 Serial Remote IN/OUT Connectors 12
18 AGC S\«itch* — 23 Power Cord —
*When this switch is set to ON, the recording
level is adjusted automatically.
