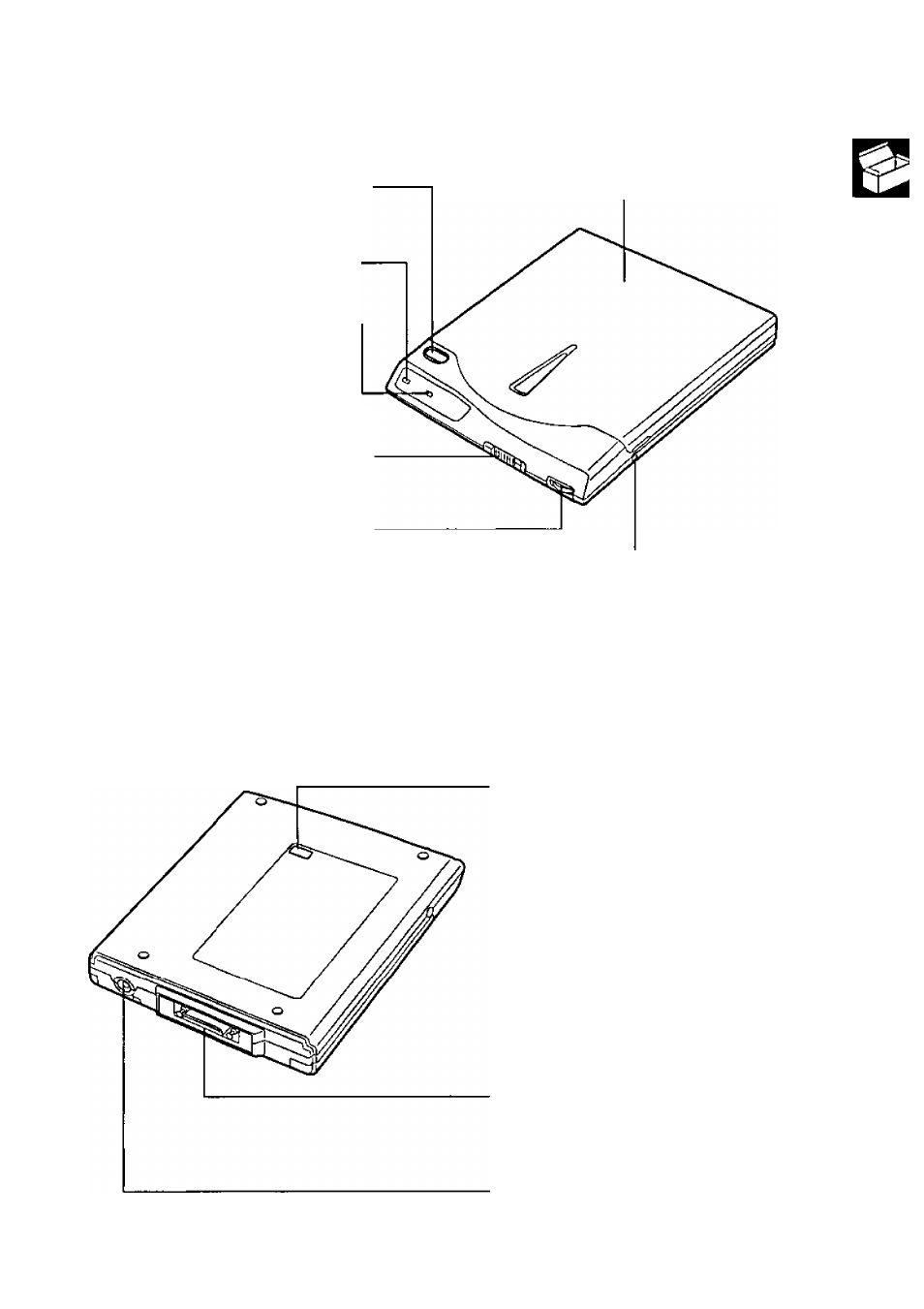

Part Names
Front / Right Side view
OPEN button [OPEN] (
rp
P. 14)
Opens the disc cover.
POWER indicator (green)
It lights when the player is on.
BUSY indicator (amber)------
It lights or blinks when data is
being transferred between the
player and the computer.
POWER switch [POWER 0/1 1
(ra-p. 15)
VOLUME control
Adjusts the volume of the headphones/
external speaker system (not supplied)
attached to the PHONES jack (0-10).
Disc cover (ra*p. 14)
PHONES jack [M ] {«-p. 16)
Connects your headphones/
external speaker system (not
supplied).
(D
o
Q>
C
5'
3
№
■D
0)
3.
z
0)
B
(D
V)
Rear/Bottom view
MODE switch
Sets the following modes on/off
(■®-p. 12, 13)
• AC ADAPTOR ONLY mode
• POWER SAVE mode
(Power from a PC Card Slot)
• VIBRATION DETECTIVE mode
Interface connector [l/F] (cs-P. 10)
Connects the supplied interface
cable.
DC IN jack
[DC IN 13V <$--(5-^ ] (^P. 11)
Connects the optional AC adaptor.
