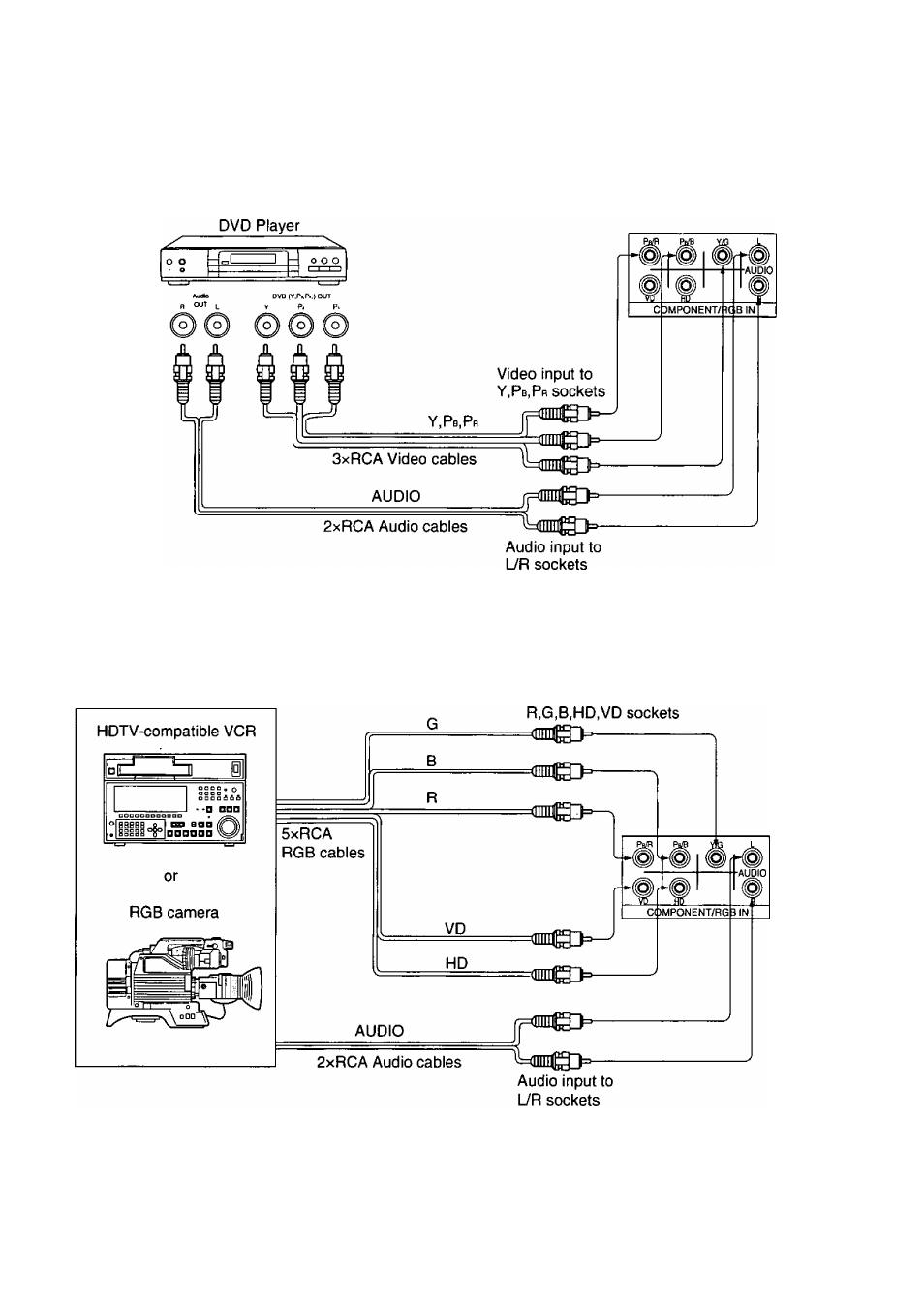

How to connect the COMPONENT/RGB Input Terminals
Component signals (Y, P
b
, P
r
) Connection
Note:
(1) Change the “COMPONENT/RGB IN” setting in the “Set up” menu to “Y/PB/PR”. {Refer to page 31.)
(2) Additional equipment and cables shown are not supplied with this set.
RGB signals (R, G, B, HD, VD) Connection
Example of input signal source
RGB input to
Note:
(1) Change the “COMPONENT/RGB IN” setting in the “Set up” menu to “RGB”. (Refer to page 31.)
(2) Additional equipment and cables shown are not supplied with this set.
