Connections

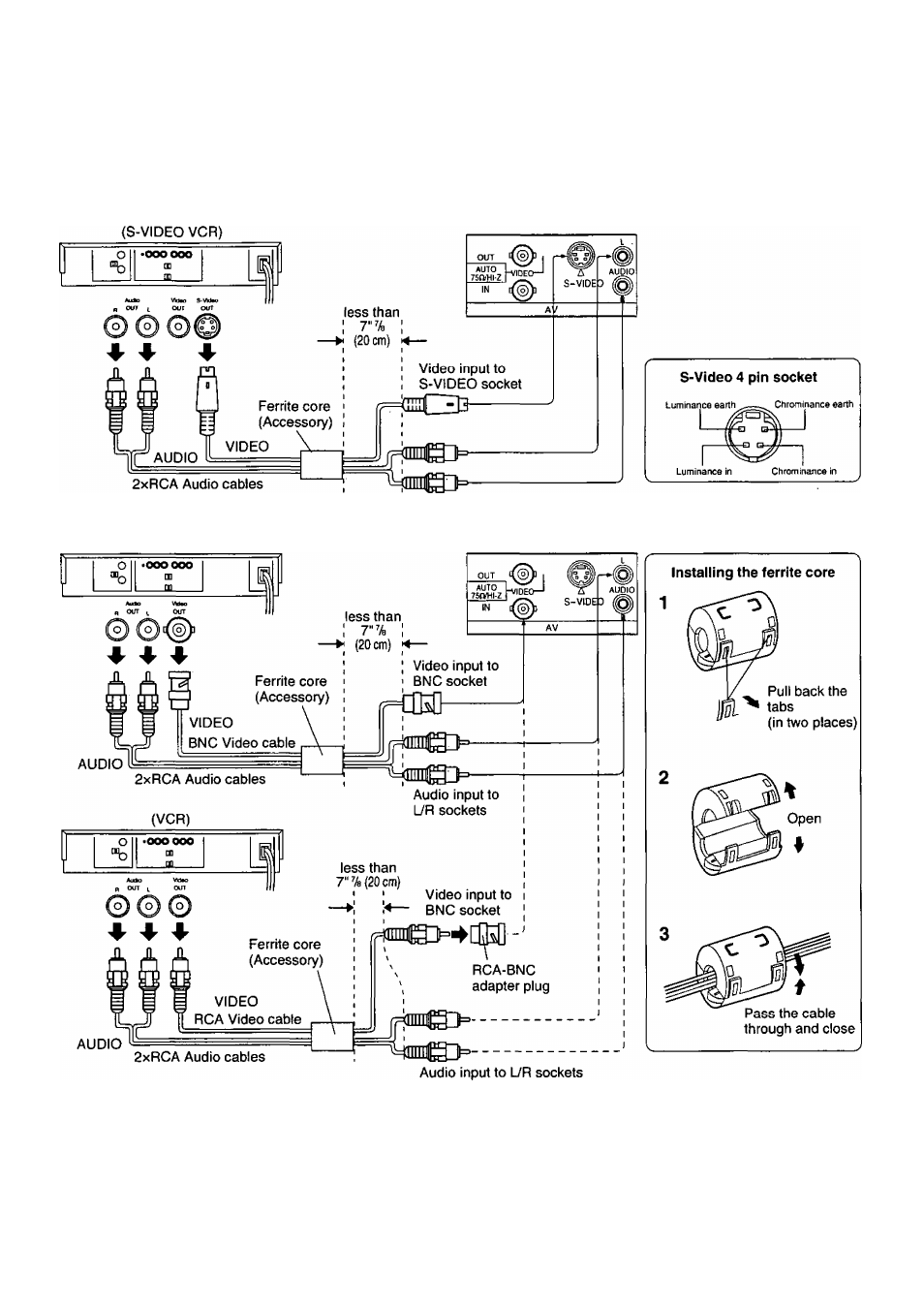

How to connect the AV Input Terminals
S-VIDEO Signal Connection
Audio input to UR sockets
Video Signal Connection
(VCR)
Note:
(1) Additional equipment and cables shown are not supplied with this set.
(2) When connecting video cables, priority is given to the S-Video cable when the S-Video input terminal and the video
input terminal are connected at the same time.
