nstallation

Dolby Center Channel Input Connection

Your TV can be configured to use the TV speakers as center channel speakers in Dolby*

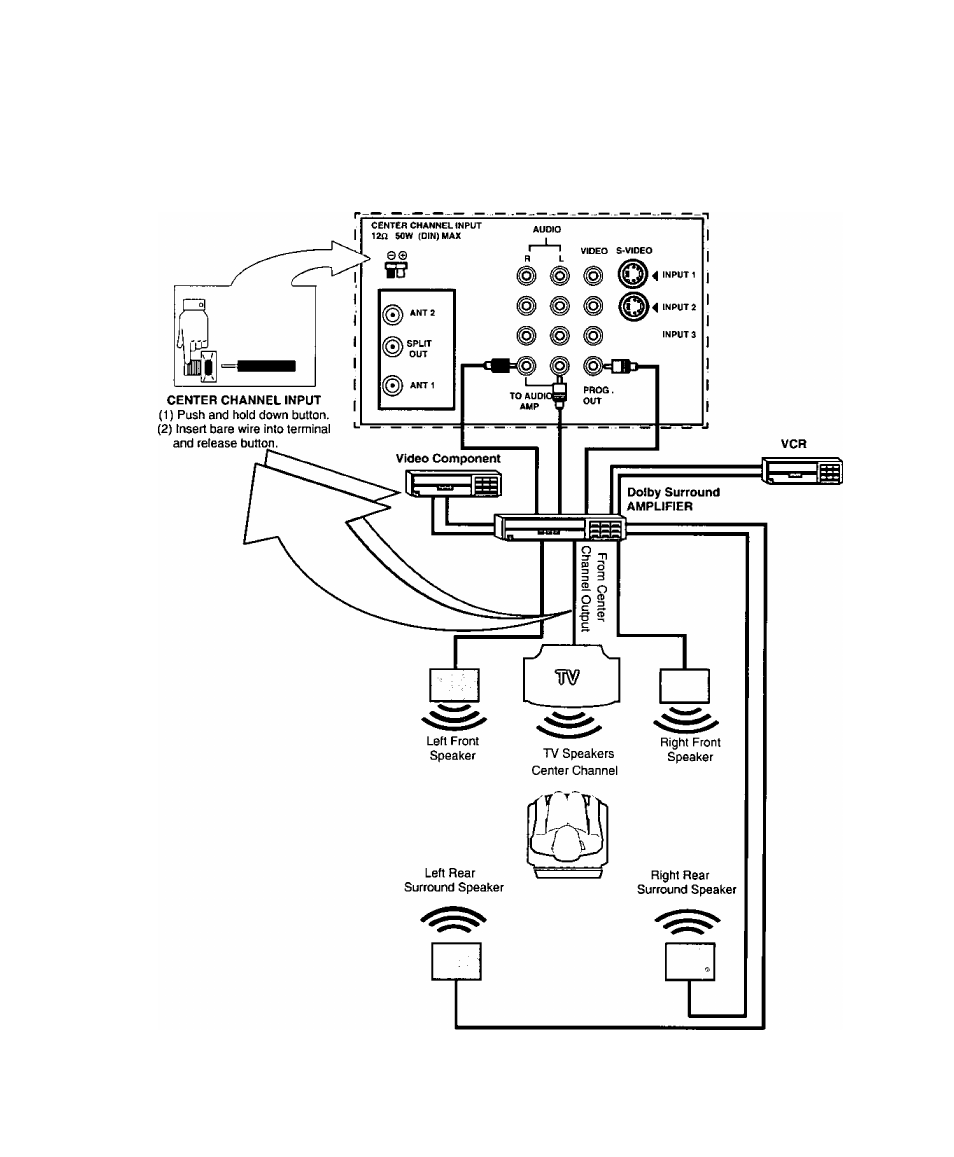

surround sound transmission. Connect a Dolby surround amplifier to CENTER

CHANNEL INPUT on the back of the TV as shown. DOLBY CENTER MODE & FIXED

AUDIO OUT must be selected in the AUDIO Roller Guide^“** menu under SPEAKERS.

TERMINALS ON BACK OF TV

"Dolby” and “Pro-logic" are the trademarks of Dolby Laboratories Licensing Corporation.

*U.S. Patent Pending
