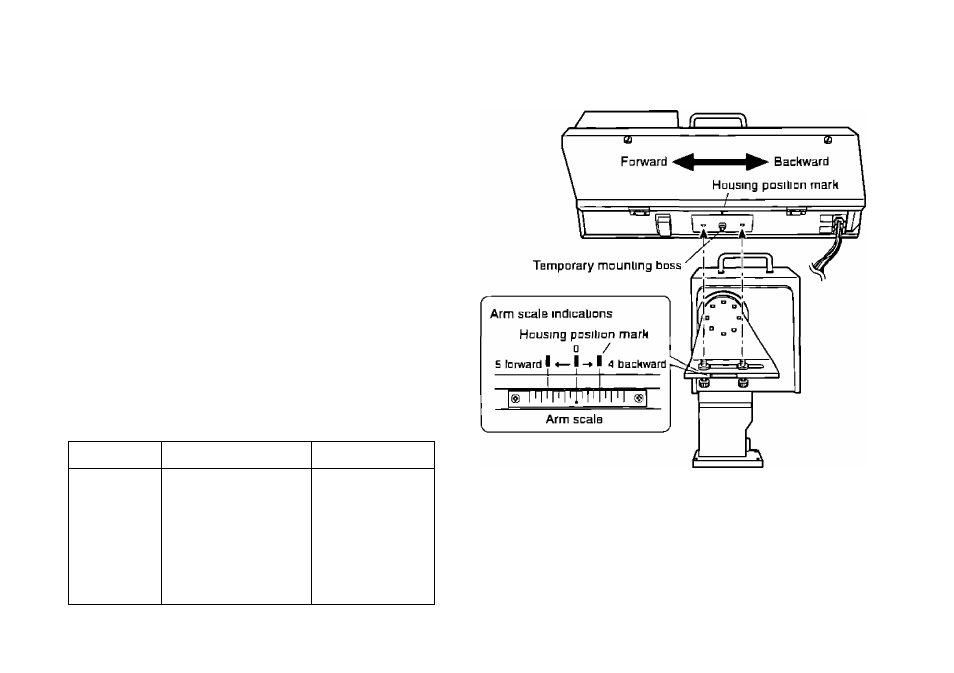

Mounting to Pan/Tilt Head
With the tilling arm held horizontal, fit the temporary
mounting boss on the bottom ol the housing into the
groove in the arm, and temporarily fasten the hous­
ing from below with the two housing mounting
bolts
Move the camera housing back and forth till it is
well balanced, then fasten it securely
As the stop position depends heavily on the bal­
ance of the camera housing, be sure to check the
accuracy of the preset stop positions after tilting
with the picture from the camera
Rough Yardstick for Good Balance (±5' from preset
stop position)
The position of good balance varies depending on
the combination of the camera and lenses
Set the arm scale in line with the housing position
mark (I), referring to the table below
Camera Housing AW-CH600
Camera Lens Housing Pasilion
AW-E300 AW-LZ14MD55 1 backward
AW-E600 AW-S14XBMD 0
AW-EGDO CANNON 14X 2 backward
AW-E600 CANNON 17X 5 backward
AW-EBOO AW-LZ17MD9 2 backward
AW-EBOO FUJINON 36X
(A3BX14, SBERD-E20) 7 backward
