Adjustments (Continued)
Adjustment menu
CT
Color Temp
: The white in the image can be adjusted.
1 ) Use the 3 or B keys to select 1: 9300 K + 8 MPCD, 2: 7500 K, 3: 6500 K. 4: 5000 K or 5: the
user’s preferred color.
2) If “ 5: user’s color ” is selected, “ H] " appears in the lower right of the On-Screen Display. Press
the front H] key to select, the User Color adjustment screen.
User
: It is possible to adjust the whiteness of the image to suit personal preference.
1 ) Select R (red), G (green), B (blue) with the d] key,
2) Adjust the color to match personal preference with 3 and B keys.
* As user colors cannot be recalled, take note of the set values beforehand.
^ Recall ;
To return to the initial settings (the settings at the time of factory shipment).
1) When the 0 key (Yes) is pressed, the settings are recalled and the menu screen returns.
(Recall = return to settings at time of factory shipment.)
2) When the d] key (No) is pressed, the menu screen returns without the settings being recalled
(the settings return to what they were immediately before the recall).
* If no operations are performed for about 30 seconds, the screen goes off without recall.
5© Video Level
! The video input signal level can be matched to the computer being used. Either
0.7 V or 1.0 V can be selected with the [U key.
Use 0.7 V under normaly.
?'£
Language
: The language of the On-Screen Display can be selected from among
French, English and Spanish.
Select with the 3 or B keys.
Ill OSD Position
: It is possible to adjust the position that the On-Screen panel is to be displayed.
The panel will rotate in a counter-clockwise direction every time the
[E
key is pressed.
^ Degauss
; Use this function to reduce the irregular colors in the image. The degaussing
operates for approximately five seconds after selection.
Use this function when irregular colors occur in the image after moving the monitor or the
changing the screen angle.
Note: Be informed that a frequent use of this function is not recommended. (Try to keep an
interval of about 30 minutes or so between operations.)
Q Signal !
This displays the input synchronization signal frequency.
Information on the input screen mode (resolution, horizontal and vertical synchronization
frequency) will be displayed on the display monitor.
There are occasions sometimes when some screen modes in use do not display any
resolution.
Direct display allows this to be displayed on screen by pressing the H] key even when the
menu screen is not displayed.

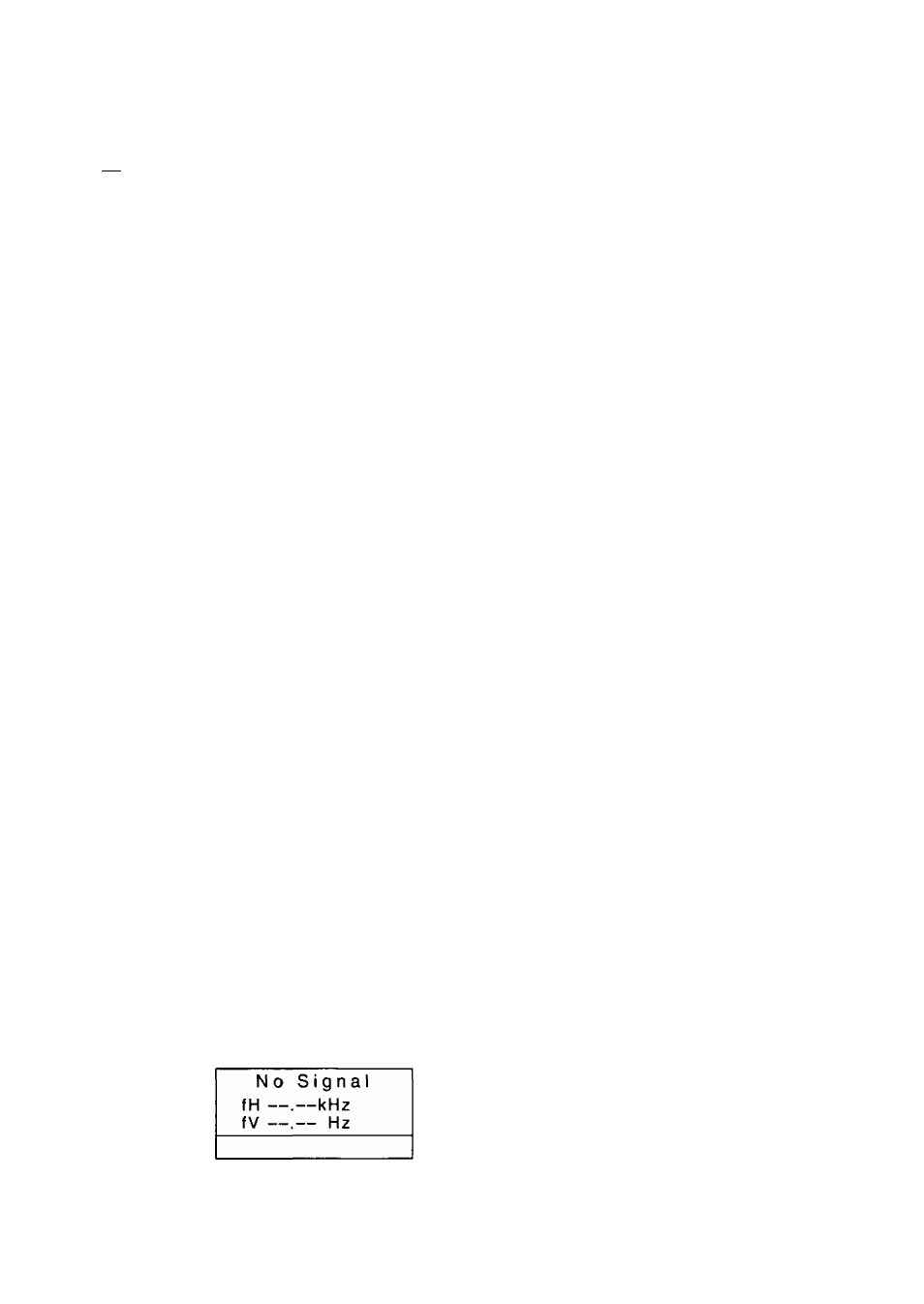

Self-Test menu (No Signal screen)
This display indicates that the monitor is operating normally. When one of the following conditions
occurs, press one of the 4 operation keys to call the appropriate display.
E r r o r
fH 74.9kHz
fV 60.0 Hz
No Signal (The computer is not
connected or the mains power to the
computer is disconnected).
The horizontal or vertical sync. Signal are
outside of the permitted range (the value
of the horizontal sync, signal will be displayed
in red and the value of the vertical sync, signal
will be displayed in white).
11
