Audio transmission is similar to video transmission. Try to avoid interference, dry joint, loose
contact and it shall be away from high tension current.

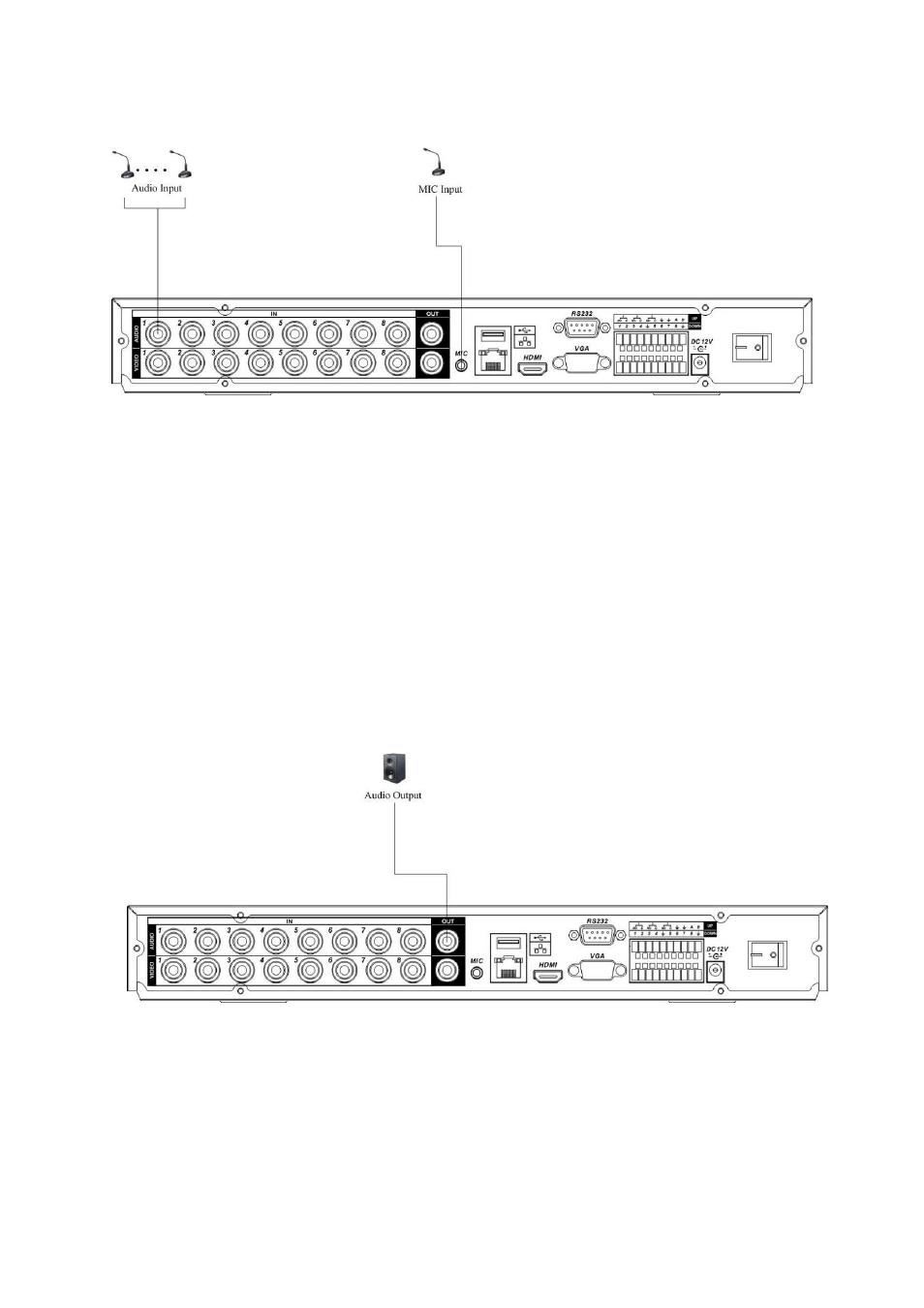

Figure 3-3
3.6.2 Audio Output
The audio output signal parameter is usually over 200mv 1KΩ (BNC). It can directly connect to
low impedance earphone, active sound box or amplifier-drive audio output device.
If the sound box and the pick-up cannot be separated spatially, it is easy to arouse squeaking. In
this case you can adopt the following measures:
z
Use better sound pick-up with better directing property.
z
Reduce the volume of the sound box.
z
Using more sound-absorbing materials in decoration can reduce voice echo and improve
acoustics environment.
z
Adjust the layout to reduce happening of the squeaking.
Please refer to Figure 3-4.
Figure 3-4
3.7 Alarm Input and Output Connection
