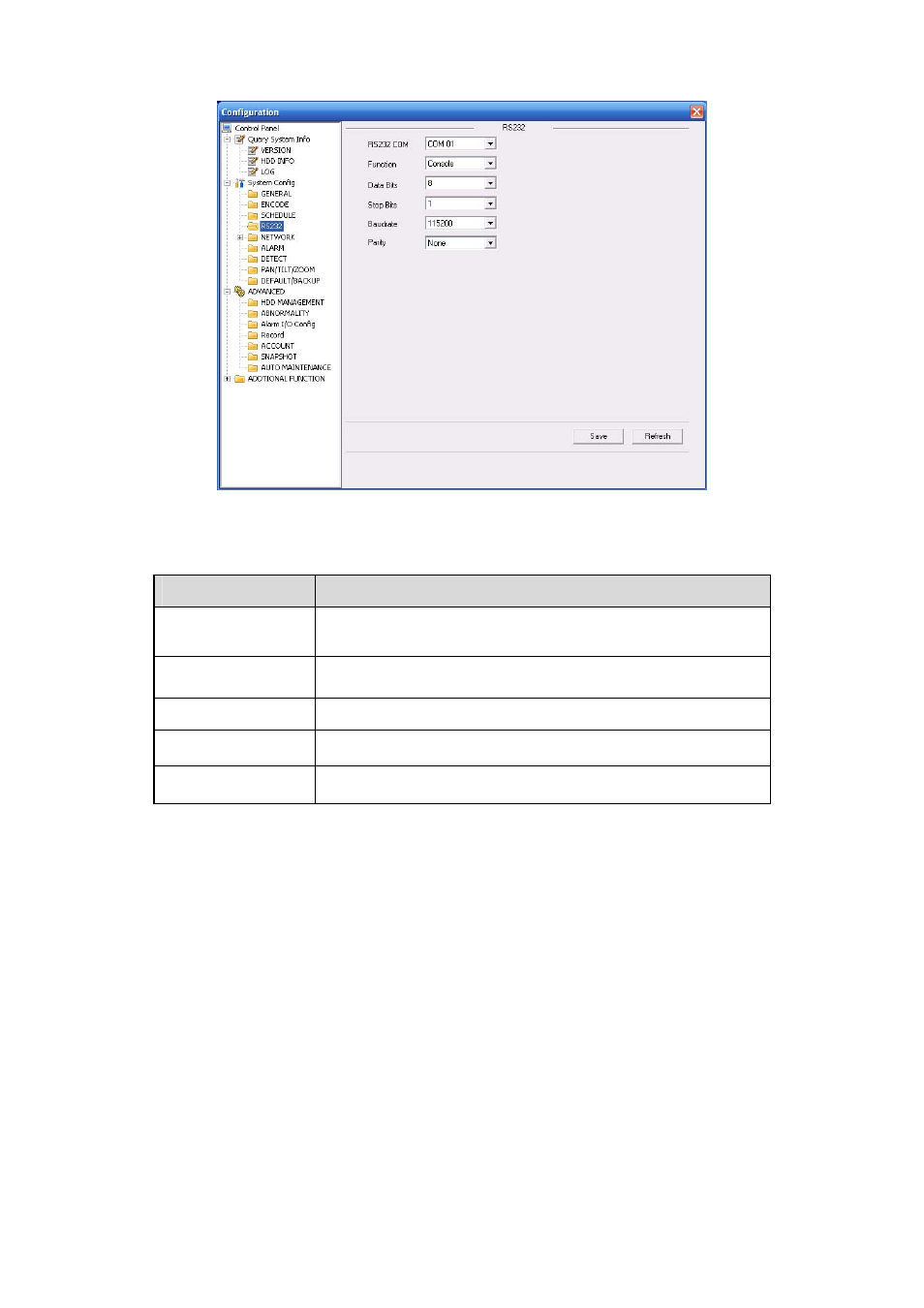

Figure 7-31

Please refer to the following sheet for detailed information.

Parameter

Function

RS232 Select

the

corresponding COM control protocol.

Data Bit

The value ranges from 5 to 8.

Stop Bit

There are three options: 1/2.

Baud Bit

You can select corresponding baud bit here.

Parity

There are five options: none/odd/even/space/mark.

System default setup is:
z

Function:

Console.

z

Data bit: 8

z

Stop bit: 1

z

Baud bit: 115200

z

Parity:

None.

7.3.2.5 Network

Network interface is shown as in

X462H462H462H

Figure 7-32
