CANOGA PERKINS 2361 T1 Modem - Manual (Page 37)

The EdgeAccess Universal Chassis System
2361 Modem Users Manual 4-9
1. From the Main Menu, type "1"
and press Enter, to open the
System Configuration screen.
2. Type "4" to open the Alarm
Output Configuration screen.
3. The Alarm Output
Configuration screen appears.
There are nine configurable
alarm states, listed by number
(See Table 4).
4. To configure a particular alarm,
begin by typing its number in
the list and pressing Enter.
5. Use the space bar to toggle
through alarm choices: Major,
Minor or Off.
6. Press Enter to confirm the
alarm configuration choice.

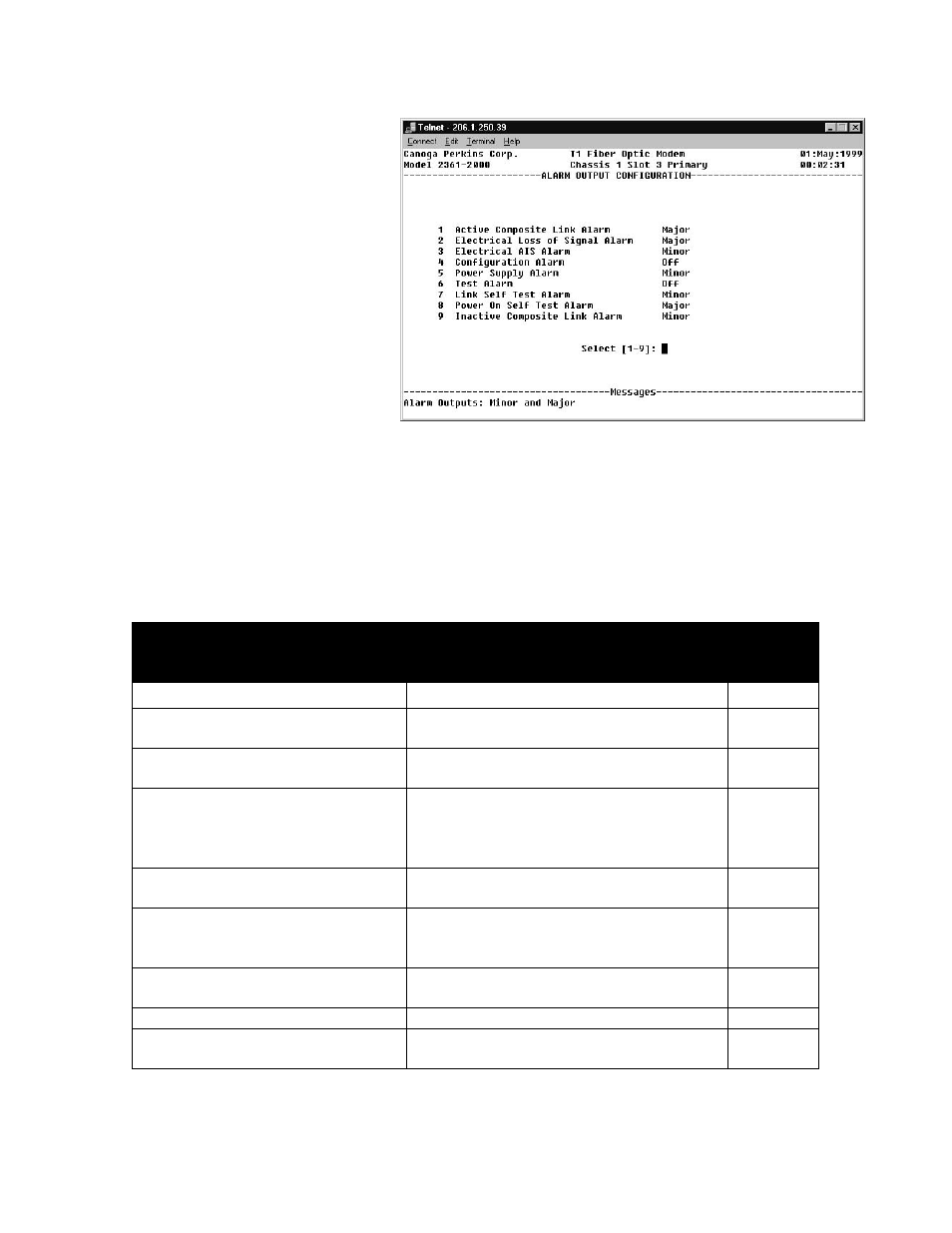

Figure 28. The Alarm Output Configuration Screen
4.4.4 Alarm Functions and Default Settings
The table below describes each alarm's function and its factory default setting.
Table 4: Alarm Output Configuration Option Definition
Alarm Name Function
Default
Factory
Setting
1 Active Composite Link Alarm Enables or disables alarms 2 through 9 Major
2 Electrical LOS
Loss of signal received from attached
equipment
Major
3 Electrical AIS Alarm
"All 1's" signal pattern received from
attached equipment
Minor
4 Configuration Alarm
Incompatibility between local and
remote modem, or between main
modem module and the LIMs attached
to it
OFF
5 Power Supply Alarm
Failure of power supply in the remote
chassis
Minor
6 Test Alarm
Failure of Bit Error Rate Test (BERT) or
failure in the continuous self-test
operation
OFF
7 Link Self Test Alarm
Failure of fiber between Local and
Remote units
Minor
8 Power On Self Test Alarm Failure of Power-On self-test Major
9 Inactive Composite Link
Alarm In a redundant configuration, failure of
the redundant or inactive link
Minor
